IO-Link master with EtherCAT interface - AL1430
IFM AL1430 - IO-Link master with EtherCAT interface - Material: housing: PA orange; Socket: brass nickel-plated; Weight: 312.6; Storage Temperature: -25...85.
The IFM AL1430 is part of the IO-Link master with EtherCAT interface range in our industrial catalog. The manufacturer's published data for this part number specifies Material: housing: PA orange; Socket: brass nickel-plated and Weight: 312.6.
Daisy-chain power supply with standardized L-coded M12 connection technology; Configurable current limitation for each port to ensure safe operation; Voltage and current measurement per port for energy monitoring; Connection of actuators up to 2 A; Robust housing for use in harsh industrial environments
Published specifications for this part include Storage Temperature: -25...85; Type of mounting: Backplane mounting; Ambient temperature: -25...60; Protocol: EtherCAT; Connector: 2 x M12; coding: D; Contacts: 4; sealing: FKM; Protection class: III; Dimensions: 152 x 59.3 x 38.4; Number of digital inputs: 4; (IO-Link Port Class B: 4 x 1); Number of digital outputs: 8; (IO-Link Port Class B: 4 x 2); Application: I/O modules for field applications; Pollution degree: 2; Product type: IO-Link master with EtherCAT interface. The complete technical table is shown in the Specifications tab on this page.
| Additional voltage supply | 20...30 DC; (UA) |
|---|---|
| Ambient temperature | -25...60 |
| Application | I/O modules for field applications |
| Communication interface | Ethernet; IO-Link |
| Connector | 2 x M12; coding: D; Contacts: 4; sealing: FKM |
| Current consumption | 300...3900; (US) |
| Current rating per port | 2; (adjustable: 0...2; Factory setting: 2) |
| Daisy-chain function | voltage supply; fieldbus interface |
| Digital inputs protected against short circuits | yes |
| Dimensions | 152 x 59.3 x 38.4 |
| Housing | rectangular |
| IO-Link revision | 1.1 |
| Key Features | Daisy-chain power supply with standardized L-coded M12 connection technology; Configurable current limitation for each port to ensure safe operation; Voltage and current measurement per port for energy monitoring; Connection of actuators up to 2 A; Robust housing for use in harsh industrial environments |
| Material | housing: PA orange; Socket: brass nickel-plated |
| Max. current load per output | 2000 |
| Max. current load total | 8 |
| Max. relative air humidity | 90 |
| Number of digital inputs | 4; (IO-Link Port Class B: 4 x 1) |
| Number of digital outputs | 8; (IO-Link Port Class B: 4 x 2) |
| Number of inputs and outputs | Number of digital inputs: 4; Number of digital outputs: 8 |
| Number of ports class B | 4 |
| Operating voltage | 20...30 DC; (US ; to PELV) |
| Pack quantity | 1 pcs. |
| Pollution degree | 2 |
| Product type | IO-Link master with EtherCAT interface |
| Protection | IP 65; IP 66; IP 67 |
| Protection class | III |
| Protection rating (NEMA 250) | 6P |
| Protocol | EtherCAT |
| Sealing material | FKM |
| Short-circuit-proof | yes |
| Specification Summary | IO-Link master with EtherCAT interface; Ethernet; IO-Link; EtherCAT; 152 x 59.3 x 38.4 mm; Number of digital inputs 4; Number of digital outputs 8; Daisy-chain function voltage supply; fieldbus interface; IP 65; IP 66; IP 67 |
| Storage Temperature | -25...85 |
| Switching level high | 11...30 |
| Switching level low | 0...5 |
| Total number of inputs and outputs | 8; (configurable) |
| Transmission rate | 100 MBit/s |
| Transmission standard | 100Base-TX |
| Transmission type | COM1 (4,8 kBaud); COM2 (38,4 kBaud); COM3 (230,4 kBaud) |
| Type of mounting | Backplane mounting |
| Weight | 312.6 |
Frequently Asked Questions
How do I get pricing for AL1430?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the AL1430?
AL1430 is a IFM part. KKM Solutions sources IFM components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of AL1430?
Key specifications include Additional voltage supply: 20...30 DC; (UA); Ambient temperature: -25...60; Application: I/O modules for field applications; Communication interface: Ethernet; IO-Link. The full specification table on this page lists every published attribute for this part.
How quickly can AL1430 ship?
In-stock items are dispatched the same business day for orders placed by 11 AM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products

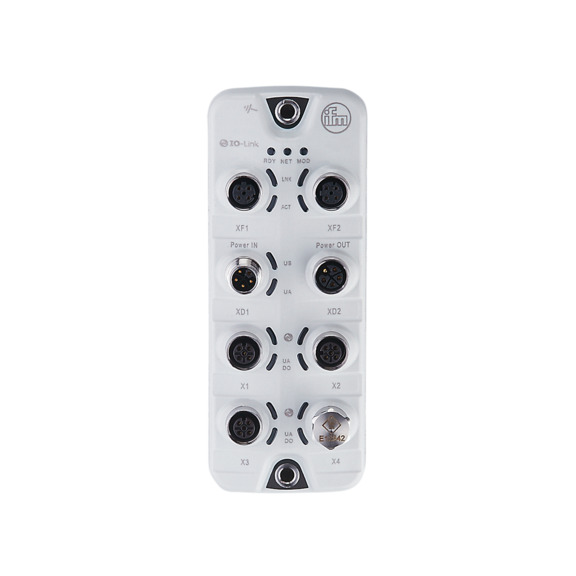

IFM IO-Link master with EtherCAT interface - AL1431

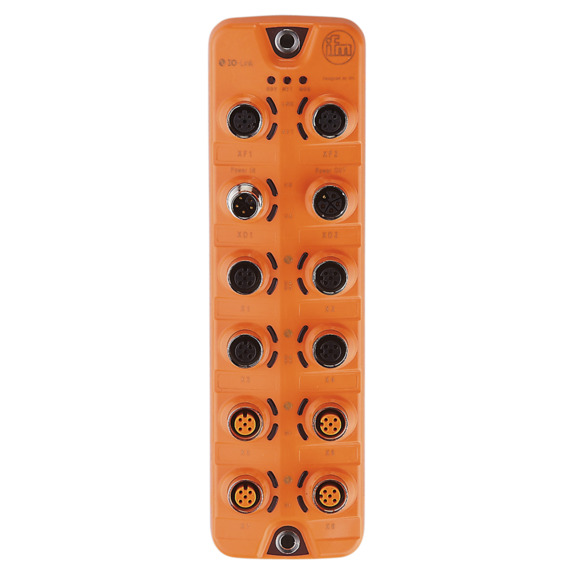

IFM IO-Link master with EtherCAT interface - AL1432

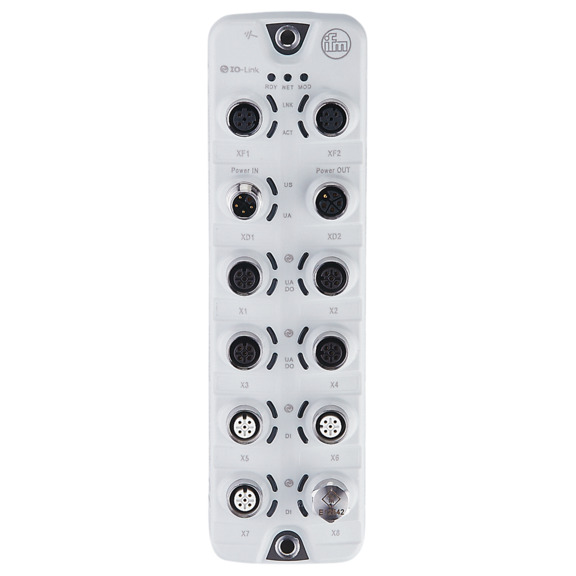

IFM IO-Link master with EtherCAT interface - AL1433

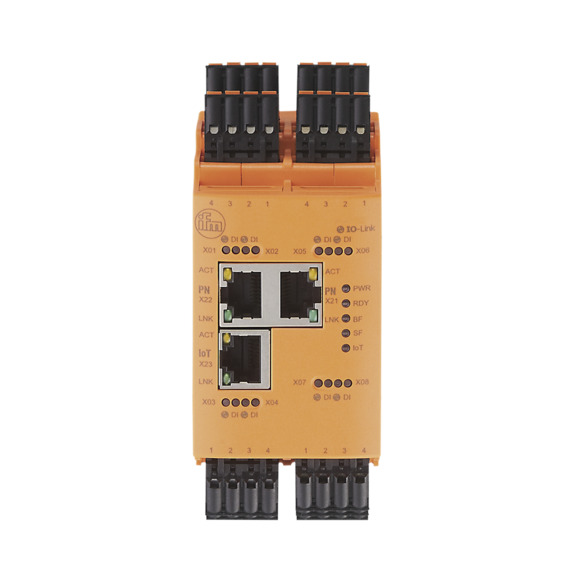

IFM IO-Link master with EtherCAT interface - AL1930
