AC5211 IFM AS-Interface ClassicLine module with quick mounting technology
KKM Solutions is an independent parts distributor, not an authorized IFM dealer — how we source.
IFM AC5211 - AS-Interface ClassicLine module with quick mounting technology - Material: PA; Piercing contacts: CuSn6 nickel-plated and tin-plated; Type of mounting: AS-i flat cable connection; Mounting on DIN rail; (TH35 (EN 60715)).
Overview
Part number AC5211 from IFM, listed in Fieldbus Modules & Gateways. Specifications on file: Actuator supply outputs AUX; Additional voltage supply 15...30 DC; (AUX); Ambient temperature -25...70; Application field installation. KKM Solutions quotes this part with pricing and availability confirmed per order.
The IFM AC5211 is part of the AS-Interface ClassicLine module with quick mounting technology range in our industrial catalog. The manufacturer's published data for this part number specifies Material: PA; Piercing contacts: CuSn6 nickel-plated and tin-plated.
Easy toolless installation; Three selectable directions of the flat cable mounting; Clearly visible powerful LEDs for displaying operation, switching status and error; High protection rating for the requirements of harsh industrial environments; Robust M12 connectors for connecting sensors and actuators
Key manufacturer data on file for this item includes Type of mounting: AS-i flat cable connection; Mounting on DIN rail; (TH35 (EN 60715)); Ambient temperature: -25...70; Connector: M12; coding: A; Contacts: 5; Dimensions: 103 x 45 x 44.7; Number of digital inputs: 2; Number of digital outputs: 2; Application: field installation; Product type: AS-Interface ClassicLine module with quick mounting technology; Short-circuit-proof: yes; Operating voltage: 26.5...31.6 DC; (cULus - Class 2 source required); Design: housing for DIN rail mounting; Housing: rectangular. The complete technical table is shown in the Specifications tab on this page.
Specifications
| Actuator supply outputs | AUX |
|---|---|
| Additional voltage supply | 15...30 DC; (AUX) |
| Ambient temperature | -25...70 |
| Application | field installation |
| AS-i addressing | Addressing socket |
| AS-i I/O configuration | 3 |
| AS-i ID code | 0.E |
| AS-i master profile | M2; M3; M4 |
| AS-i profile | S-3.0.E |
| AS-i version | 2.11; 3.0 |
| Circuit | PNP |
| Connector | M12; coding: A; Contacts: 5 |
| Design | housing for DIN rail mounting |
| Digital inputs protected against short circuits | yes |
| Dimensions | 103 x 45 x 44.7 |
| Electrically separated | yes |
| Extended addressing mode | no |
| Housing | rectangular |
| Input circuit of digital inputs | PNP |
| Input current High | 6...10 |
| Input current low | 0...2 |
| Integrated watchdog | yes |
| Key Features | Easy toolless installation; Three selectable directions of the flat cable mounting; Clearly visible powerful LEDs for displaying operation, switching status and error; High protection rating for the requirements of harsh industrial environments; Robust M12 connectors for connecting sensors and actuators |
| Material | PA; Piercing contacts: CuSn6 nickel-plated and tin-plated |
| Max. current consumption from additional supply | 4000 |
| Max. current consumption from AS-i | 150 |
| Max. current load outputs total | 4 |
| Max. current load per output | 2000; (utilization category DC-13 (control of electromagnets): 40 W (IEC 60947-5-1)) |
| Max. total current rating of inputs | 100 |
| Module connection | Flat cable |
| MTTF | 188 |
| Number of digital inputs | 2 |
| Number of digital outputs | 2 |
| Number of inputs and outputs | Number of digital inputs: 2; Number of digital outputs: 2 |
| Operating voltage | 26.5...31.6 DC; (cULus - Class 2 source required) |
| Pack quantity | 1 pcs. |
| Product type | AS-Interface ClassicLine module with quick mounting technology |
| Protection | IP 67 |
| quick mounting technology for AS-i flat cable | ; three selectable directions |
| Sensor supply of the inputs | AS-i |
| Short-circuit-proof | yes |
| Specification Summary | AS-i input/output module; 103 x 45 x 44.7 mm; ClassicLine 2DI 2DO-Y IP67; Connector; IP 67 |
| Switching level high | > 11 |
| Type of mounting | AS-i flat cable connection; Mounting on DIN rail; (TH35 (EN 60715)) |
| Voltage range DC | 15...30; (to PELV; via flat cable) |
| Voltage supply | 18...30; (via flat cable) |
Product details
| Manufacturer | IFM |
|---|---|
| Manufacturer part number | AC5211 |
| Product category | Fieldbus Modules & Gateways |
| Published specifications | 46 attributes listed |
| Related part numbers | 17 other part numbers in this family |
Request a quote for this part
Email orderdesk@kkmsolutions.com or call (825) 454-5367 for pricing and availability.
Frequently Asked Questions
How do I get pricing for AC5211?
This part is quoted on request, so no price is listed for it here. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the AC5211?
AC5211 is made by IFM and is listed in our Fieldbus Modules & Gateways category. KKM Solutions is an independent distributor, not an authorized IFM dealer: we source the exact IFM part number AC5211, and the quote confirms condition and lead time before you order.
Is the AC5211 new and genuine?
Parts we supply are new and genuine unless the quote expressly states otherwise. Where a part is new-old-stock, from excess inventory, refurbished or open-box, the quote says so before you approve it.
What warranty comes with the AC5211, and can I return it?
Parts we supply are warranted against manufacturing defects for 1 year from the date of delivery; where the manufacturer's own warranty is longer, the manufacturer's warranty applies. The warranty covers repair, replacement, or credit of the defective part and does not cover normal wear items, misapplication, improper installation, or consequential damages. Contact us within 30 days of delivery before returning anything — all returns need a return authorization from the order desk.
What is the lifecycle status of AC5211?
No published lifecycle status is on file for AC5211. IFM lists whether a catalog number is current, superseded or end-of-life on its own product page, and our order desk confirms the status with the manufacturer at quote time, before you commit. Send the part number through the quote form on this page.
What are the key specifications of AC5211?
Key specifications include Actuator supply outputs: AUX; Additional voltage supply: 15...30 DC; (AUX); Ambient temperature: -25...70; Application: field installation. The full specification table on this page lists every published attribute for this part.
What voltage does AC5211 use?
Per the published specification for AC5211: Operating voltage: 26.5...31.6 DC; (cULus - Class 2 source required); Voltage range DC: 15...30; (to PELV; via flat cable). Confirm against the full specification table on this page, or ask our order desk to verify it with the manufacturer at quote time.
What is the current rating of AC5211?
Per the published specification for AC5211: Max. total current rating of inputs: 100. Confirm against the full specification table on this page, or ask our order desk to verify it with the manufacturer at quote time.
What material is AC5211 made of?
Per the published specification for AC5211: Material: PA; Piercing contacts: CuSn6 nickel-plated and tin-plated. Confirm against the full specification table on this page, or ask our order desk to verify it with the manufacturer at quote time.
How quickly can AC5211 ship?
Lead time for AC5211 is quoted per order and confirmed on your quote, which our order desk sends within 1 business day. For a line-down emergency, call the 24/7 order desk at (825) 454-5367.
Variants & Related Part Numbers
Other IFM part numbers in this family:
Frequently Searched IFM Part Numbers
Related Products
IFM AS-Interface ClassicLine module with quick mounting technology - AC5210
IFM AS-Interface ClassicLine module with quick mounting technology - AC5214
IFM AS-Interface ClassicLine module with quick mounting technology - AC5205
IFM AS-Interface ClassicLine module with quick mounting technology - AC5215

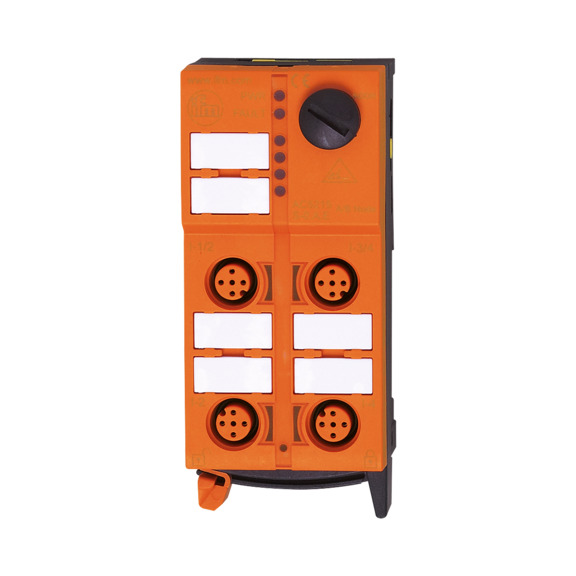

IFM AS-Interface ClassicLine module with quick mounting technology - AC5202
