IDEC HW4L-M1F10QD-A-24V

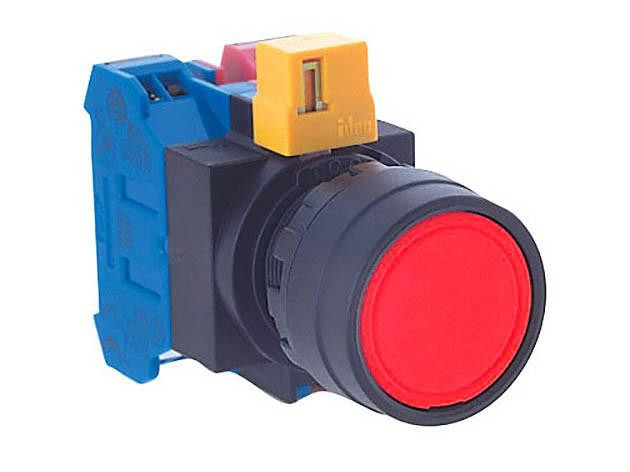

The HW series from IDEC is a 22mm line of switches, pushbuttons and pilot lights. Space saving with reduced contact block depth IP20 finger-safe protection High voltage LED for illuminated pushbuttons Can be ordered assembled or in components Pushbuttons, e-stops and switches have contact ratings of 10A, 600V IP65 and UL50 in most cases (except illumuniated selector switches), dual pushbuttons are IP40 Series information: HWxB: Non-illluminated HWxL: Illuminated HW1 - Round black bezel HW2 - Square black bezel HW4 - Round metal bezel Assembled units: Available in momentary (M) or Maintained (A) Contact configurations: 10: 1NO 01: 1NC 11: 1NO/1NC 20: 2NO 02: 2NC 22: 2NO/2NC Features Include: Finger safe (IP20) screw terminals standard Accept ring, fork or ferrule terminals and bare wires All E-Stops meet EN418 (IEC compliant, positive action) UL listed, CSA certified, TUV approved, and CE marked Super bright incandescent or LED illumination UL Type 4X, IP65 600V/10A contacts with a wide operating range from 5mA at 3V AC/DC to 10A at 120V AC Supplied by KKM Solutions as part of our pushbuttons range. Contact orderdesk@kkmsolutions.com for pricing and availability.
