Hager ESC325 Contactor 25A 3NO 230V AC DIN Rail
Hager ESC325 — contactor: contact configuration 3 NO, 0 NC, control voltage 230 V AC, 3 poles.
The Hager ESC325 is a contactor. It is supplied as a installation contactor (installationsschütz). Published specifications for this part number include 3 poles, rated 25 A, contact configuration 3 NO, 0 NC, -10 to 50°C operating range, control voltage 230 V AC. Further catalogue data covers dimensions (h x w x d), electrical endurance, flexible conductor cross-section, frequency, impulse withstand voltage (uimp), insulation voltage (ui), mechanical endurance, nominal tightening torque. KKM Solutions sources Hager components to order. Request a quote from KKM Solutions for current pricing, lead time and availability.
| Contact configuration | 3 NO, 0 NC |
|---|---|
| Control Voltage | 230 V AC |
| Dimensions (H x W x D) | 83 x 35.75 x 60 mm |
| Electrical endurance | 30,000 switching cycles |
| Flexible conductor cross-section | 1 - 6 mm² |
| Frequency | 50 Hz |
| Impulse withstand voltage (Uimp) | 4000 V |
| Insulation voltage (Ui) | 440 V |
| Mechanical endurance | 100,000 switching cycles |
| Nominal tightening torque | 1.20 Nm |
| Number of modules | 2 |
| Number of poles | 3 |
| Operating Temperature | -10 to 50°C |
| Product type | Installation contactor (Installationsschütz) |
| Pull-in consumption | 21 VA |
| Rated current | 25 A |
| Rated operational voltage (Ue) | 400 V |
| Rigid conductor cross-section | 1 - 10 mm² |
| RoHS Compliant | Yes |
| Source stock status | In stock at source |
| Storage/transport temperature | -40 to 80°C |
| Total power dissipation at rated current | 6 W |
| Usage category | AC-7a / AC-7b |
Request a quote for this part
Email [email protected] or call (825) 454-5367 for pricing and availability.
Frequently Asked Questions
How much does ESC325 cost?
ESC325 is listed at CA$42.06 (CAD) and can be ordered directly from this page with Add to Cart. That figure is a reference price and can change: your card is authorized at checkout and charged only once our order desk confirms the part and final price, and we email you first if anything has moved. Larger quantities or custom terms — email [email protected] for a volume quote.
Who manufactures the ESC325?
ESC325 is a Hager part. KKM Solutions sources Hager components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
Is ESC325 discontinued, and can I still get one?
KKM Solutions does not publish a manufacturer lifecycle status for ESC325 — check Hager's own product page for whether it is current, superseded, or end-of-life. It does not change what we can do: we source current-production, superseded and long-obsolete parts the same way, and where a part is genuinely unavailable we identify a form-fit-function equivalent. Send the part number through the quote form on this page, or use our obsolete part lookup at https://kkmsolutions.com/tools/obsolete-part-lookup/.
What are the key specifications of ESC325?
Key specifications include Contact configuration: 3 NO, 0 NC; Control Voltage: 230 V AC; Dimensions (H x W x D): 83 x 35.75 x 60 mm; Electrical endurance: 30,000 switching cycles. The full specification table on this page lists every published attribute for this part.
How quickly can ESC325 ship?
In-stock items are dispatched the same business day for orders placed by 11 AM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products
Hager Hager ESC263 ESC Contactor 2P 63 A 230V AC…
Hager Hager ESC340 ESC Contactor 3P 40 A 230V AC…
Hager Hager ESC226 Contactor 25A 2NC 230V AC DIN Rail

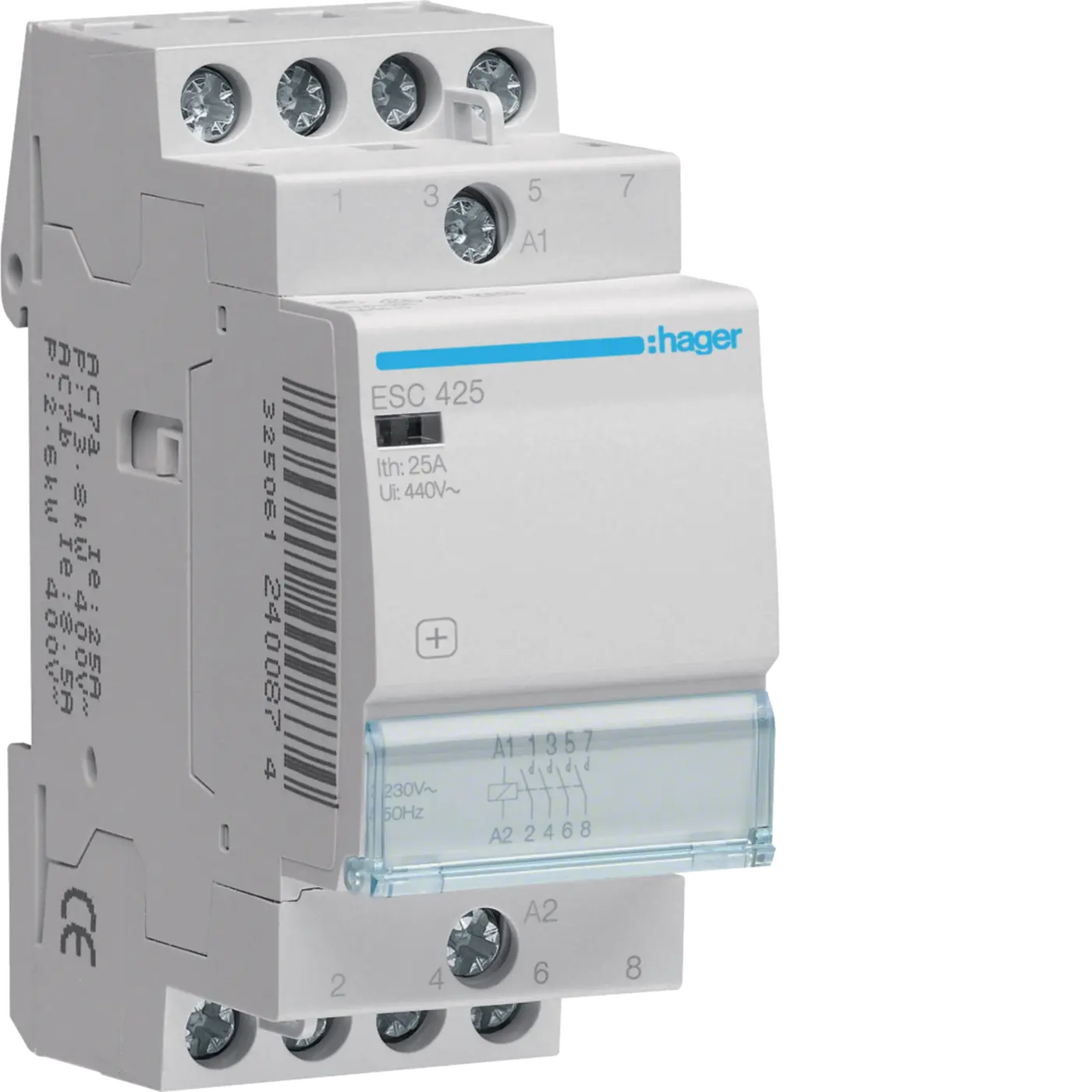

Hager Hager ESC425 ESC Contactor 4P 25 A 230V AC…

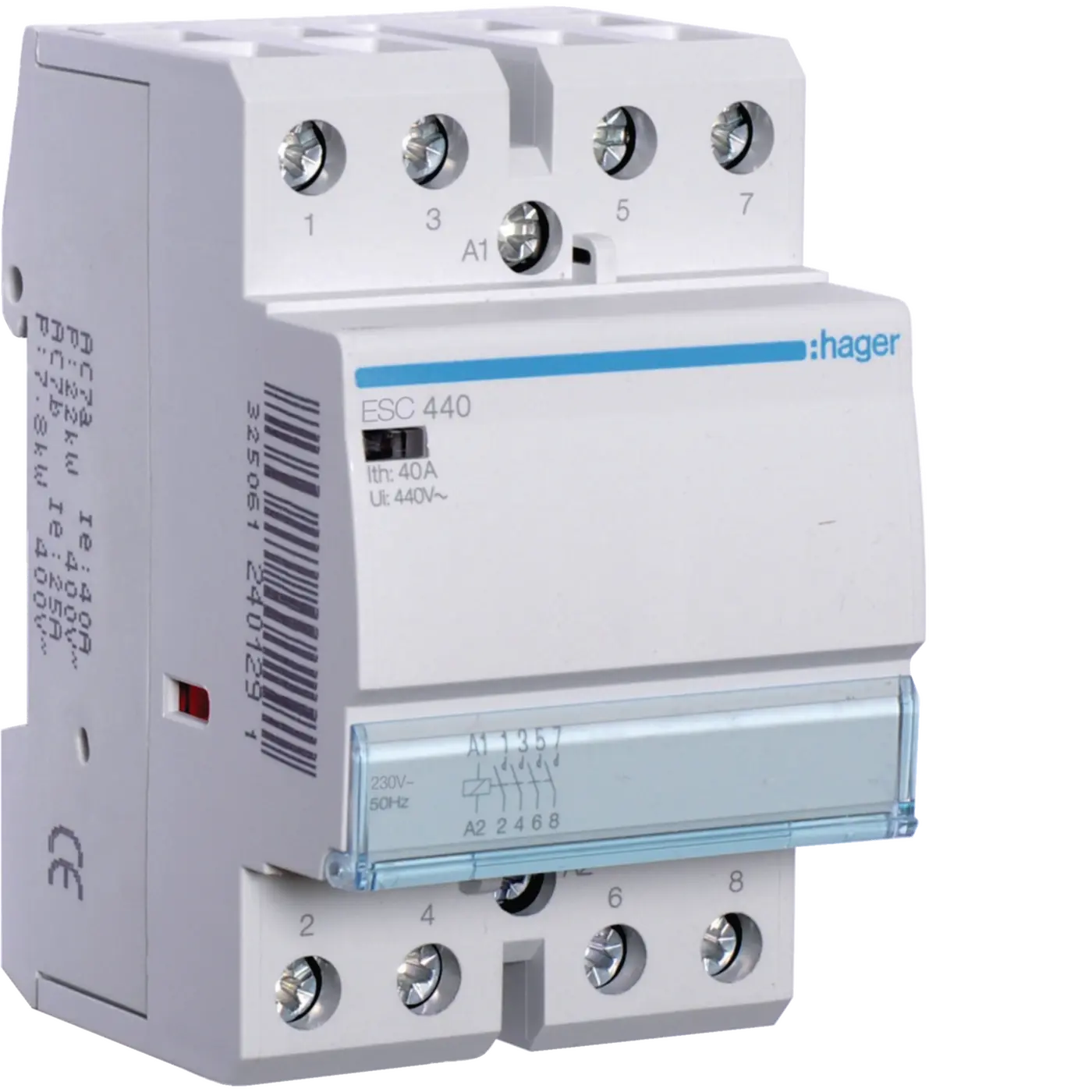

Hager Hager ESC440 ESC Contactor 4P 40 A 230V AC…
