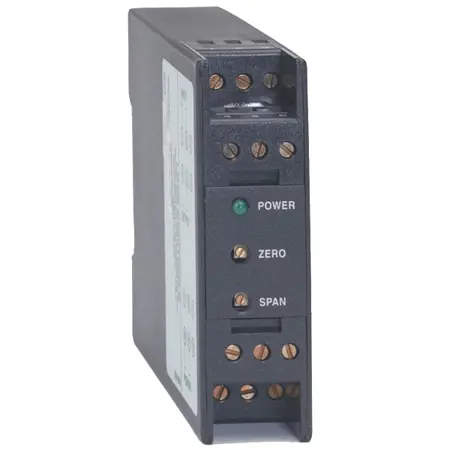

Dwyer Instruments SC4380 — Signal Conditioners & Isolators
KKM Solutions is an independent parts distributor, not an authorized Dwyer Instruments dealer — how we source.
Dwyer Instruments SC4380 - DIN Rail Signal Conditioners - Width: 0.866 in mm; Length: 3.88 in ft; Height: 2.95 in mm.
Overview
Part number SC4380 from Dwyer Instruments, listed in Signal Conditioners & Isolators. Specifications on file: Country of origin United States; Drift ± 0.02%/°C (typical), ± 0.05%/°C (max); GrossWeightValue 0.6; Height 2.95 in. KKM Solutions quotes this part with pricing and availability confirmed per order.
This listing covers the Dwyer Instruments SC4380, a part number in the DIN Rail Signal Conditioners category. The manufacturer's published data for this part number specifies Width: 0.866 in mm and Length: 3.88 in ft.
0 to 5 mA, 0 to 10 mA, 0 to 20 mA, 0 to 50 mA, 0 to 100 mA, 1 to 5 mA, 4 to 20 mA, 10 to 15 mA
Published specifications for this part include Height: 2.95 in mm; Input type: RTD; Mounting: DIN Rail - 35 mm (DIN EN50022-35); Isolation: 1500 Vac RMS; Supply voltage: 85 to 265 Vac/Vdc; Country of origin: United States; GrossWeightValue: 0.6; Supply Power Type: AC/DC; Supply Power Note: SC: 85 to 265 VDC/VAC 50 to 400 Hz; Temperature Measurement Range: N/A; Linearity: 0.1% of full-scale; Drift: ± 0.02%/°C (typical), ± 0.05%/°C (max). The complete technical table is shown in the Specifications tab on this page.
Specifications
| Country of origin | United States |
|---|---|
| Drift | ± 0.02%/°C (typical), ± 0.05%/°C (max) |
| GrossWeightValue | 0.6 |
| Height | 2.95 in |
| Input Control Signal | Current: 600 Ω max ; voltage: 500 Ω min (20 mA maximum) |
| Input type | RTD |
| Isolation | 1500 Vac RMS |
| Isolator Input Current Range | 0 to 5 mA, 0 to 10 mA, 0 to 20 mA, 0 to 50 mA, 0 to 100 mA, 1 to 5 mA, 4 to 20 mA, 10 to 15 mA |
| Isolator Input Voltage Range | 0 to 100 mV, 0 to 200 mV, 0 to 500 mV; 0 to 1 V, 0 to 5 V, 0 to 10 V, 1 to 5 V, 2 to 10 V |
| Isolator Output Current Range | 0 to 1 mA, 0 to 5 mA, 0 to 20 mA, 1 to 5 mA, 4 to 20 mA |
| Length | 3.88 in |
| Linearity | 0.1% of full-scale |
| Mounting | DIN Rail - 35 mm (DIN EN50022-35) |
| Output Load | Current: 600 Ω max ; Voltage: 500 Ω min (20 mA maximum) |
| Supply Power Note | SC: 85 to 265 VDC/VAC 50 to 400 Hz |
| Supply Power Type | AC/DC |
| Supply voltage | 85 to 265 Vac/Vdc |
| Temperature Measurement Range | N/A |
| Thermocouple Type | N/A |
| Width | 0.866 in |
Product details
| Manufacturer | Dwyer Instruments |
|---|---|
| Manufacturer part number | SC4380 |
| Product category | Signal Conditioners & Isolators |
| Published specifications | 20 attributes listed |
Request a quote for this part
Email orderdesk@kkmsolutions.com or call (825) 454-5367 for pricing and availability.
Frequently Asked Questions
How do I get pricing for SC4380?
This part is quoted on request, so no price is listed for it here. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the SC4380?
SC4380 is a Dwyer Instruments part, sourced to the exact manufacturer specification.
What is the lifecycle status of SC4380?
No published lifecycle status is on file for SC4380. Dwyer Instruments lists whether a catalog number is current, superseded or end-of-life on its own product page, and our order desk confirms the status with the manufacturer at quote time, before you commit. Send the part number through the quote form on this page.
What are the key specifications of SC4380?
Key specifications include Country of origin: United States; Drift: ± 0.02%/°C (typical), ± 0.05%/°C (max); GrossWeightValue: 0.6; Height: 2.95 in. The full specification table on this page lists every published attribute for this part.
How quickly can SC4380 ship?
Lead time is quoted per part and confirmed on your quote.
