32A030 — Dwyer Temperature controller/process, no alarm, (1) relay output.
KKM Solutions is an independent parts distributor, not an authorized Dwyer Instruments dealer — how we source.
Dwyer Instruments 32A030 - Thermostats - Weight: 4 oz; Control Output: Relay, Alarm; Input type: Thermocouple, RTD, DC Voltage or DC Current.
Overview
Part number 32A030 from Dwyer Instruments, listed in Process & Temperature Controllers. Specifications on file: Accuracy ± 0.25% span ± 1 least significant digit; Control Output Relay, Alarm; Country of origin United States; Display type LED. KKM Solutions quotes this part with pricing and availability confirmed per order.
The Dwyer Instruments 32A030 is part of the Thermostats range in our industrial catalog. The manufacturer's published data for this part number specifies Weight: 4 oz and Control Output: Relay, Alarm.
https://www.dwyeromega.com/en-us/compact-1-32-din-temp-process-controllers-dual-display-universal-input/Series-32A/p/32A030?guid=701a700000ulrduaaq&utm_source=spec-sheet&utm_medium=qr-code&utm_campaign=prd-sku-spec-sheet&utm_content=auto-generated-sku-level-spec-sheet
Key manufacturer data on file for this item includes Input type: Thermocouple, RTD, DC Voltage or DC Current; Accuracy: ± 0.25% span ± 1 least significant digit; Mounting orientation: 1/32 DIN; Supply voltage: 100 to 240 Vac, 132 to 240 Vdc; Power consumption: max 5 VA; Display type: LED; Operating temperature - max: 131 °F; Operating temperature - min: 14 °F; Switch type: SPST; Country of origin: United States; GrossWeightValue: 0.65; Switch Rating: 3 A @ 240 Vac, 1.5 A @ 240 Vac. The complete technical table is shown in the Specifications tab on this page.
Specifications
| Accuracy | ± 0.25% span ± 1 least significant digit |
|---|---|
| Control Output | Relay, Alarm |
| Country of origin | United States |
| Display Note | Two 4-digit, 7 segment, 0.259 high (6.35 mm) LEDs |
| Display type | LED |
| Enclosure Ratings | IP66, NEMA Type 4X |
| GrossWeightValue | 0.65 |
| Input Control Signal | 0 to 20 mA |
| Input type | Thermocouple, RTD, DC Voltage or DC Current |
| Memory Backup | Non-Volatile |
| Mounting orientation | 1/32 DIN |
| Number of Digits | 4 |
| Operating temperature - max | 131 °F |
| Operating temperature - min | 14 °F |
| Output Note | Relay: SPST, 3A @ 240 VAC resistive; 1.5A @ 240 VAC inductive; Pilot duty rating: 250 VA, 2A @ 120 VAC or 1A @ 240 VAC. |
| Output Type (A) | Relay |
| Output Type (B) | N/A |
| Power consumption | max 5 VA |
| RTD Input Range | JPt 100: -4 to 752°F; Pt 100: -328 to 1562°F; Ni 120: -112 to 572 °F; Cu 50: -58 to 302 °F |
| Spec Sheet QR URL | https://www.dwyeromega.com/en-us/compact-1-32-din-temp-process-controllers-dual-display-universal-input/Series-32A/p/32A030?guid=701a700000ulrduaaq&utm_source=spec-sheet&utm_medium=qr-code&utm_campaign=prd-sku-spec-sheet&utm_content=auto-generated-sku-level-spec-sheet |
| Supply Power Note | 100 to 240 VAC, nominal, +10 - 15%, 50 to 400 Hz. single phase; 132 to 240 VDC, nominal, +10 - 20% |
| Supply Power Type | AC/DC |
| Supply voltage | 100 to 240 Vac, 132 to 240 Vdc |
| Switch Rating | 3 A @ 240 Vac, 1.5 A @ 240 Vac |
| Switch type | SPST |
| Temperature Sensor Type | RTD or Thermocouple |
| Thermocouple Input Range Note | Type K: -328 to 2372°F; Type J: -148 to 2192°F; Type T: -328 to 752°F; Type E: 32 to 1112°F; Type W: -328 to 2372°F; Type R: 32 to 3092°F; Type S: 32 to 3092°F; Type B: 212 to 3272°F; Type L: -328 to 1562°F; Type U: -328 to 932°F |
| Voltage Input Range | 0 to 5 V, 0 to 10 V |
| Weight | 4 oz |
Product details
| Manufacturer | Dwyer Instruments |
|---|---|
| Manufacturer part number | 32A030 |
| Product category | Process & Temperature Controllers |
| Published specifications | 29 attributes listed |
| Related part numbers | 2 other part numbers in this family |
Request a quote for this part
Email orderdesk@kkmsolutions.com or call (825) 454-5367 for pricing and availability.
Frequently Asked Questions
How do I get pricing for 32A030?
This part is quoted on request, so no price is listed for it here. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 32A030?
32A030 is a Dwyer Instruments part, sourced to the exact manufacturer specification.
What is the lifecycle status of 32A030?
No published lifecycle status is on file for 32A030. Dwyer Instruments lists whether a catalog number is current, superseded or end-of-life on its own product page, and our order desk confirms the status with the manufacturer at quote time, before you commit. Send the part number through the quote form on this page.
What are the key specifications of 32A030?
Key specifications include Accuracy: ± 0.25% span ± 1 least significant digit; Control Output: Relay, Alarm; Country of origin: United States; Display Note: Two 4-digit, 7 segment, 0.259 high (6.35 mm) LEDs. The full specification table on this page lists every published attribute for this part.
How quickly can 32A030 ship?
Lead time is quoted per part and confirmed on your quote.
Variants & Related Part Numbers
Other Dwyer Instruments part numbers in this family:
Related Products
Dwyer Instruments Dwyer Temperature controller/process, no alarm, (1) 5 VDC output.
Dwyer Instruments Dwyer Temperature controller/process, no alarm, (1) current output.
Dwyer Instruments Dwyer Temperature controller/process, with alarm, (1) 5 VDC output…
Dwyer Instruments Dwyer Temperature controller/process, with alarm, (2) relay outputs.
Dwyer Instruments Dwyer Temperature controller/process, with alarm, (1) current output and…

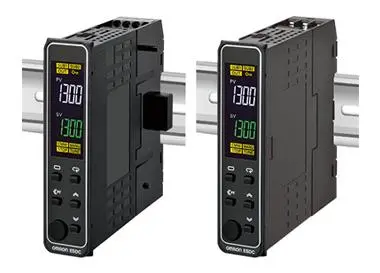

Omron Omron E5DC-RX2DSM-017 Temperature monitoring relay
