DODGE - 30QZ60H56 - 30QZ60H56 TIGEAR-2 EZ REDUCER
30QZ60H56 TIGEAR-2 EZ REDUCER Base to Output Center Height: 3.25 Base to Output Center Height (Unit): INCH Bore Diameter (Output): 1.938 Bore Diameter (Output) (Unit): INCH Bore Length: 7.76 Bore Length (Unit): INCH Bushing Required: Optional Case Size: 30 Center Distance: 3.0 Center Distance (Unit)
Overview
30QZ60H56 TIGEAR-2 EZ REDUCER Base to Output Center Height: 3.25 Base to Output Center Height (Unit): INCH Bore Diameter (Output): 1.938 Bore Diameter (Output) (Unit): INCH Bore Length: 7.76 Bore Length (Unit): INCH Bushing Required: Optional Case Size: 30 Center Distance: 3.0 Center Distance (Unit): INCH Gearbox Component Type: Gearbox Horsepower Rating Input: 2.11 Horsepower Rating Input (Unit): HORSEPOWER Horsepower Rating Output: 1.39 Horsepower Rating Output (Unit): HORSEPOWER Housing Material: Cast Iron Input Connection Type: C-Face Input Style: Direct Mount Lubrication: PAG, Standard Temperature Motor Compatibility: NEMA Motor, 56C Frame Motor Connection: Quill Motor Standard: NEMA Mounting Bolt Pattern Length: 7.0 Mounting Bolt Pattern Length (Unit): INCH Mounting Bolt Pattern Width: 4.0 Mounting Bolt Pattern Width (Unit): INCH Output Orientation: Right-Angle Output Shaft Center to Input Motor Mounting Face Distance: 6.11 Output Shaft Center to Input Motor Mounting Face Distance (Unit): INCH Output Style: Hollow Bore Overhung Load: 2300.0 Overhung Load (Unit): POUND_FORCE Paint Type: Stainless Epoxy PT Place Flag: Yes Rated Torque Output: 3009.0 Rated Torque Output (Unit): INCH_POUND Seal Type: Two-Piece Harsh Duty Suitable For Washdown: Yes Thermal Horsepower Rating: 2.67 Thermal Horsepower Rating (Unit): HORSEPOWER Actual Ratio: 60.0 Nominal Ratio: 60.0
Product details
| Manufacturer | Dodge |
|---|---|
| Manufacturer part number | 30QZ60H56 |
| KKM catalog reference | DODGE-30QZ60H56 |
| Product category | Power Transmission |
| Related part numbers | 5 other part numbers in this family |
Request a quote for this part
Email [email protected] or call (825) 454-5367 for pricing and availability.
Frequently Asked Questions
How much does 30QZ60H56 cost?
30QZ60H56 is listed at CA$5,340.51 (CAD) and can be ordered directly from this page with Add to Cart. That figure is a reference price and can change: your card is authorized at checkout and charged only once our order desk confirms the part, stock, and final price, and we email you first if anything has moved. Larger quantities or custom terms — email [email protected] for a volume quote.
Who manufactures the 30QZ60H56?
30QZ60H56 is a Dodge part. KKM Solutions sources Dodge components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
Is 30QZ60H56 discontinued, and can I still get one?
KKM Solutions does not publish a manufacturer lifecycle status for 30QZ60H56 — check Dodge's own product page for whether it is current, superseded, or end-of-life. It does not change what we can do: we source current-production, superseded and long-obsolete parts the same way, and where a part is genuinely unavailable we identify a form-fit-function equivalent. Send the part number through the quote form on this page, or use our obsolete part lookup at https://kkmsolutions.com/tools/obsolete-part-lookup/.
How quickly can 30QZ60H56 ship?
In-stock items are dispatched the same business day for orders placed by 11 AM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Variants & Related Part Numbers
Other Dodge part numbers in this family:
Related Products
DODGE - 290311 - 16X26 CR DR XT60
DODGE - 315L0610A-NK - 3-15/16" X61 LONG 1045 SHAFT…

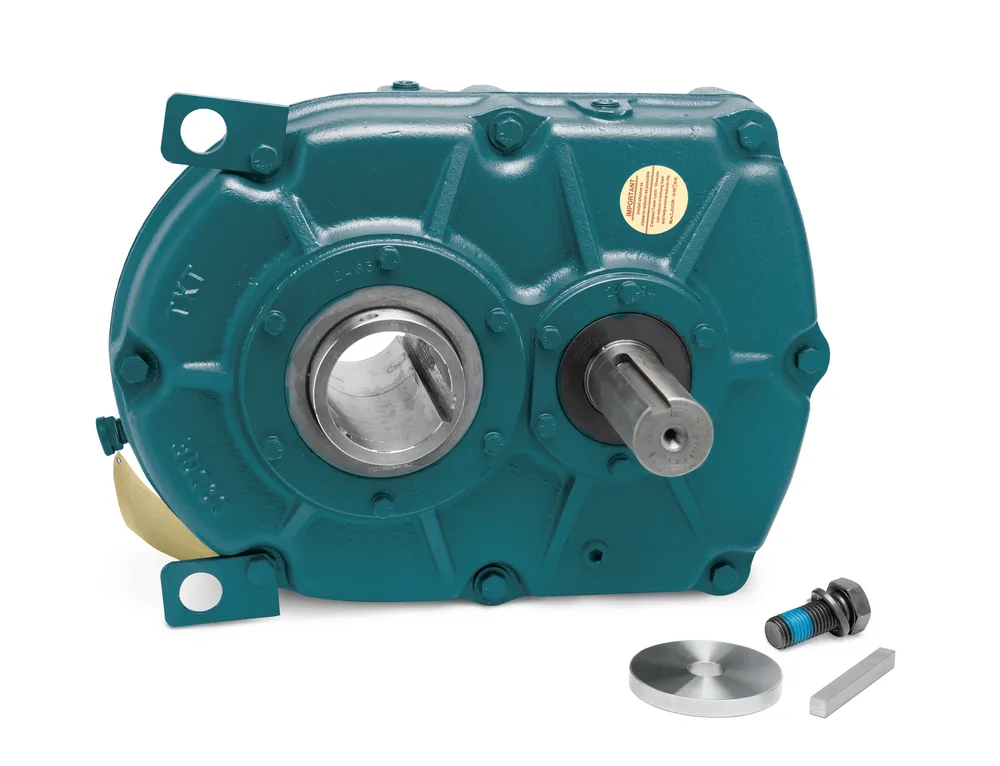

Dodge DODGE - 255208 - SCXT505E SCREW CONVEYOR REDUCER
