DODGE - 057338 - P2B-SC-108-HT
BEARINGS Ball Bearing Series: 208 Series Base to Center Height: 2.13 Base to Center Height (Unit): INCH Bearing Type: Ball Bolt Diameter: 0.5 Bolt Diameter (Unit): INCH Bolt to Bolt (Max): 5.88 Bolt to Bolt (Max) (Unit): INCH Bolt to Bolt (Min): 5.18 Bolt to Bolt (Min) (Unit): INCH Bore Length: 1.94
Overview
BEARINGS Ball Bearing Series: 208 Series Base to Center Height: 2.13 Base to Center Height (Unit): INCH Bearing Type: Ball Bolt Diameter: 0.5 Bolt Diameter (Unit): INCH Bolt to Bolt (Max): 5.88 Bolt to Bolt (Max) (Unit): INCH Bolt to Bolt (Min): 5.18 Bolt to Bolt (Min) (Unit): INCH Bore Length: 1.94 Bore Length (Unit): INCH Dynamic Load Capacity: 7332.0 Dynamic Load Capacity (Unit): POUND_FORCE Expansion Capability: Non-Expansion (Fixed) Greasable: Yes Grease Name: Krytox GPL 206 Housing Construction: Solid Housing Material: Cast Iron Housing Type: Two-Bolt Pillow Block Insert Material: Steel Lubrication: Grease Maximum Speed: 3500.0 Maximum Speed (Unit): RPM PT Place Flag: Yes Seal Type: Labyrinth Sensor Ready: Adapter Required Shaft Attachment: Setscrew Shaft Diameter: 1.5 Shaft Diameter (Unit): INCH Standoff Housing: No Static Load Capacity: 4475.0 Static Load Capacity (Unit): POUND_FORCE Suitable for High Temperature: Yes Suitable For Washdown: No Take-Up Frame Size: LD-20,TS-250
Product details
| Manufacturer | Dodge |
|---|---|
| Manufacturer part number | 057338 |
| KKM catalog reference | DODGE-057338 |
| Product category | Power Transmission |
| Related part numbers | 6 other part numbers in this family |
Request a quote for this part
Email [email protected] or call (825) 454-5367 for pricing and availability.
Frequently Asked Questions
How much does 057338 cost?
057338 is listed at CA$670.92 (CAD) and can be ordered directly from this page with Add to Cart. That figure is a reference price and can change: your card is authorized at checkout and charged only once our order desk confirms the part, stock, and final price, and we email you first if anything has moved. Larger quantities or custom terms — email [email protected] for a volume quote.
Who manufactures the 057338?
057338 is a Dodge part. KKM Solutions sources Dodge components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
Is 057338 discontinued, and can I still get one?
KKM Solutions does not publish a manufacturer lifecycle status for 057338 — check Dodge's own product page for whether it is current, superseded, or end-of-life. It does not change what we can do: we source current-production, superseded and long-obsolete parts the same way, and where a part is genuinely unavailable we identify a form-fit-function equivalent. Send the part number through the quote form on this page, or use our obsolete part lookup at https://kkmsolutions.com/tools/obsolete-part-lookup/.
How quickly can 057338 ship?
In-stock items are dispatched the same business day for orders placed by 11 AM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Variants & Related Part Numbers
Other Dodge part numbers in this family:
Related Products
DODGE - 053347 - P4B522-USAF-315LERAH MOD

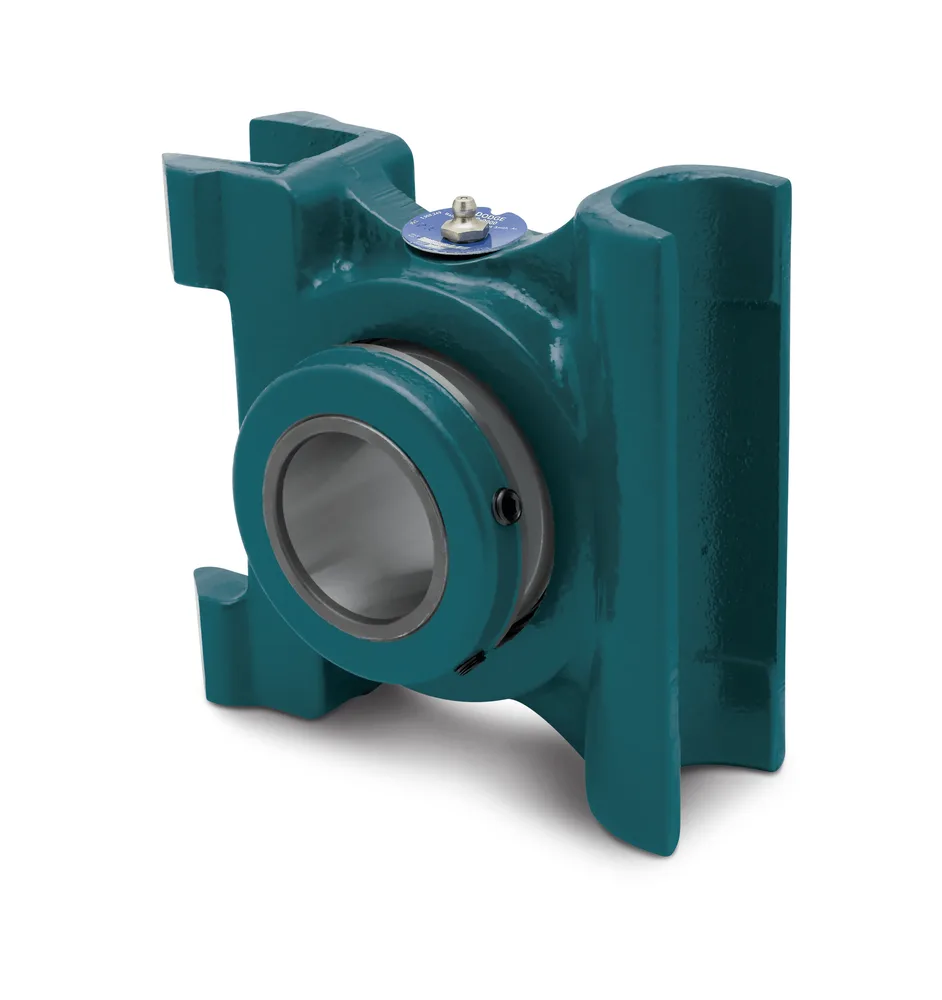

Dodge DODGE - 070812 - TPHU-S2-200R
