Deltrol Fluid Products DSV2-080-3 Solenoid Cartridge Valve
A cartridge valve designed as a three-way, spool-type, directional control valve.
A cartridge valve designed as a three-way, spool-type, directional control valve. When de-energized, the DSV2-080-3 allows flow between ➁ and ➀, while blocking flow at ➂. When energized, the cartridge’s spool shifts to allow flow between ➀ and ➂ while blocking flow at ➁. Operation of Manual Override Option: To override, push button in, twist counterclockwise and release. In this position, valve will remain detented in the shifted condition. To return to normal operation, push button in, twist clockwise and release. Override will be detented in this position. Features: Continuous-duty solenoid.; Hardened precision spool and sleeve for long life.; Efficient wet-armature construction.; Cartridges are voltage interchangeable.; Optional coil voltages and terminations.; Manual override option.; Industry common cavity.
| Cavity | 080-3 |
|---|---|
| Coil | Series 8 K-Coils (External Frame) ; Series 8 S-Coils (Internal Frame) |
| Flow gpm | 3.0 |
| Flow lpm | 11.4 |
| Max Operating Pressure (bar) | 207 |
| Max operating pressure (psi) | 3000 |
| Valve Style | Spool |
Request a quote for this part
Email [email protected] or call (825) 454-5367 for pricing and availability.
Frequently Asked Questions
How do I get pricing for DSV2-080-3?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email [email protected], and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the DSV2-080-3?
DSV2-080-3 is a Deltrol Fluid Products part. KKM Solutions sources Deltrol Fluid Products components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
Is DSV2-080-3 discontinued, and can I still get one?
KKM Solutions does not publish a manufacturer lifecycle status for DSV2-080-3 — check Deltrol Fluid Products's own product page for whether it is current, superseded, or end-of-life. It does not change what we can do: we source current-production, superseded and long-obsolete parts the same way, and where a part is genuinely unavailable we identify a form-fit-function equivalent. Send the part number through the quote form on this page, or use our obsolete part lookup at https://kkmsolutions.com/tools/obsolete-part-lookup/.
What are the key specifications of DSV2-080-3?
Key specifications include Cavity: 080-3; Coil: Series 8 K-Coils (External Frame) ; Series 8 S-Coils (Internal Frame); Flow gpm: 3.0; Flow lpm: 11.4. The full specification table on this page lists every published attribute for this part.
How quickly can DSV2-080-3 ship?
In-stock items are dispatched the same business day for orders placed by 11 AM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Variants & Related Part Numbers
Other Deltrol Fluid Products part numbers in this family:
- DSV2-080-2NCS — Deltrol Fluid Products DSV2-080-2NCS Solenoid Cartridge Valve
- DSV2-080-2NOS — Deltrol Fluid Products DSV2-080-2NOS Solenoid Cartridge Valve
- DSV2-080-3B — Deltrol Fluid Products DSV2-080-3B Solenoid Cartridge Valve
- DSV2-080-4CO — Deltrol Fluid Products DSV2-080-4CO Solenoid Cartridge Valve
- DSV2-080-4NC — Deltrol Fluid Products DSV2-080-4NC Solenoid Cartridge Valve
- DSV2-080-4NO — Deltrol Fluid Products DSV2-080-4NO Solenoid Cartridge Valve
- DSV2-080-4TC — Deltrol Fluid Products DSV2-080-4TC Solenoid Cartridge Valve
Related Products
Deltrol Fluid Products Deltrol Fluid Products DSV2-080-2NOS Solenoid Cartridge Valve
Deltrol Fluid Products Deltrol Fluid Products DSV2-080-3B Solenoid Cartridge Valve
Deltrol Fluid Products Deltrol Fluid Products DSV2-080-2NCS Solenoid Cartridge Valve
Deltrol Fluid Products Deltrol Fluid Products DSV2-080-4CO Solenoid Cartridge Valve

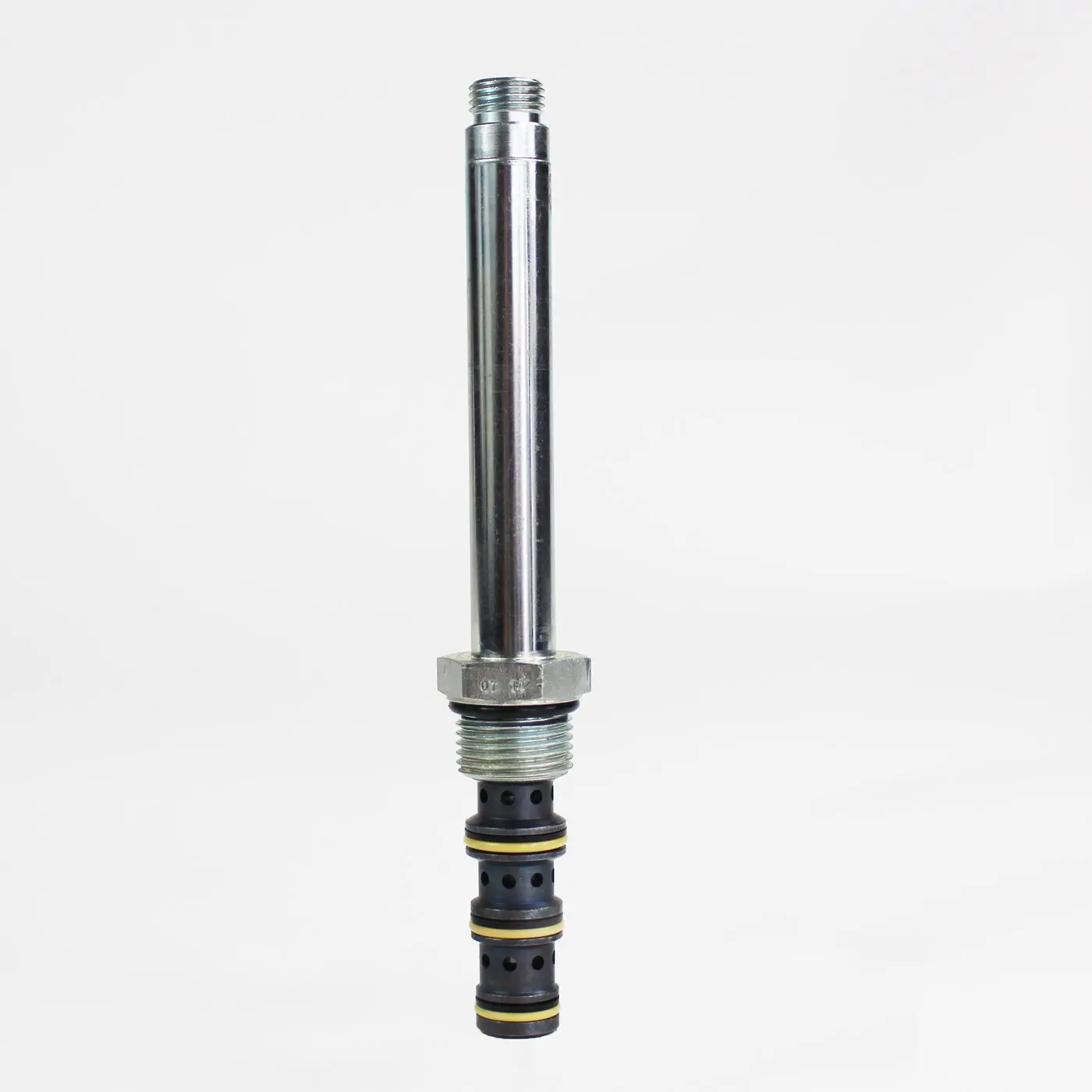

Deltrol Fluid Products Deltrol Fluid Products DSV-100-34T Solenoid Cartridge Valve
