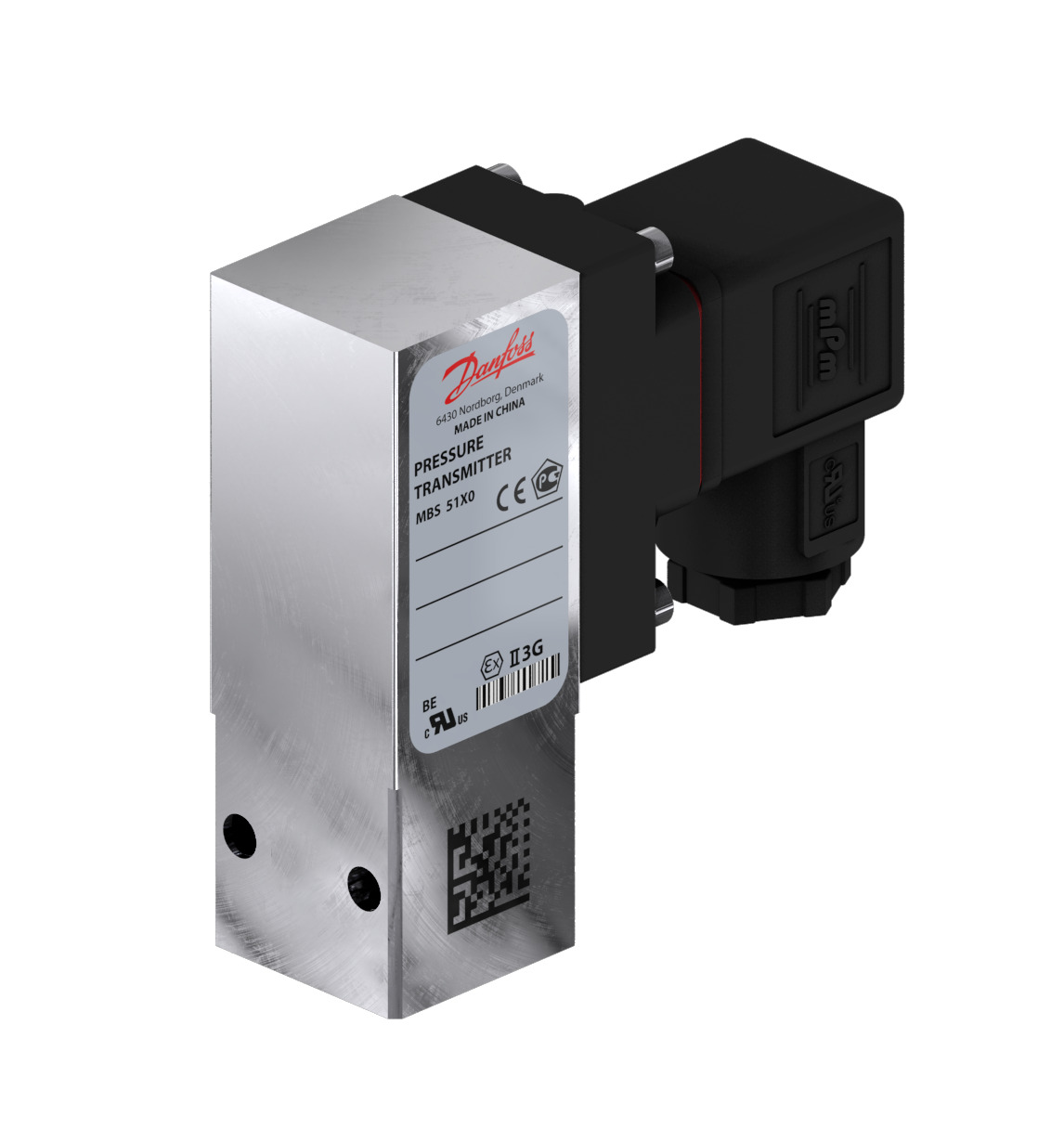

060N1021 — Danfoss Pressure transmitter, MBS 5100, 0 bar - 6 bar, 0 psi - 87 psi
KKM Solutions is an independent parts distributor, not an authorized Danfoss dealer — how we source.
Danfoss 060N1021 - MBS 5100 / MBS 5150 - Electrical connection: Angular connector; Type: MBS 5100; Gross weight: 0.393 Kilogram.
Overview
Part number 060N1021 from Danfoss, listed in Pressure Sensors & Transmitters. Specifications on file: - common Pin 2; + supply Pin 1; Accuracy, max. +/- FS [%] 0.3 %; Accuracy, typical +/- FS [%] 0.1 %. KKM Solutions quotes this part with pricing and availability confirmed per order.
The 060N1021 from Danfoss is listed under MBS 5100 / MBS 5150 in our catalog. The manufacturer's published data for this part number specifies Electrical connection: Angular connector and Type: MBS 5100.
Key manufacturer data on file for this item includes Gross weight: 0.393 Kilogram; Net weight: 0.321 Kilogram; Volume: 0.647 Liter; EAN: 5702423059683; Product group: Sensors; Product Name Description: Pressure transmitter; China RoHS compliance: Out of scope; Contains batteries: No; EU RoHS compliance: Yes with exemptions; Packing format: Multi pack; Quantity per packing format: 8 pc; REACH Candidate List substances: Lead (CAS no. 7439-92-1). See the Specifications tab on this page for the full technical table.
Specifications
| - common | Pin 2 |
|---|---|
| + supply | Pin 1 |
| Accuracy, max. +/- FS [%] | 0.3 % |
| Accuracy, typical +/- FS [%] | 0.1 % |
| Adj. zero point and span | No |
| Ambient temperature range [°C] [max] | 85 °C |
| Ambient temperature range [°C] [min] | -40 °C |
| Ambient temperature range [°F] [Max] | 185 °F |
| Ambient temperature range [°F] [Min] | -40 °F |
| Approval | C UL US UL RecognizedCE |
| CE evaluated | Yes |
| China RoHS compliance | Out of scope |
| Compensated temp. range [°C] [Max] | 80 °C |
| Compensated temp. range [°C] [Min] | 0 °C |
| Compensated temp. range [°F] [Max] | 176 °F |
| Compensated temp. range [°F] [Min] | 32 °F |
| Contains batteries | No |
| EAN | 5702423059683 |
| Electrical conn. Male/Female | Male and Female |
| Electrical connection | Angular connector |
| Electrical connection size | Pg 11 |
| Electrical connection standard | EN 175301-803-A |
| Enclosure rating IP | IP65 |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 6(c) |
| Flush diaphragm | No |
| Gross weight | 0.393 Kilogram |
| High Clipping Level | 22.4 |
| In scope of WEEE | Yes |
| International Article Number | 5702423059683 |
| Intrinsically safe | No |
| Low Clipping Level | 3.6 |
| Medium temperature range [°C] [Max] | 85 °C |
| Medium temperature range [°C] [Min] | -40 °C |
| Medium temperature range [°F] [Max] | 185 °F |
| Medium temperature range [°F] [Min] | -40 °F |
| Net weight | 0.321 Kilogram |
| Non-linearity BFSL ±FS [%] | 0.2 % |
| Output signal | Current |
| Output signal [mA] [Max] | 20 mA |
| Output signal [mA] [Min] | 4 mA |
| Overload pressure max. [bar] | 20 bar |
| Packing format | Multi pack |
| Pressure connection size | 1/4 |
| Pressure connection standard | ISO 228-1 |
| Pressure connection type | G |
| Pressure Male/Female | Female |
| Pressure range [bar] [Max] | 6 bar |
| Pressure range [bar] [Min] | 0 bar |
| Pressure range [psi] [Max] | 87 psi |
| Pressure range [psi] [Min] | 0 psi |
| Pressure unit reference | Gauge (relative) |
| Product group | Sensors |
| Product Name Description | Pressure transmitter |
| Pulse-snubber | No |
| Quantity per packing format | 8 pc |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Response time max. [ms] | 4 ms |
| SCIP dossier no. | 16d2efc6-64f3-4a4e-ae98-a3fd7ce0218d |
| SCIP dossier product name | AKS/MBS |
| Specification key | MBS 5100-1811-A6CB04-4 |
| Supply voltage [V] DC [max] | 32 V |
| Supply voltage [V] DC [min] | 9 V |
| Test Signal | Pin 3 |
| Type | MBS 5100 |
| UL evaluated | Yes |
| Volume | 0.647 Liter |
Product details
| Manufacturer | Danfoss |
|---|---|
| Manufacturer part number | 060N1021 |
| Product category | Pressure Sensors & Transmitters |
| Published specifications | 67 attributes listed |
| Related part numbers | 14 other part numbers in this family |
Request a quote for this part
Email orderdesk@kkmsolutions.com or call (825) 454-5367 for pricing and availability.
Frequently Asked Questions
How do I get pricing for 060N1021?
This part is quoted on request, so no price is listed for it here. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 060N1021?
060N1021 is made by Danfoss and is listed in our Pressure Sensors & Transmitters category. KKM Solutions is an independent distributor, not an authorized Danfoss dealer: we source the exact Danfoss part number 060N1021, and the quote confirms condition and lead time before you order.
Is the 060N1021 new and genuine?
Parts we supply are new and genuine unless the quote expressly states otherwise. Where a part is new-old-stock, from excess inventory, refurbished or open-box, the quote says so before you approve it.
What warranty comes with the 060N1021, and can I return it?
Parts we supply are warranted against manufacturing defects for 1 year from the date of delivery; where the manufacturer's own warranty is longer, the manufacturer's warranty applies. The warranty covers repair, replacement, or credit of the defective part and does not cover normal wear items, misapplication, improper installation, or consequential damages. Contact us within 30 days of delivery before returning anything — all returns need a return authorization from the order desk.
What is the lifecycle status of 060N1021?
No published lifecycle status is on file for 060N1021. Danfoss lists whether a catalog number is current, superseded or end-of-life on its own product page, and our order desk confirms the status with the manufacturer at quote time, before you commit. Send the part number through the quote form on this page.
What are the key specifications of 060N1021?
Key specifications include - common: Pin 2; + supply: Pin 1; Accuracy, max. +/- FS [%]: 0.3 %; Accuracy, typical +/- FS [%]: 0.1 %. The full specification table on this page lists every published attribute for this part.
What voltage does 060N1021 use?
Per the published specification for 060N1021: Supply voltage [V] DC [max]: 32 V; Supply voltage [V] DC [min]: 9 V. Confirm against the full specification table on this page, or ask our order desk to verify it with the manufacturer at quote time.
What is the IP rating of 060N1021?
Per the published specification for 060N1021: Enclosure rating IP: IP65. Confirm against the full specification table on this page, or ask our order desk to verify it with the manufacturer at quote time.
What thread or connection does 060N1021 use?
Per the published specification for 060N1021: Pressure connection size: 1/4; Pressure connection type: G. Confirm against the full specification table on this page, or ask our order desk to verify it with the manufacturer at quote time.
How quickly can 060N1021 ship?
Lead time for 060N1021 is quoted per order and confirmed on your quote, which our order desk sends within 1 business day. For a line-down emergency, call the 24/7 order desk at (825) 454-5367.
