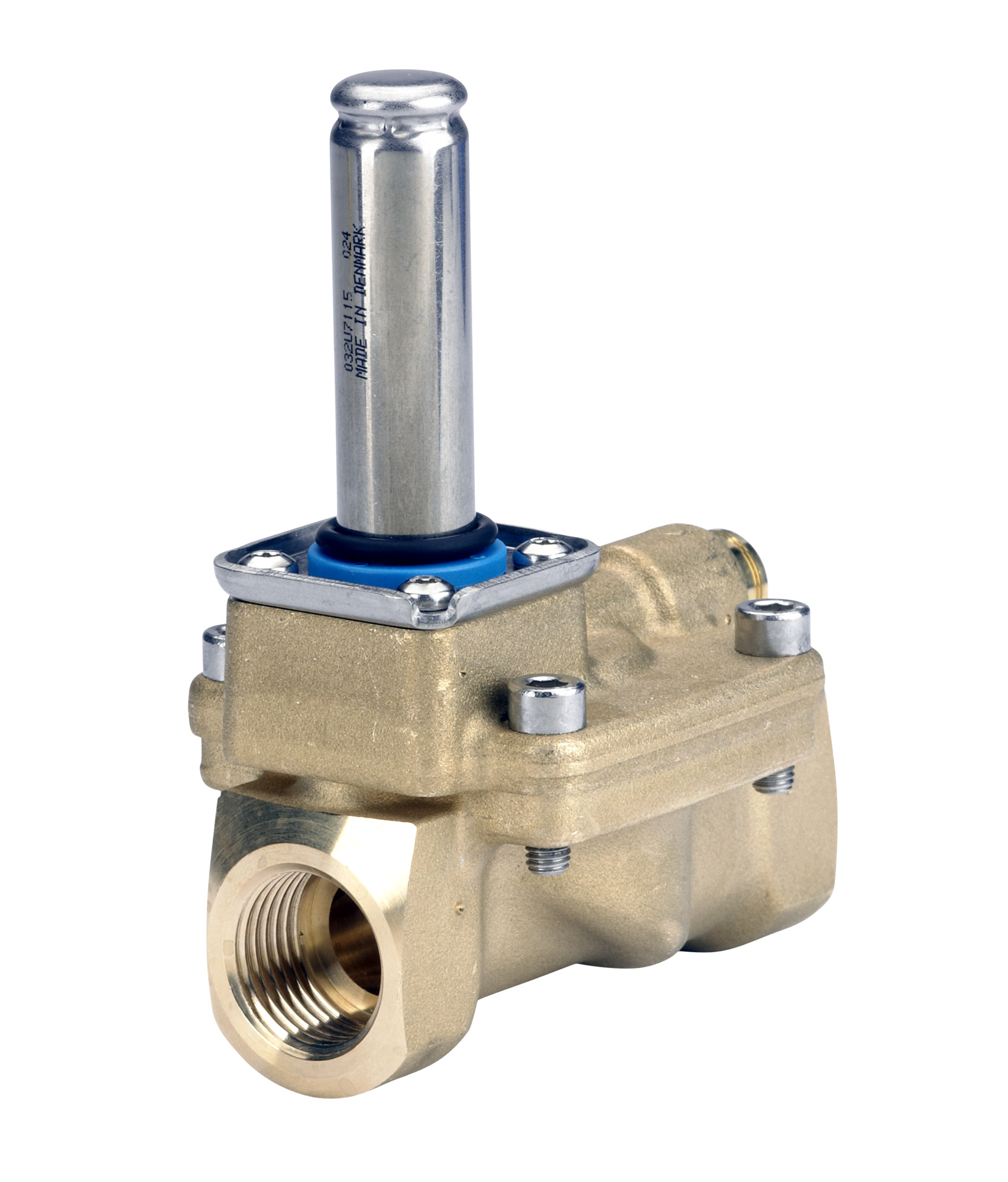

Danfoss Solenoid valve, EV220B, Function: NC, NPT, 1/2, 4 m³/h, FKM
Ships Same Day*
Worldwide Shipping
| Actuator | B |
|---|---|
| Actuator size | 13.5 mm |
| Actuator size [in] | 0.53 in |
| Actuator system [mm] | 13.5 mm |
| Ambient temperature max. [°C] | 50 °C |
| Ambient temperature max. [°F] | 122 °F |
| Application | Open |
| Approval | C UL US LISTEDDNVGL-CG-0339GL |
| Body material | Brass |
| China RoHS compliance | Yes with exemptions |
| China RoHS exemption clause | 7.3 |
| Connection Internal/External | Internal |
| Connection material | Brass |
| Connection size [in] | 1/2 |
| Connection standard | ANSI/ASME B1.20.1 |
| Connection type | NPT |
| Contains batteries | No |
| Cv value [gal/min] | 4.6 gal/min |
| Differential pressure [bar] [max] | 9.791 bar |
| Differential pressure [bar] [Min] | 0.3 bar |
| Differential pressure [psi] [Max] | 142 psi |
| Differential pressure [psi] [Min] | 4.351 psi |
| EAN | 5702423031740 |
| EEE category | 5 small equipment (any external dimension < 50 cm) |
| Est. time to close, water [ms] | 350 ms |
| Est. time to open, water [ms] | 40 ms |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 6(c) |
| Flow direction | Single-flow |
| Flow direction indicator | Embossed 1-way arrow |
| Fluid Group | 1 |
| Function | NC |
| Gross weight | 0.741 Kilogram |
| In scope of WEEE | Yes |
| Kv value [m³/h] | 4 m³/h |
| Max media viscosity [cSt] | 50 cSt |
| Max. test pressure [bar] | 20 bar |
| Max. test pressure [psig] | 290 psig |
| Max. Working Pressure [bar] | 15.5 bar |
| Max. Working Pressure [psig] | 225 psig |
| Media recommendations | Oil,Comp.Air,Vacuum |
| Media tolerance comments | Neutral mediaWater at max. 60°C/140 °F |
| Medium temperature range [°C] [Max] | 100 °C |
| Medium temperature range [°C] [Min] | -10 °C |
| Medium temperature range [°F] [Max] | 212 °F |
| Medium temperature range [°F] [Min] | 14 °F |
| Net weight | 0.695 Kilogram |
| Number of ways | 2/2 |
| Open/close equalizing orifice | Optional Equalization orifice |
| Operation | Servo-operated (diaphragm) |
| Orifice size [mm] | 15 mm |
| Orifice size fraction [in] | 5/8 in |
| Packing format | Multi pack |
| Parts Program name | EV220B 15 - 50 |
| Product accessories | Solenoid valve accessories |
| Product group | Solenoid valves |
| Product Name Description | Solenoid valve |
| Quantity per packing format | 24 pc |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| SCIP dossier no. | b8af40bc-3f7f-4177-bd55-c3503cccfc04 |
| SCIP dossier product name | EV220B 15-50 brass NC - solenoid valve |
| Seal Material | FKM |
| Serviceable | Solenoid valve spare parts |
| Specification key | EV220B 15B N 12F NC000 |
| Type | EV220B |
| Type designation | EV220B 15 |
| UL evaluated | Yes |
| Volume | 3.684 Liter |
Frequently Asked Questions
How do I get pricing for 032U6538?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 032U6538?
032U6538 is a Danfoss part. KKM Solutions sources Danfoss components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of 032U6538?
Key specifications include Actuator: B; Actuator size: 13.5 mm; Actuator size [in]: 0.53 in; Actuator system [mm]: 13.5 mm. The full specification table on this page lists every published attribute for this part.
How quickly can 032U6538 ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products

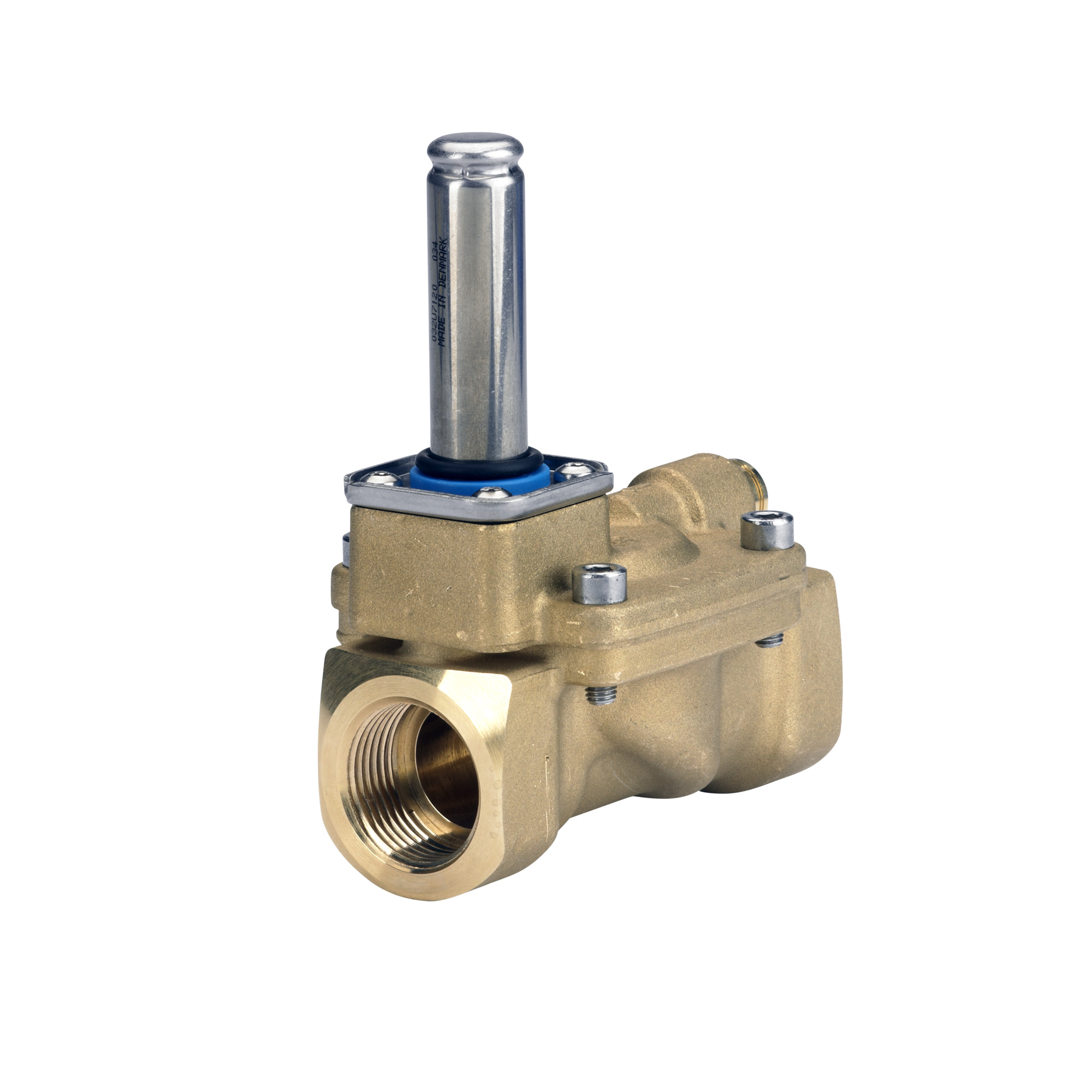

Danfoss Danfoss Solenoid valve, EV220B, Function: NC, NPT, 3/4, 8…
SKU: 032U6539
Same-day dispatch*
Danfoss Danfoss Solenoid valve, EV220B, Function: NC, NPT, 2, 40…
SKU: 032U6537
Same-day dispatch*

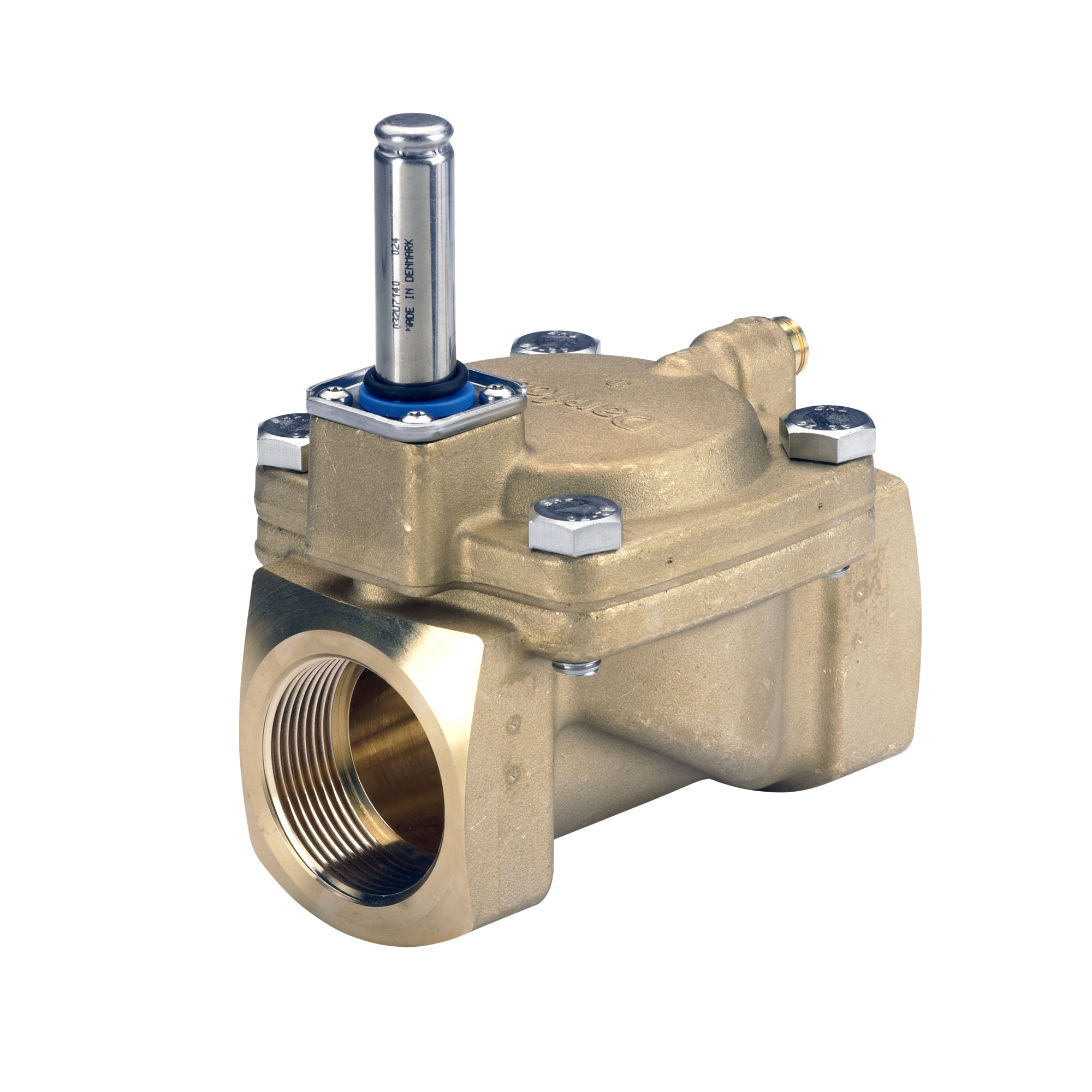

Danfoss Danfoss Solenoid valve, EV220B, Function: NC, NPT, 1 1/2,…
SKU: 032U6542
Same-day dispatch*
Danfoss Danfoss Solenoid valve, EV220B, Function: NC, NPT, 1 1/2,…
SKU: 032U6536
Same-day dispatch*

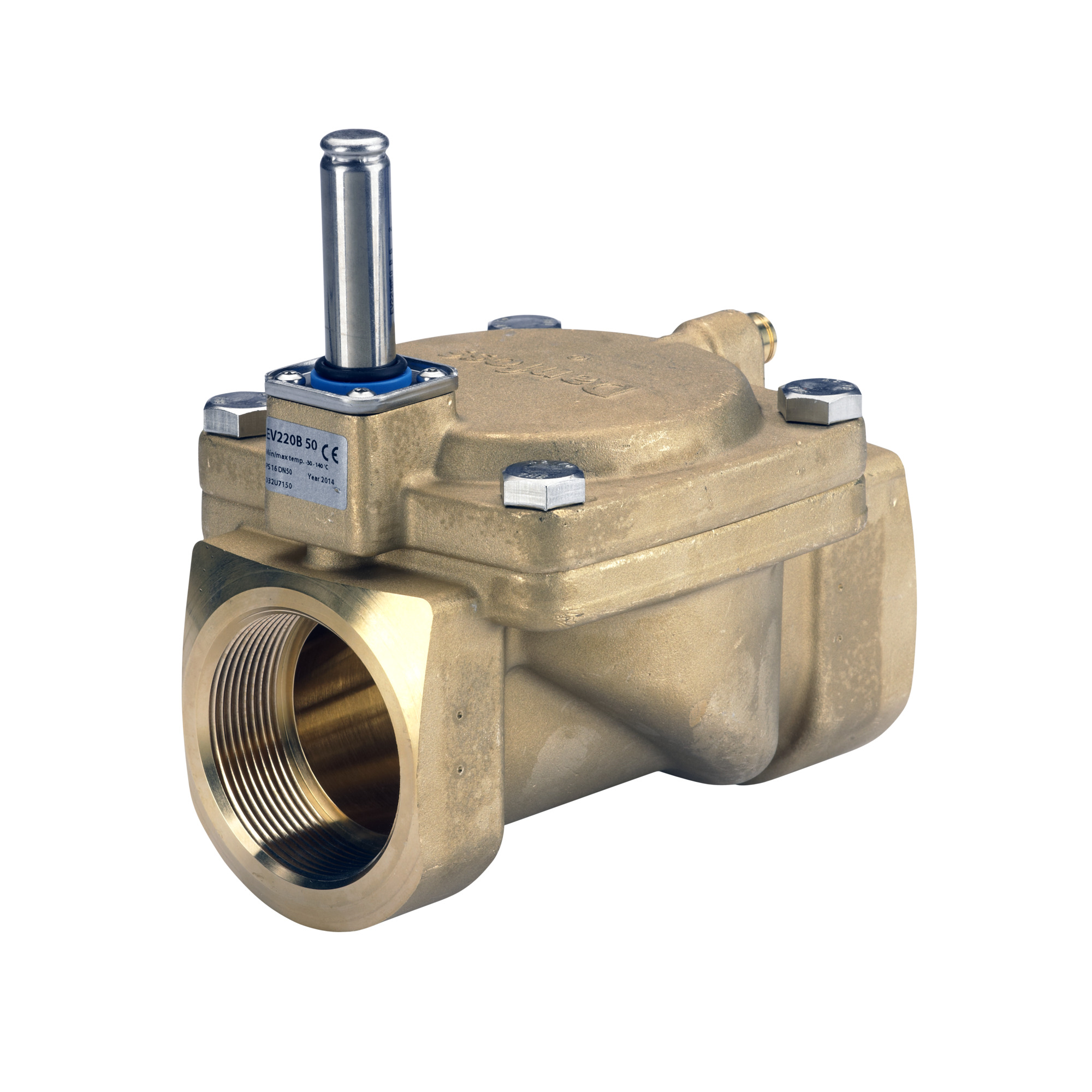

Danfoss Danfoss Solenoid valve, EV220B, Function: NC, NPT, 2, 40…
SKU: 032U6543
Same-day dispatch*

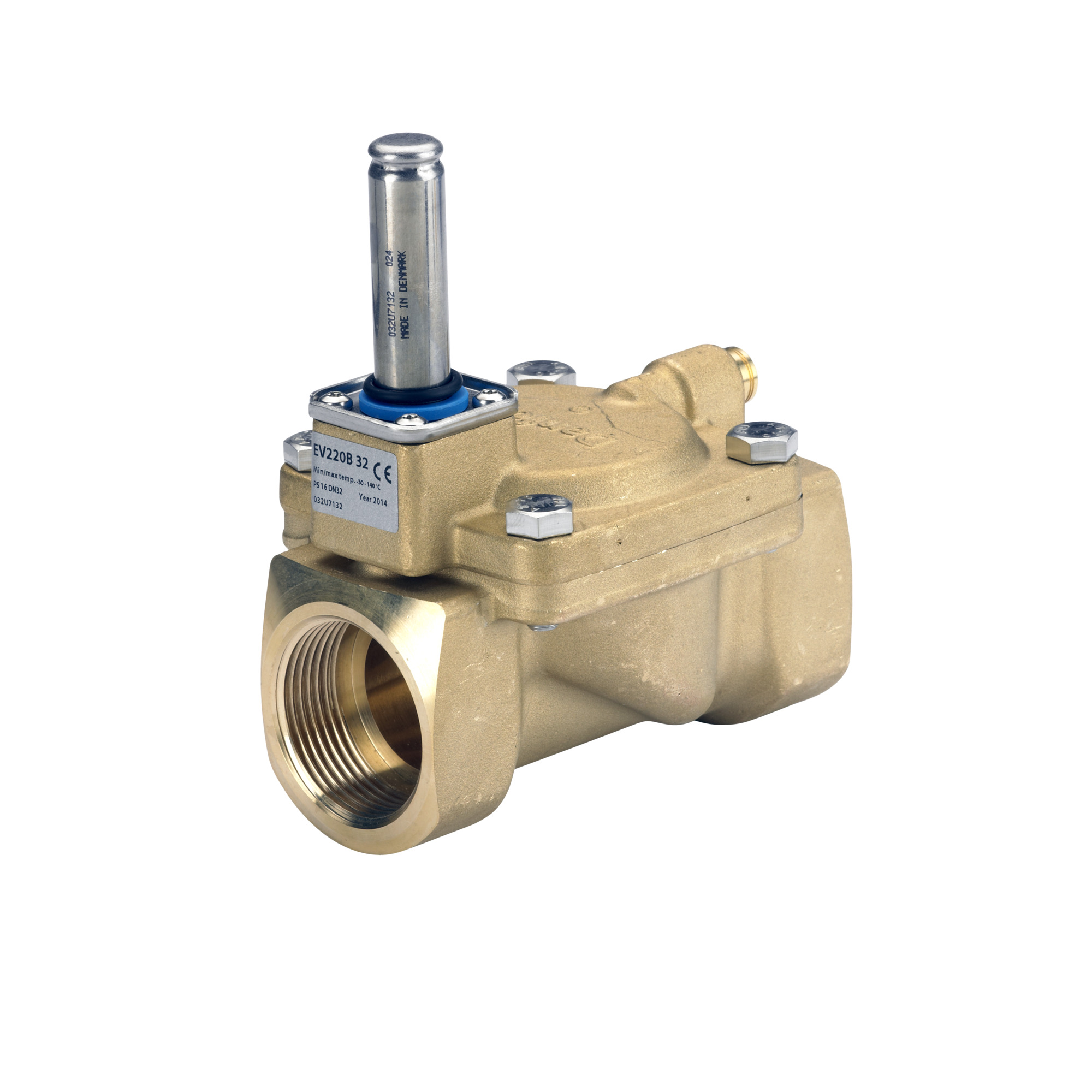

Danfoss Danfoss Solenoid valve, EV220B, Function: NC, NPT, 1 1/4,…
