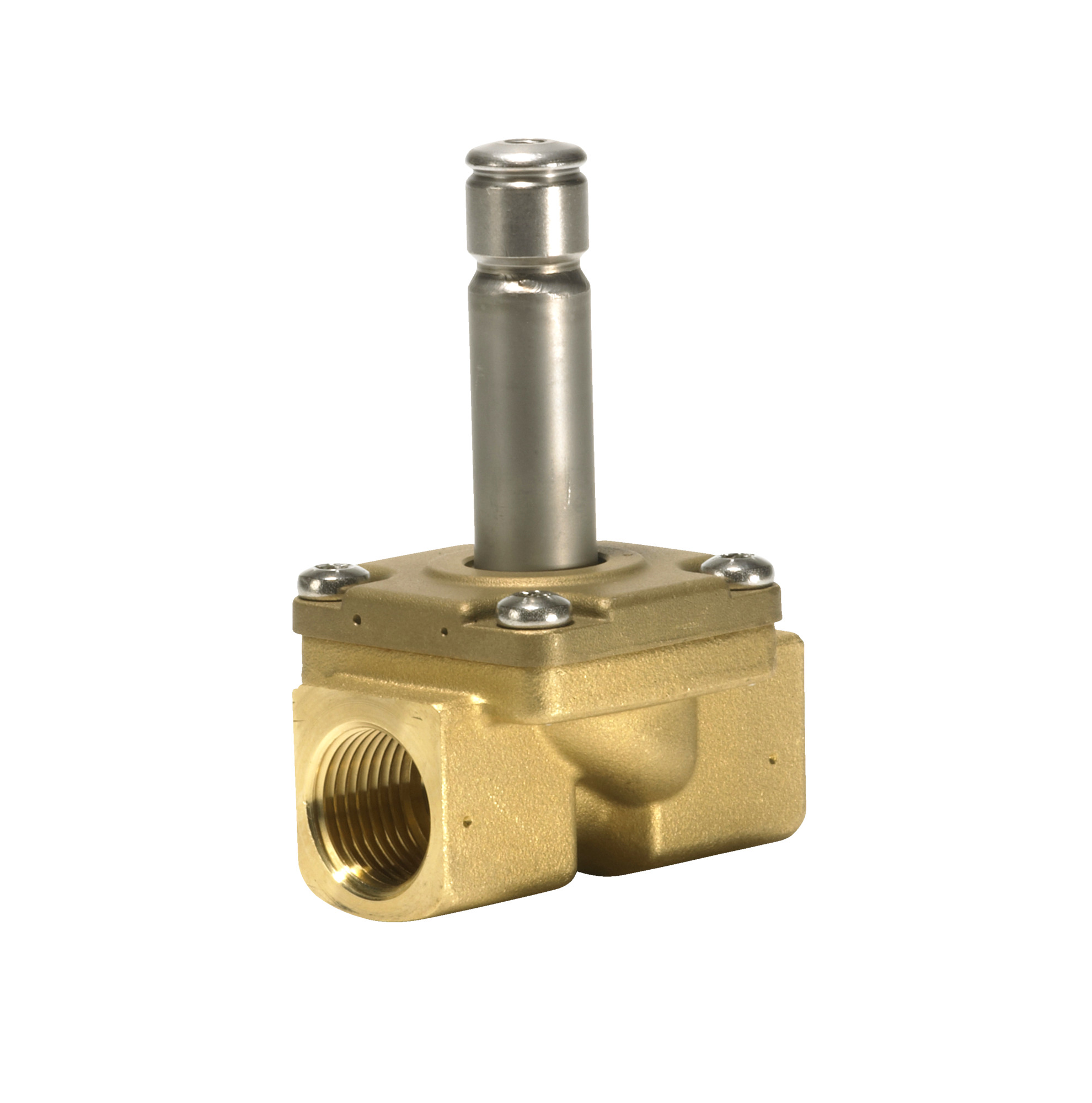

Danfoss Solenoid valve, EV210B, Function: NC, G, 3/8, 0.55 m³/h, FKM
| Actuator | B |
|---|---|
| Actuator size | 13.5 mm |
| Actuator size [in] | 0.53 in |
| Actuator system [mm] | 13.5 mm |
| Ambient temperature max. [°C] | 80 °C |
| Ambient temperature max. [°F] | 176 °F |
| Application | Closed and Drain |
| Body material | Eco brass |
| China RoHS compliance | Yes with exemptions |
| China RoHS exemption clause | 7.3 |
| Connection Internal/External | Internal |
| Connection material | Eco brass |
| Connection size [in] | 3/8 |
| Connection standard | ISO 228-1 |
| Connection type | G |
| Contains batteries | No |
| Cv value [gal/min] | 0.64 gal/min |
| Differential pressure [bar] [max] | 13 bar |
| Differential pressure [bar] [Min] | 0 bar |
| Differential pressure [psi] [Max] | 189 psi |
| Differential pressure [psi] [Min] | 0 psi |
| EAN | 5702423179053 |
| EEE category | 5 small equipment (any external dimension < 50 cm) |
| Est. time to close, water [ms] | 20 ms |
| Est. time to open, water [ms] | 20 ms |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 6(c) |
| Flow direction | Single-flow |
| Flow direction indicator | Embossed 1-way arrow |
| Fluid Group | 1 |
| Function | NC |
| Gross weight | 0.206 Kilogram |
| In scope of WEEE | Yes |
| Kv value [m³/h] | 0.55 m³/h |
| Max media viscosity [cSt] | 50 cSt |
| Max. test pressure [bar] | 19.5 bar |
| Max. test pressure [psig] | 283 psig |
| Max. Working Pressure [bar] | 13 bar |
| Max. Working Pressure [psig] | 189 psig |
| Media recommendations | Oil,Comp.Air,Vacuum |
| Media tolerance comments | Neutral media |
| Medium temperature range [°C] [Max] | 100 °C |
| Medium temperature range [°C] [Min] | -10 °C |
| Medium temperature range [°F] [Max] | 212 °F |
| Medium temperature range [°F] [Min] | 14 °F |
| Net weight | 0.18 Kilogram |
| Number of ways | 2/2 |
| Operation | Direct-operated |
| Orifice size [mm] | 4.5 mm |
| Orifice size fraction [in] | 3/16 in |
| Packing format | Multi pack |
| Parts Program name | EV210B |
| Product accessories | Solenoid valve accessories |
| Product group | Solenoid valves |
| Product Name Description | Solenoid valve |
| Quantity per packing format | 20 pc |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| SCIP dossier no. | f39c9b5f-71a1-49e3-bc6d-20baa8f46870 |
| SCIP dossier product name | EV210B brass NC - solenoid valve |
| Seal Material | FKM |
| Serviceable | Solenoid valve spare parts |
| Specification key | EV210B 4.5 G 38F NC000 |
| Type | EV210B |
| Type designation | EV210B 4.5 |
| Volume | 0.253 Liter |
