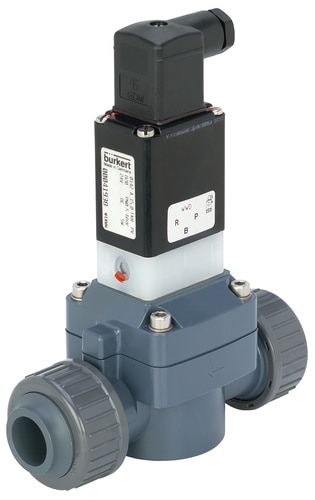

Buerkert Type 0142 2/2-way-solenoid valve f.aggress. medium
Ships Same Day*
Worldwide Shipping
| AC voltage | Yes |
|---|---|
| Actuator type | Pivot |
| Analysis version | No |
| Back-pressure-resistant version | No |
| Battery voltage | No |
| Cable plug art. no. - type | 00314802 - 2518 |
| Cable plug in delivery | enclosed |
| Coil insulation material (encasement) | Epoxy |
| Coil type | block bolted |
| Coil wiring overvoltage protection | without |
| Coil wiring polarity recovery diode | No |
| Coil wiring rectifier | No |
| Commodity Code | 84818079 |
| DC voltage | No |
| Electrical connection number of contacts | 2 + Grounding conductor |
| Electrical connection position | top |
| Electrical connection sort | Plug pattern form A according to DIN EN 175301-803 |
| Flow | Above seat |
| Fluidic port connection number | 2 |
| Kv value (water) | 6 m3/h |
| Low-noise version | No |
| Main valve operating principle | Diaphragm valve |
| Main valve orifice 1 (inch) | 3/4 inch |
| Main valve orifice 1 (P) (mm) | 20 mm |
| Main valve wetted material | PVC (Polyvinyl chloride) |
| Main valve with integrated screen | No |
| Manual actuation | Yes |
| Manual actuation material | PA (Polyamide) |
| Manual actuation screw slot | No |
| Manual actuation stop | Yes |
| Manual actuation type | Key button |
| Media separation | Yes |
| Nominal operation/Duty cycle | 100 % |
| Nominal pressure max (liquid) | 6 bar |
| Nominal pressure min | 0,5 bar |
| Oil burner valve | No |
| Operation | servo-controlled |
| Pilot control material medium-contacting | PVDF (Polyvinylidene fluoride) |
| Pilot control orifice (mm) | 2 mm |
| Pilot control seal material | EPDM (Ethylene-propylene-diene rubber) |
| Port connection 1 inner diameter (mm) | 25 mm |
| Port connection 1 size DN | DN 20 |
| Port connection 1 type | Gluing sleeve |
| Port connection 2 inner diameter (mm) | 25 mm |
| Port connection 2 size DN | DN 20 |
| Port connection 2 type | Gluing sleeve |
| Protection type IP (max. with suitable connector) | IP65 |
| QNn value (gas) | 6.400 l/min |
| Rated power consumption | 5 W |
| Sealing toward outside material | EPDM (Ethylene-propylene-diene rubber) |
| Seat seal material | EPDM (Ethylene-propylene-diene rubber) |
| Seat seal material category | Elastomers |
| Steam version | No |
| Switch function | on/off |
| Switch time close max. | 4.000 ms |
| Switch time close min | 1.000 ms |
| Switch time open max. | 800 ms |
| Switch time open min | 100 ms |
| Temperature environment max | 40 °C |
| Temperature environment min | 0 °C |
| Temperature medium max | 50 °C |
| Temperature medium min | 0 °C |
| Thermal insulation class of the actuator | H |
| Type | 0142 |
| Vacuum version | No |
| Valve construction | Valve complete |
| Valve function | A - normally closed - inlet port 1 (P/NC) |
| Valve function number of switching positions | 2 |
| Valve setting closing time | No |
| Valve setting opening time | No |
| Voltage frequency 1 | 50/60 Hz |
| Voltage max / rated voltage | 24 V |
| Voltage min / rated voltage | 24 V |
| Voltage tolerance negative | 10 % |
| Voltage tolerance positive | 10 % |
| Weight | 1.5 Lb |
Frequently Asked Questions
How do I get pricing for 50908?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 50908?
50908 is a Buerkert part. KKM Solutions sources Buerkert components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of 50908?
Key specifications include AC voltage: Yes; Actuator type: Pivot; Analysis version: No; Back-pressure-resistant version: No. The full specification table on this page lists every published attribute for this part.
How quickly can 50908 ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
