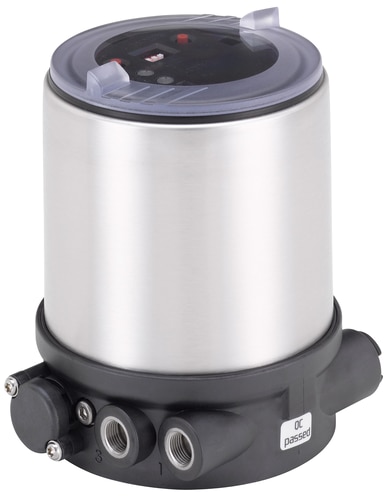

Buerkert Type 8694 Positioner top basic 70 mm for act. 27XX
| AC voltage | No |
|---|---|
| Approval type | ATEX, Ex national, IECEx |
| Certification type | II 3 G Ex ec IIC T4 Gc, China (CCC), Ex ec IIC T4 Gc, II 3 D Ex tc IIIC T135°C Dc, Ex tc IIIC T135°C Dc |
| Commodity Code | 90268020 |
| Communication interface protocol | ASi + Service-büS |
| Control interface | DIP switch |
| DC voltage | Yes |
| Displacement transducer signal | digital 14-bit |
| Displacement transducer type | internal linear |
| Electrical connection sort | Wire cable |
| Electrical connection type | male |
| Electrical connection wire length | 1.000 mm |
| Electrical connection wire ready-made | Plug-in connector |
| For Actuator size 100mm | No |
| For Actuator size 125mm | Yes |
| For Actuator size 130mm | No |
| For Actuator size 175mm | Yes |
| For Actuator size 225mm | Yes |
| For Actuator size 40 mm | No |
| For Actuator size 50mm | No |
| For Actuator size 63mm | No |
| For Actuator size 70mm | No |
| For Actuator size 80mm | No |
| For Actuator size 90mm | No |
| Function | Positioner |
| Galvanically separated actuator supply | No |
| Input 1 type digital | serial (bus) |
| Manual actuation | Yes |
| Mounting Type | CLASSIC drive |
| Output 1 type digital | Serial (bus) |
| Pneumatic function 1 double acting | No |
| Pneumatic function 1 single acting | Yes |
| Port connection 1 thread marking | 1/8 |
| Port connection 1 thread type | G |
| Port connection 1 type | Internal thread |
| Positioning system with booster function | No |
| Product sub-group | Positioner / Process Controller |
| Protection type IP (max. with suitable connector) | IP65/67 |
| QNn value (gas) | 130 l/min |
| Supply system-internal | No |
| Supply via BUS | Yes |
| Supply via separating barrier | No |
| Temperature environment max | 60 °C |
| Temperature environment min | -10 °C |
| Type | 8694 |
| Valve diameter | 2,5 mm |
| Voltage max / rated voltage | 31,6 V |
| Voltage min / rated voltage | 29,5 V |
| Weight | 1.32 Lb |
