EP1008-0001 Beckhoff EtherCAT Box, 8-channel digital input, 24 V DC, 3 ms, M8
Beckhoff EP1008-0001 - EtherCAT Box - Weight: approx. 165 g; Operating Temperature: -25…+60°C; Storage Temperature: -40…+85°C.
Overview
The Beckhoff EP1008-0001 is part of the EtherCAT Box range in our industrial catalog. The manufacturer's published data for this part number specifies Weight: approx. 165 g and Operating Temperature: -25…+60°C.
ATEX:
II 3 G Ex ec IIC T4 Gc
II 3 D Ex tc IIIC T135 °C Dc
IECEx:
Ex ec IIC T4 Gc
Ex tc IIIC T135 °C Dc
The specification set recorded for this part number covers Storage Temperature: -40…+85°C; Protocol: EtherCAT; Approvals/markings: CE, CCC, UL, ATEX, IECEx; Vibration/shock resistance: conforms to EN 60068-2-6/EN 60068-2-27; EMC immunity/emission: conforms to EN 61000-6-2/EN 61000-6-4; Bus interface: 2 x M8 socket, 4-pin, a-coded, shielded; Current consumption from US: 120 mA; Electrical isolation: 500 V; Protect. rating/installation pos.: IP65/66/67 (conforms to EN 60529)/variable; Number of inputs: 8; Specification: EN 61131-2, type 1/3; Input filter: 3 ms. See the Specifications tab on this page for the full technical table.
Specifications
| “0” signal voltage | -3…+5 V (EN 61131-2, type 3) |
|---|---|
| “1” signal voltage | 11…30 V (EN 61131-2, type 3) |
| Approvals/markings | CE, CCC, UL, ATEX, IECEx |
| Bus interface | 2 x M8 socket, 4-pin, a-coded, shielded |
| Current consumption from US | 120 mA |
| Distributed clocks | – |
| Electrical isolation | 500 V |
| EMC immunity/emission | conforms to EN 61000-6-2/EN 61000-6-4 |
| Ex marking | ATEX: II 3 G Ex ec IIC T4 Gc II 3 D Ex tc IIIC T135 °C Dc IECEx: Ex ec IIC T4 Gc Ex tc IIIC T135 °C Dc |
| Input connections | M8 x 1, 3-pin, A-coded |
| Input current | typ. 3 mA (EN 61131-2, type 3) |
| Input filter | 3 ms |
| Nominal input voltage | 24 V DC (-15%/+20%) |
| Number of inputs | 8 |
| Operating Temperature | -25…+60°C |
| Power supply connection | feed: 1 x M8 male socket, 4-pin, a-coded; downstream connection: 1 x M8 female socket, 4-pin, a-coded |
| Protect. rating/installation pos. | IP65/66/67 (conforms to EN 60529)/variable |
| Protocol | EtherCAT |
| Sensor supply | from control voltage, max. 0.5 A, short-circuit proof in total |
| Specification | EN 61131-2, type 1/3 |
| Storage Temperature | -40…+85°C |
| Vibration/shock resistance | conforms to EN 60068-2-6/EN 60068-2-27 |
| Weight | approx. 165 g |
Product details
| Manufacturer | Beckhoff |
|---|---|
| Manufacturer part number | EP1008-0001 |
| KKM catalog reference | BECKHOFF-EP1008-0001 |
| Product category | Fieldbus Modules & Gateways |
| Published specifications | 23 attributes listed |
| Related part numbers | 2 other part numbers in this family |
Request a quote for this part
Email [email protected] or call (825) 454-5367 for pricing and availability.
Frequently Asked Questions
How much does EP1008-0001 cost?
EP1008-0001 is available for direct purchase at CA$414.16 (CAD), shown on this page with an Add to Cart button. Larger quantities or custom terms — email [email protected] for a volume quote.
Who manufactures the EP1008-0001?
EP1008-0001 is a Beckhoff part. KKM Solutions sources Beckhoff components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What is the lifecycle status of EP1008-0001?
We do not hold a published lifecycle status for EP1008-0001. Beckhoff's publishes whether a catalog number is current, superseded or end-of-life on its own product page, and our order desk confirms the current status with the manufacturer at quote time — you are told if the part is superseded or discontinued before you commit. Either way we source current-production, superseded and long-obsolete parts the same way; where a part is genuinely unavailable we identify a form-fit-function equivalent. Send the part number through the quote form on this page, or use our obsolete part lookup at https://kkmsolutions.com/tools/obsolete-part-lookup/.
What are the key specifications of EP1008-0001?
Key specifications include “0” signal voltage: -3…+5 V (EN 61131-2, type 3); “1” signal voltage: 11…30 V (EN 61131-2, type 3); Approvals/markings: CE, CCC, UL, ATEX, IECEx; Bus interface: 2 x M8 socket, 4-pin, a-coded, shielded. The full specification table on this page lists every published attribute for this part.
How quickly can EP1008-0001 ship?
In-stock items are dispatched the same business day for orders placed by 11 AM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Variants & Related Part Numbers
Other Beckhoff part numbers in this family:
Related Products
Beckhoff Beckhoff EtherCAT Box, 8-channel digital input, 24 V DC,…
Beckhoff Beckhoff EtherCAT Box, 8-channel digital output, 24 V DC,…

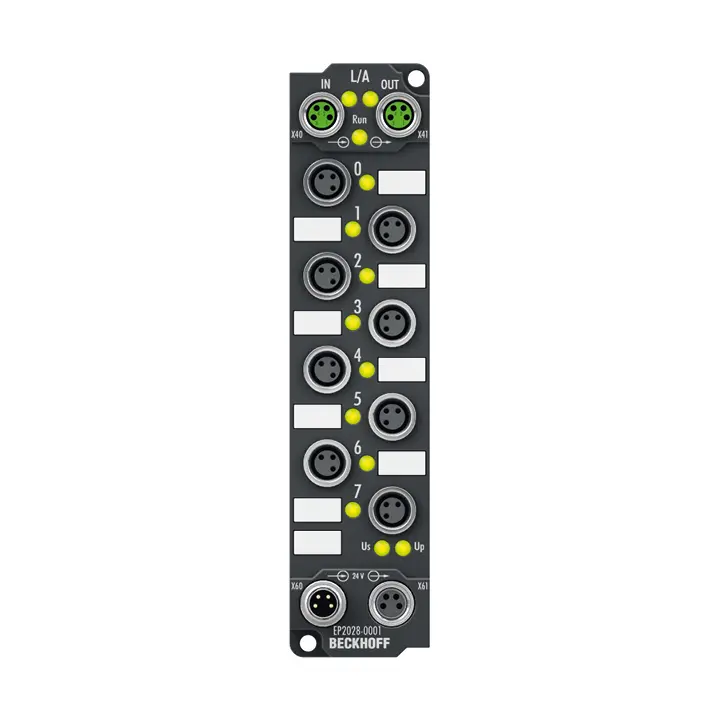

Beckhoff Beckhoff EtherCAT Box, 8-channel digital output, 24 V DC,…
Beckhoff Beckhoff EtherCAT Box, 8-channel digital combi, 24 V DC,…

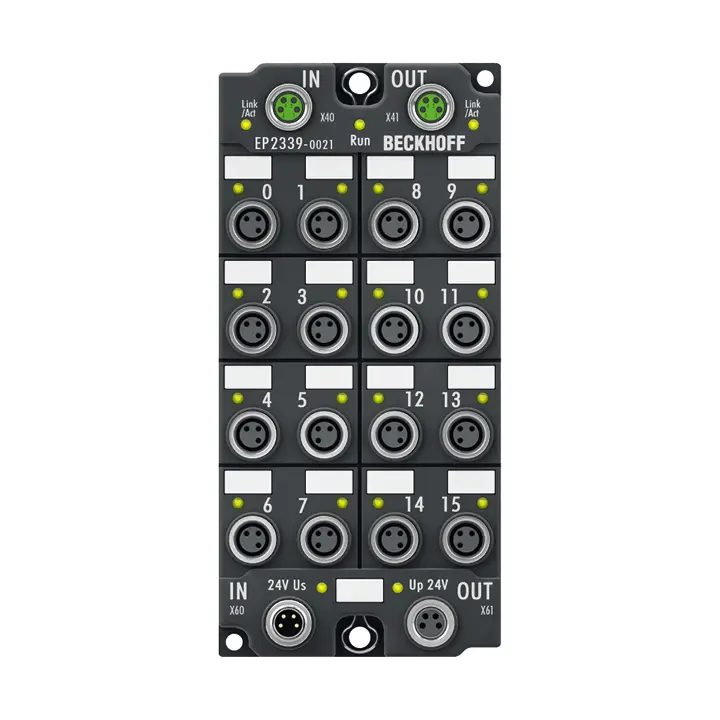

Beckhoff Beckhoff EtherCAT Box, 16-channel digital combi, 24 V DC,…
