Beckhoff AX5206-0000-0200 Beckhoff
Overview

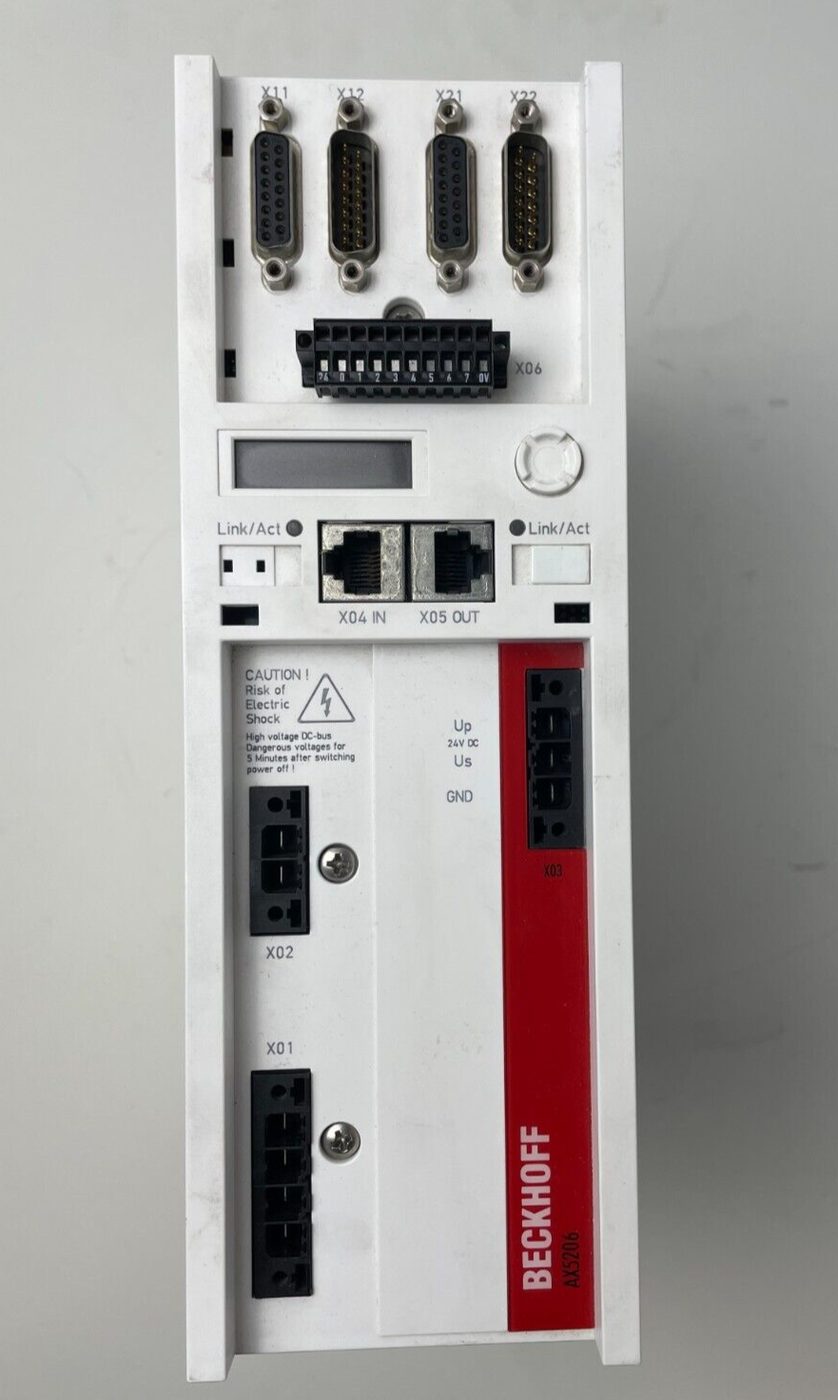

The Beckhoff AX5206-0000-0200 is a dual-channel digital compact servo drive designed for precise and dynamic motion control in industrial automation systems. Part of the AX5000 series, it integrates a power supply unit, EMC filter, and DC link capacitors into a compact housing. The drive supports two independent servo axes with cascaded control loops for fast and highly dynamic positioning tasks. It communicates via EtherCAT fieldbus for high-performance system integration with PC-based control technology. The multi-feedback interface supports all common encoder standards including SinCos, resolver, EnDat 2.1, HIPERFACE, BiSS B, and OCT. The AX5206 is suitable for multi-axis robotics, CNC platforms, packaging machinery, and applications requiring synchronized motion control in compact installations. Item Details Brand Name: Beckhoff Manufacturer: Beckhoff Automation Item Type Name: Digital Compact Servo Drive, 2-Channel Product Family / Series: AX5000 Digital Compact Servo Drives Part Number: AX5206-0000-0200 Channels: 2 Product Specifications rated_supply_voltage: 3 x 100-480 V AC ±10% dc_link_voltage_max: 875 V DC rated_output_current_per_channel: 6 A peak_output_current_per_channel: 13 A control_voltage: 24 V DC communication_interface: EtherCAT feedback_support: SinCos, Resolver, EnDat 2.1, HIPERFACE, BiSS B, OCT protection_class: IP20 operating_temperature: 0 to +50 °C mounting_type: DIN-rail Additional Details Certifications / Approvals: CE, cULus Safety Functions: Optional AX58xx for EN ISO 13849-1:2015 (Cat. 4, PL e), EN 61508:2010 (SIL 3), EN 62061:2005+A1:2013/A2:2015 (SIL CL3) Measurements Width: 92 mm Height: 274 mm Depth: 232 mm
Specifications
| Condition | Never Used Surplus |
|---|
Product details
| Manufacturer | Beckhoff |
|---|---|
| Manufacturer part number | AX5206-0000-0200 |
| KKM catalog reference | BECKHOFF-AX5206-0000-0200 |
| Published specifications | 1 attribute listed |
| Related part numbers | 5 other part numbers in this family |
Request a quote for this part
Email [email protected] or call (825) 454-5367 for pricing and availability.
Frequently Asked Questions
How much does AX5206-0000-0200 cost?
AX5206-0000-0200 is listed at CA$3,907.32 (CAD) and can be ordered directly from this page with Add to Cart. That figure is a reference price and can change: your card is authorized at checkout and charged only once our order desk confirms the part, stock, and final price, and we email you first if anything has moved. Larger quantities or custom terms — email [email protected] for a volume quote.
Who manufactures the AX5206-0000-0200?
AX5206-0000-0200 is a Beckhoff part. KKM Solutions sources Beckhoff components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
Is AX5206-0000-0200 discontinued, and can I still get one?
KKM Solutions does not publish a manufacturer lifecycle status for AX5206-0000-0200 — check Beckhoff's own product page for whether it is current, superseded, or end-of-life. It does not change what we can do: we source current-production, superseded and long-obsolete parts the same way, and where a part is genuinely unavailable we identify a form-fit-function equivalent. Send the part number through the quote form on this page, or use our obsolete part lookup at https://kkmsolutions.com/tools/obsolete-part-lookup/.
How quickly can AX5206-0000-0200 ship?
In-stock items are dispatched the same business day for orders placed by 11 AM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
