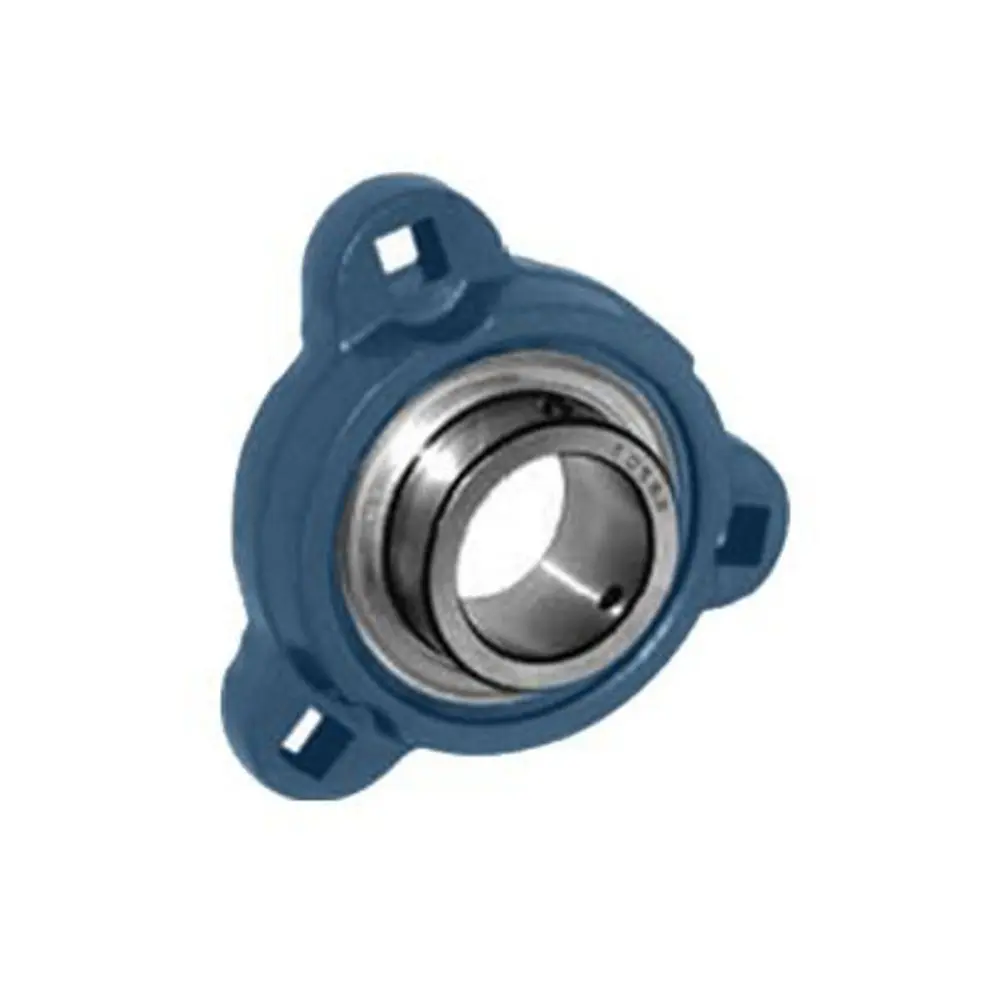

Bearings Limited SBFCT204-12G — Flange Ball Bearing Units
Bearings Limited SBFCT204-12G - Flange Ball Bearing Units - Series: Ductile Iron Set Screw Locking 3-Bolt Flange; Housing material: Ductile Iron; Overall Width: 34 mm.
In our catalog, the SBFCT204-12G from Bearings Limited is listed under the Flange Ball Bearing Units category. The manufacturer's published data for this part number specifies Series: Ductile Iron Set Screw Locking 3-Bolt Flange and Housing material: Ductile Iron.
Key manufacturer data on file for this item includes Overall Width: 34 mm; Dynamic Load Rating: 2878; Static Load Rating: 1495; Operating temperature - max: 248 °F; Bore Diameter: 0.75 in; Industry Standard: AFBMA; Bearing Material: AISI 52100; Closure Type: Dual Seals (K-Type); Grease Type: NLGI Grade 2 Lithium Based Bearing Grease; Mounting Type: Three (3) Bolt Flange; Locking Type: Set Screw; Length Through Bore: 25 mm. See the Specifications tab on this page for the full technical table.
| Bearing Material | AISI 52100 |
|---|---|
| Bore Diameter | 0.75 in |
| Closure Type | Dual Seals (K-Type) |
| Duty Type | Light |
| Dynamic Load Rating | 2878 |
| Grease Type | NLGI Grade 2 Lithium Based Bearing Grease |
| Housing material | Ductile Iron |
| Industry Standard | AFBMA |
| Length Through Bore | 25 mm |
| Locking Type | Set Screw |
| Mounting Type | Three (3) Bolt Flange |
| Operating temperature - max | 248 °F |
| Overall Width | 34 mm |
| Relubricatable | Relubricatable |
| Series | Ductile Iron Set Screw Locking 3-Bolt Flange |
| Static Load Rating | 1495 |
Request a quote for this part
Email [email protected] or call (825) 454-5367 for pricing and availability.
Frequently Asked Questions
How do I get pricing for SBFCT204-12G?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email [email protected], and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the SBFCT204-12G?
SBFCT204-12G is a Bearings Limited part. KKM Solutions sources Bearings Limited components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
Is SBFCT204-12G discontinued, and can I still get one?
KKM Solutions does not publish a manufacturer lifecycle status for SBFCT204-12G — check Bearings Limited's own product page for whether it is current, superseded, or end-of-life. It does not change what we can do: we source current-production, superseded and long-obsolete parts the same way, and where a part is genuinely unavailable we identify a form-fit-function equivalent. Send the part number through the quote form on this page, or use our obsolete part lookup at https://kkmsolutions.com/tools/obsolete-part-lookup/.
What are the key specifications of SBFCT204-12G?
Key specifications include Bearing Material: AISI 52100; Bore Diameter: 0.75 in; Closure Type: Dual Seals (K-Type); Duty Type: Light. The full specification table on this page lists every published attribute for this part.
How quickly can SBFCT204-12G ship?
In-stock items are dispatched the same business day for orders placed by 11 AM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
