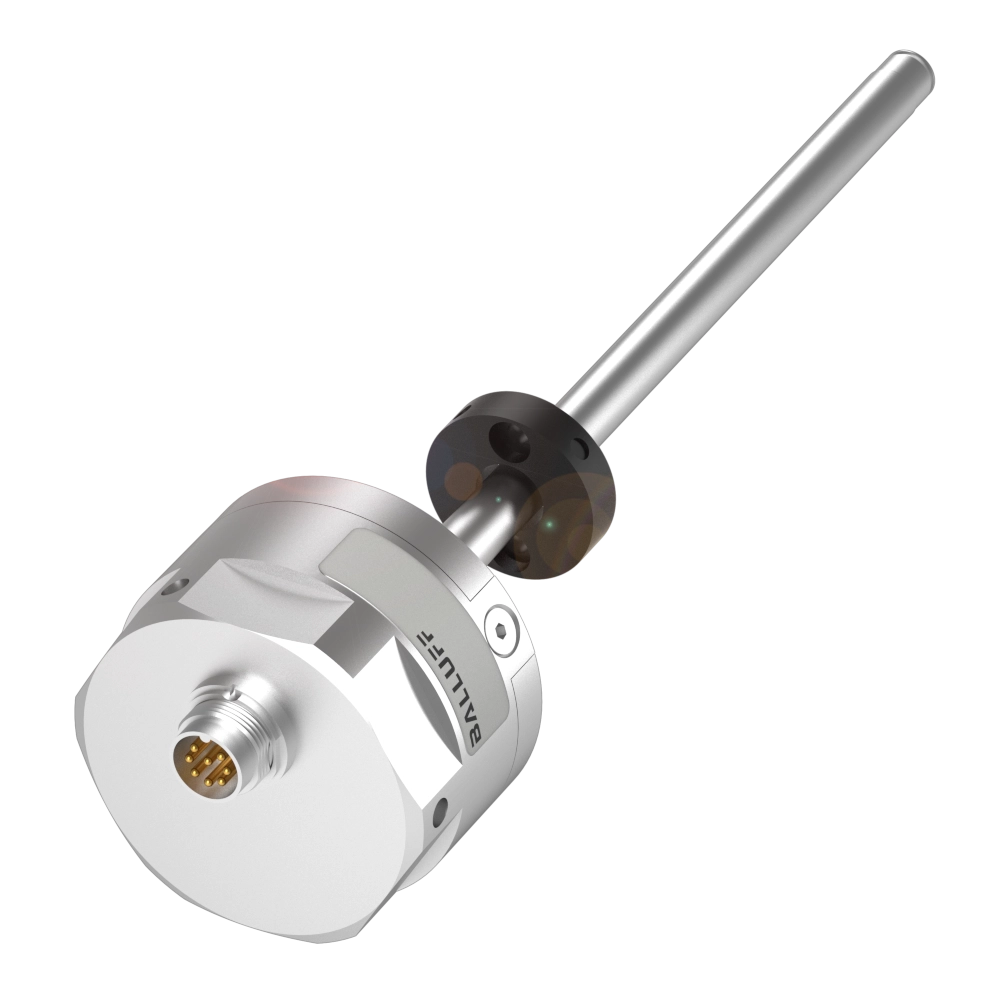

BTL2KFT — Balluff BTL7-E500-M0222-W-MA000-K05
KKM Solutions is an independent parts distributor, not an authorized Balluff dealer — how we source.
Overview
Part number BTL2KFT from Balluff, listed in Linear Motion. Specifications on file: Ambient temperature -40...85 °C; Analog output Analog, current; Approval/Conformity CE, UKCA, cULus, WEEE; Connection Cable, 5.0 m, PUR. KKM Solutions quotes this part with pricing and availability confirmed per order.
BTL2KFT (BTL7-E500-M0222-W-MA000-K05) - Robust magnetostrictive linear position sensors - List price USA: 1,692.80 USD - Style: Compact rod series, Mounting part: Threaded flange 3/4-16UNF, Housing material: 1.4305 stainless steel, Magnets, number max.: 1, Connection: Cable, 5.0 m, PUR, Analog output: Analog, current, Measuring range: 222 mm, Sampling frequency max.: 500 Hz, Non-linearity max.: ±0.01 % FS, Repeat accuracy: ± 10 µm, Operating voltage Ub: 10...30 VDC, Ambient temperature: -40...85 °C, IP rating: IP68, Approval/Conformity: CE, UKCA, cULus, WEEE - BALLUFF USA
Specifications
| Ambient temperature | -40...85 °C |
|---|---|
| Analog output | Analog, current |
| Approval/Conformity | CE, UKCA, cULus, WEEE |
| Connection | Cable, 5.0 m, PUR |
| Housing material | 1.4305 stainless steel |
| IP Rating | IP68 |
| Magnets, number max. | 1 |
| Measuring range | 222 mm |
| Mounting part | Threaded flange 3/4-16UNF |
| Non-linearity max. | ±0.01 % FS |
| Operating voltage Ub | 10...30 VDC |
| Repeat accuracy | ± 10 µm |
| Sampling frequency max. | 500 Hz |
| Style | Compact rod series |
Product details
| Manufacturer | Balluff |
|---|---|
| Manufacturer part number | BTL2KFT |
| Product category | Linear Motion |
| Published specifications | 14 attributes listed |
| Related part numbers | 1 other part number in this family |
Request a quote for this part
Email orderdesk@kkmsolutions.com or call (825) 454-5367 for pricing and availability.
Frequently Asked Questions
How do I get pricing for BTL2KFT?
This part is quoted on request, so no price is listed for it here. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the BTL2KFT?
BTL2KFT is made by Balluff and is listed in our Linear Motion category. KKM Solutions is an independent distributor, not an authorized Balluff dealer: we source the exact Balluff part number BTL2KFT, and the quote confirms condition and lead time before you order.
Is the BTL2KFT new and genuine?
Parts we supply are new and genuine unless the quote expressly states otherwise. Where a part is new-old-stock, from excess inventory, refurbished or open-box, the quote says so before you approve it.
What warranty comes with the BTL2KFT, and can I return it?
Parts we supply are warranted against manufacturing defects for 1 year from the date of delivery; where the manufacturer's own warranty is longer, the manufacturer's warranty applies. The warranty covers repair, replacement, or credit of the defective part and does not cover normal wear items, misapplication, improper installation, or consequential damages. Contact us within 30 days of delivery before returning anything — all returns need a return authorization from the order desk.
What is the lifecycle status of BTL2KFT?
No published lifecycle status is on file for BTL2KFT. Balluff lists whether a catalog number is current, superseded or end-of-life on its own product page, and our order desk confirms the status with the manufacturer at quote time, before you commit. Send the part number through the quote form on this page.
What are the key specifications of BTL2KFT?
Key specifications include Ambient temperature: -40...85 °C; Analog output: Analog, current; Approval/Conformity: CE, UKCA, cULus, WEEE; Connection: Cable, 5.0 m, PUR. The full specification table on this page lists every published attribute for this part.
What voltage does BTL2KFT use?
Per the published specification for BTL2KFT: Operating voltage Ub: 10...30 VDC. Confirm against the full specification table on this page, or ask our order desk to verify it with the manufacturer at quote time.
What is the IP rating of BTL2KFT?
Per the published specification for BTL2KFT: IP Rating: IP68. Confirm against the full specification table on this page, or ask our order desk to verify it with the manufacturer at quote time.
What material is BTL2KFT made of?
Per the published specification for BTL2KFT: Housing material: 1.4305 stainless steel. Confirm against the full specification table on this page, or ask our order desk to verify it with the manufacturer at quote time.
How quickly can BTL2KFT ship?
Lead time for BTL2KFT is quoted per order and confirmed on your quote, which our order desk sends within 1 business day. For a line-down emergency, call the 24/7 order desk at (825) 454-5367.
