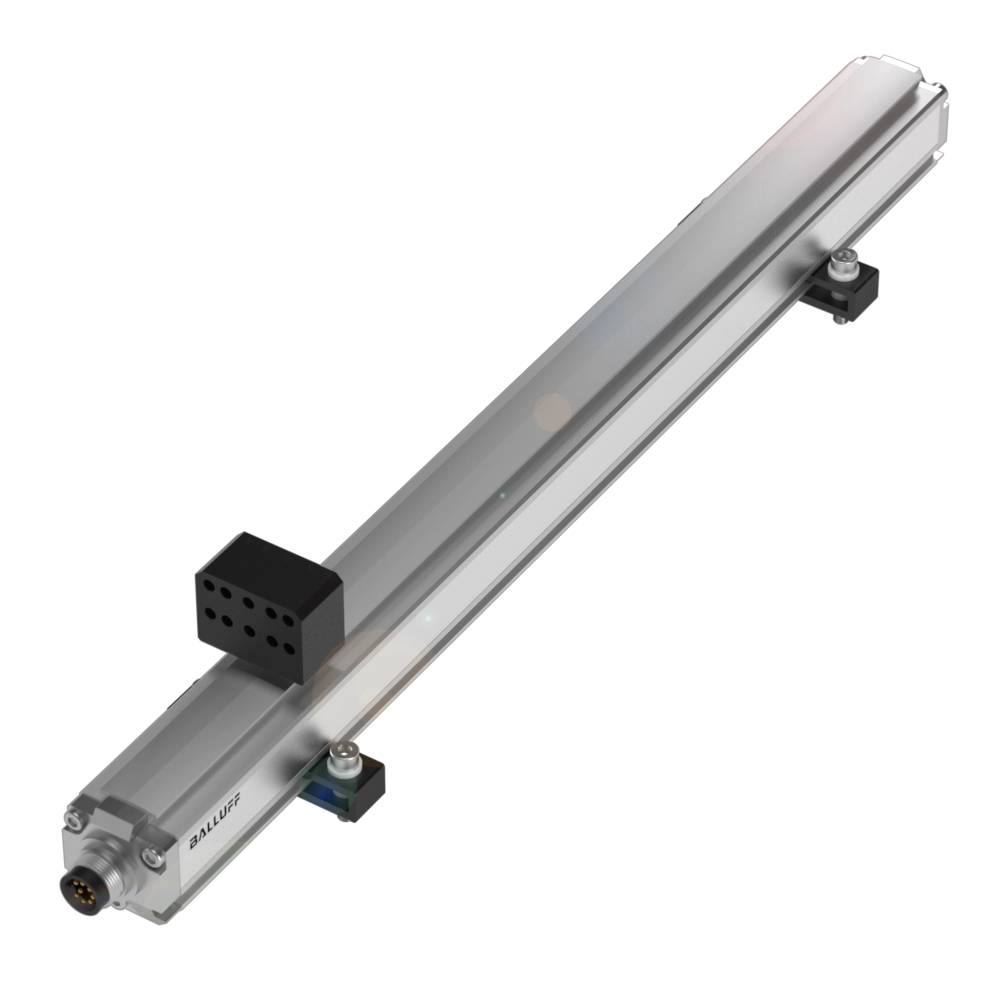

Balluff BTL7-P511-M1880-P-SA443-S32
BTL2C5Y (BTL7-P511-M1880-P-SA443-S32) - Magnetostrictive linear position sensors in profile design - List price USA: 1,441.45 USD - Style: Profile series, Mounting part: Mounting clamps, Housing material: Aluminum, Anodized, Magnets, number max.: 16, Connection: Connector, M16x0.75, 8-pin, Interface: Start/Stop;Start/Stop neg., Measuring range: 1880 mm, Sampling frequency max.: 697 Hz, Non-linearity max.: ±0.01 % FS, Repeat accuracy: ≤ ± 5 µm (typ. ± 2.5 µm), Operating voltage Ub: 10...30 VDC, Ambient temperature: -40...85 °C, IP rating: IP67, Approval/Conformity: CE, UKCA, cULus, WEEE - BALLUFF USA
| Ambient temperature | -40...85 °C |
|---|---|
| Approval/Conformity | CE, UKCA, cULus, WEEE |
| Connection | Connector, M16x0.75, 8-pin |
| Housing material | Aluminum, Anodized |
| Interface | Start/Stop;Start/Stop neg. |
| IP Rating | IP67 |
| Magnets, number max. | 16 |
| Measuring range | 1880 mm |
| Mounting part | Mounting clamps |
| Non-linearity max. | ±0.01 % FS |
| Operating voltage Ub | 10...30 VDC |
| Repeat accuracy | ≤ ± 5 µm (typ. ± 2.5 µm) |
| Sampling frequency max. | 697 Hz |
| Style | Profile series |
Frequently Asked Questions
How do I get pricing for BTL2C5Y?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the BTL2C5Y?
BTL2C5Y is a Balluff part. KKM Solutions sources Balluff components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of BTL2C5Y?
Key specifications include Ambient temperature: -40...85 °C; Approval/Conformity: CE, UKCA, cULus, WEEE; Connection: Connector, M16x0.75, 8-pin; Housing material: Aluminum, Anodized. The full specification table on this page lists every published attribute for this part.
How quickly can BTL2C5Y ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
