Balluff BTL7-E500-M0102-Z-SA418-S32
BTL2196 (BTL7-E500-M0102-Z-SA418-S32) - Magnetostrictive linear position sensors in rod design - List price USA: 1,690.32 USD - Style: Rod series, Mounting part: Threaded flange 3/4-16UNF, Housing material: Aluminum, Anodized, Magnets, number max.: 1, Connection: Connector, M16x0.75, 8-pin, Analog output: Analog, current 4…20 mA, Measuring range: 102 mm, Sampling frequency max.: 1000 Hz, Repeat accuracy: ± 5 µm, Operating voltage Ub: 10...30 VDC, Ambient temperature: -40...85 °C, IP rating: IP67, Approval/Conformity: CE, UKCA, cULus, WEEE - BALLUFF USA
| Ambient temperature | -40...85 °C |
|---|---|
| Analog output | Analog, current 4…20 mA |
| Approval/Conformity | CE, UKCA, cULus, WEEE |
| Connection | Connector, M16x0.75, 8-pin |
| Housing material | Aluminum, Anodized |
| IP Rating | IP67 |
| Magnets, number max. | 1 |
| Measuring range | 102 mm |
| Mounting part | Threaded flange 3/4-16UNF |
| Operating voltage Ub | 10...30 VDC |
| Repeat accuracy | ± 5 µm |
| Sampling frequency max. | 1000 Hz |
| Style | Rod series |
Frequently Asked Questions
How do I get pricing for BTL2196?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the BTL2196?
BTL2196 is a Balluff part. KKM Solutions sources Balluff components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of BTL2196?
Key specifications include Ambient temperature: -40...85 °C; Analog output: Analog, current 4…20 mA; Approval/Conformity: CE, UKCA, cULus, WEEE; Connection: Connector, M16x0.75, 8-pin. The full specification table on this page lists every published attribute for this part.
How quickly can BTL2196 ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products
Balluff Balluff BTL7-E500-M0610-Z-SA418-S32
Balluff Balluff BTL7-E500-M0152-Z-SA418-S32
Balluff Balluff BTL7-E500-M0711-Z-SA418-S32

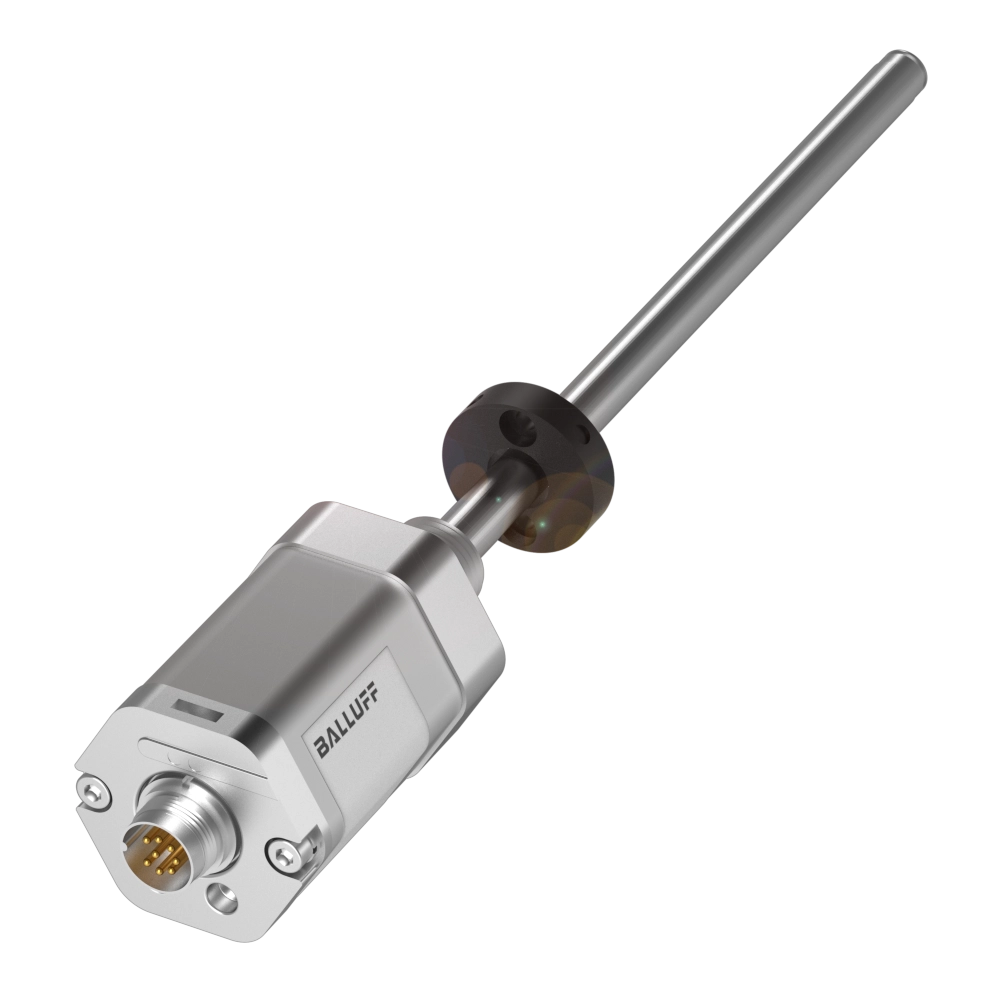

Balluff Balluff BTL7-E500-M0153-Z-SA418-S32

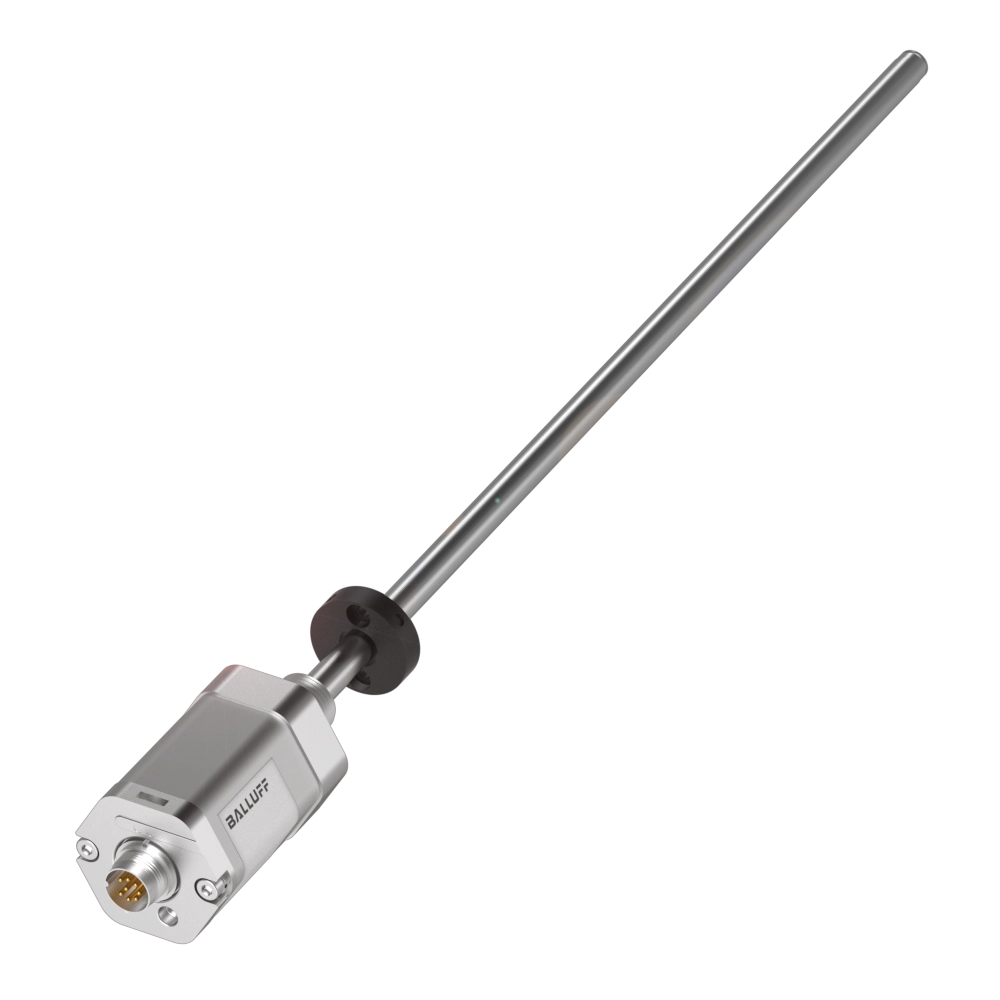

Balluff Balluff BTL7-E500-M0254-Z-SA418-S32
