BTL20UM (BTL7-AH100-M1880-B-S115) - Magnetostrictive linear position sensors in rod design - Style: Rod series, Mounting part: Threaded flange M18x1.5, Housing material: Aluminum, Anodized, Magnets, number max.: 1, Connection: Connector, M12x1, 8-pin, Analog output: Analog, current 4…20 mA, Measuring range: 1880 mm, Sampling frequency max.: 500 Hz, Non-linearity max.: ±0.04 % FS, Repeat accuracy: ± 5 µm, Operating voltage Ub: 20...28 VDC, Ambient temperature: -25...75 °C, IP rating: IP67, Approval/Conformity: CE, UKCA, WEEE - BALLUFF USA
| Ambient temperature | -25...75 °C |
|---|---|
| Analog output | Analog, current 4…20 mA |
| Approval/Conformity | CE, UKCA, WEEE |
| Connection | Connector, M12x1, 8-pin |
| Housing material | Aluminum, Anodized |
| IP Rating | IP67 |
| Magnets, number max. | 1 |
| Measuring range | 1880 mm |
| Mounting part | Threaded flange M18x1.5 |
| Non-linearity max. | ±0.04 % FS |
| Operating voltage Ub | 20...28 VDC |
| Repeat accuracy | ± 5 µm |
| Sampling frequency max. | 500 Hz |
| Style | Rod series |
Request a quote for this part
Email [email protected] or call (825) 454-5367 for pricing and availability.
Frequently Asked Questions
How do I get pricing for BTL20UM?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email [email protected], and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the BTL20UM?
BTL20UM is a Balluff part. KKM Solutions sources Balluff components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
Is BTL20UM discontinued, and can I still get one?
KKM Solutions does not publish a manufacturer lifecycle status for BTL20UM — check Balluff's own product page for whether it is current, superseded, or end-of-life. It does not change what we can do: we source current-production, superseded and long-obsolete parts the same way, and where a part is genuinely unavailable we identify a form-fit-function equivalent. Send the part number through the quote form on this page, or use our obsolete part lookup at https://kkmsolutions.com/tools/obsolete-part-lookup/.
What are the key specifications of BTL20UM?
Key specifications include Ambient temperature: -25...75 °C; Analog output: Analog, current 4…20 mA; Approval/Conformity: CE, UKCA, WEEE; Connection: Connector, M12x1, 8-pin. The full specification table on this page lists every published attribute for this part.
How quickly can BTL20UM ship?
In-stock items are dispatched the same business day for orders placed by 11 AM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Variants & Related Part Numbers
Other Balluff part numbers in this family:
Related Products
Balluff Balluff BTL7-AH100-M1000-B-S115

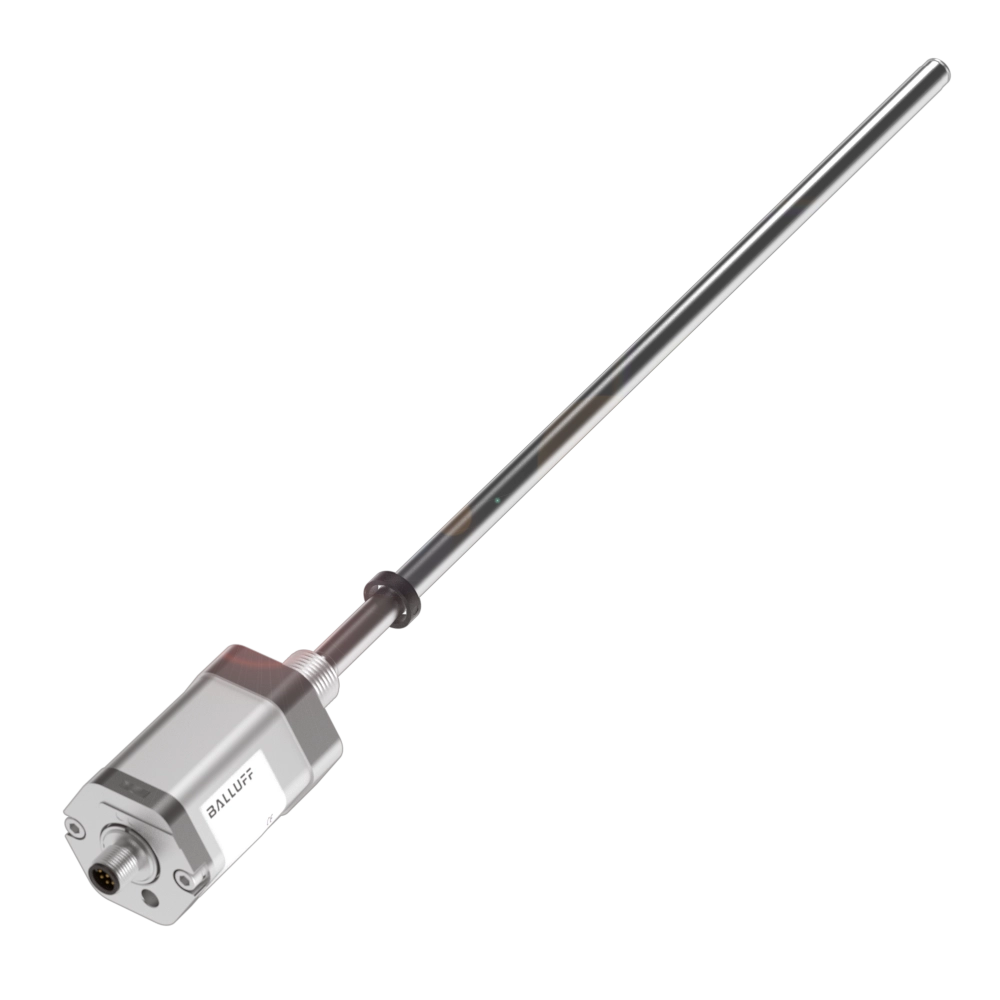

Balluff Balluff BTL7-AH100-M0670-B-S115
