BTL0PH7 — Balluff BTL6-E500-M1700-PF-S115
KKM Solutions is an independent parts distributor, not an authorized Balluff dealer — how we source.
Overview
Part number BTL0PH7 from Balluff, listed in Safety Signs & Tags. Specifications on file: Ambient temperature -25...70 °C; Analog output Analog, current 4…20 mA; Approval/Conformity CE, UKCA, cULus, WEEE; Connection Connector, M12x1, 8-pin. KKM Solutions quotes this part with pricing and availability confirmed per order.
BTL0PH7 (BTL6-E500-M1700-PF-S115) - Magnetostrictive linear position sensors in profile design - Style: Profile series, Mounting part: Mounting clamps, Housing material: Aluminum, Anodized, Magnets, number max.: 1, Connection: Connector, M12x1, 8-pin, Analog output: Analog, current 4…20 mA, Measuring range: 1700 mm, Sampling frequency max.: 500 Hz, Resolution: ≤ 700 nA, Non-linearity max.: ±0.04 % FS, Repeat accuracy: ± 0.002 % FS, Operating voltage Ub: 10...30 VDC, Ambient temperature: -25...70 °C, IP rating: IP67, Approval/Conformity: CE, UKCA, cULus, WEEE - BALLUFF USA
Specifications
| Ambient temperature | -25...70 °C |
|---|---|
| Analog output | Analog, current 4…20 mA |
| Approval/Conformity | CE, UKCA, cULus, WEEE |
| Connection | Connector, M12x1, 8-pin |
| Housing material | Aluminum, Anodized |
| IP Rating | IP67 |
| Magnets, number max. | 1 |
| Measuring range | 1700 mm |
| Mounting part | Mounting clamps |
| Non-linearity max. | ±0.04 % FS |
| Operating voltage Ub | 10...30 VDC |
| Repeat accuracy | ± 0.002 % FS |
| Resolution | ≤ 700 nA |
| Sampling frequency max. | 500 Hz |
| Style | Profile series |
Product details
| Manufacturer | Balluff |
|---|---|
| Manufacturer part number | BTL0PH7 |
| Product category | Safety Signs & Tags |
| Published specifications | 15 attributes listed |
| Related part numbers | 1 other part number in this family |
Request a quote for this part
Email orderdesk@kkmsolutions.com or call (825) 454-5367 for pricing and availability.
Frequently Asked Questions
How do I get pricing for BTL0PH7?
This part is quoted on request, so no price is listed for it here. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the BTL0PH7?
BTL0PH7 is made by Balluff and is listed in our Safety Signs & Tags category. KKM Solutions is an independent distributor, not an authorized Balluff dealer: we source the exact Balluff part number BTL0PH7, and the quote confirms condition and lead time before you order.
Is the BTL0PH7 new and genuine?
Parts we supply are new and genuine unless the quote expressly states otherwise. Where a part is new-old-stock, from excess inventory, refurbished or open-box, the quote says so before you approve it.
What warranty comes with the BTL0PH7, and can I return it?
Parts we supply are warranted against manufacturing defects for 1 year from the date of delivery; where the manufacturer's own warranty is longer, the manufacturer's warranty applies. The warranty covers repair, replacement, or credit of the defective part and does not cover normal wear items, misapplication, improper installation, or consequential damages. Contact us within 30 days of delivery before returning anything — all returns need a return authorization from the order desk.
What is the lifecycle status of BTL0PH7?
No published lifecycle status is on file for BTL0PH7. Balluff lists whether a catalog number is current, superseded or end-of-life on its own product page, and our order desk confirms the status with the manufacturer at quote time, before you commit. Send the part number through the quote form on this page.
What are the key specifications of BTL0PH7?
Key specifications include Ambient temperature: -25...70 °C; Analog output: Analog, current 4…20 mA; Approval/Conformity: CE, UKCA, cULus, WEEE; Connection: Connector, M12x1, 8-pin. The full specification table on this page lists every published attribute for this part.
What voltage does BTL0PH7 use?
Per the published specification for BTL0PH7: Operating voltage Ub: 10...30 VDC. Confirm against the full specification table on this page, or ask our order desk to verify it with the manufacturer at quote time.
What is the IP rating of BTL0PH7?
Per the published specification for BTL0PH7: IP Rating: IP67. Confirm against the full specification table on this page, or ask our order desk to verify it with the manufacturer at quote time.
What material is BTL0PH7 made of?
Per the published specification for BTL0PH7: Housing material: Aluminum, Anodized. Confirm against the full specification table on this page, or ask our order desk to verify it with the manufacturer at quote time.
How quickly can BTL0PH7 ship?
Lead time for BTL0PH7 is quoted per order and confirmed on your quote, which our order desk sends within 1 business day. For a line-down emergency, call the 24/7 order desk at (825) 454-5367.
Variants & Related Part Numbers
Other Balluff part numbers in this family:
Frequently Searched Balluff Part Numbers
Related Products
Balluff Balluff BTL6-E500-M1000-PF-S115

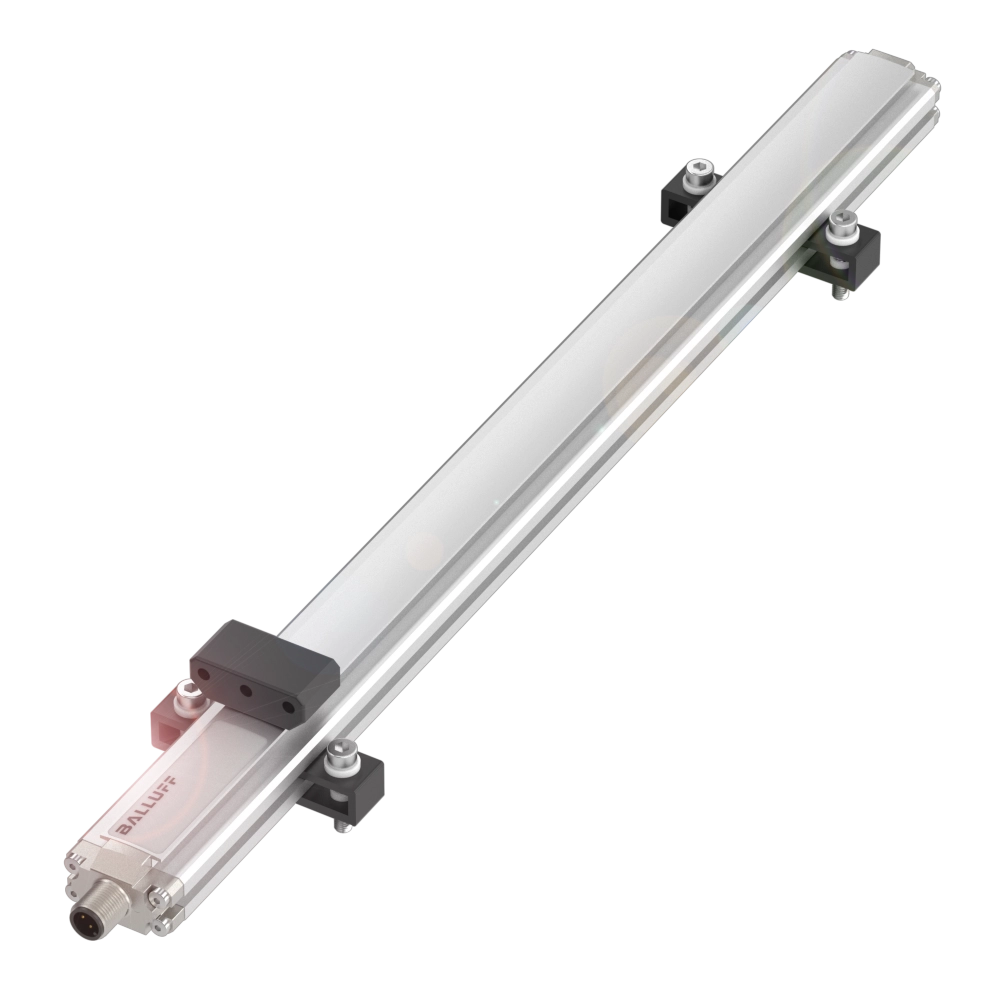

Balluff Balluff BTL6-A500-M0750-PF-S115
