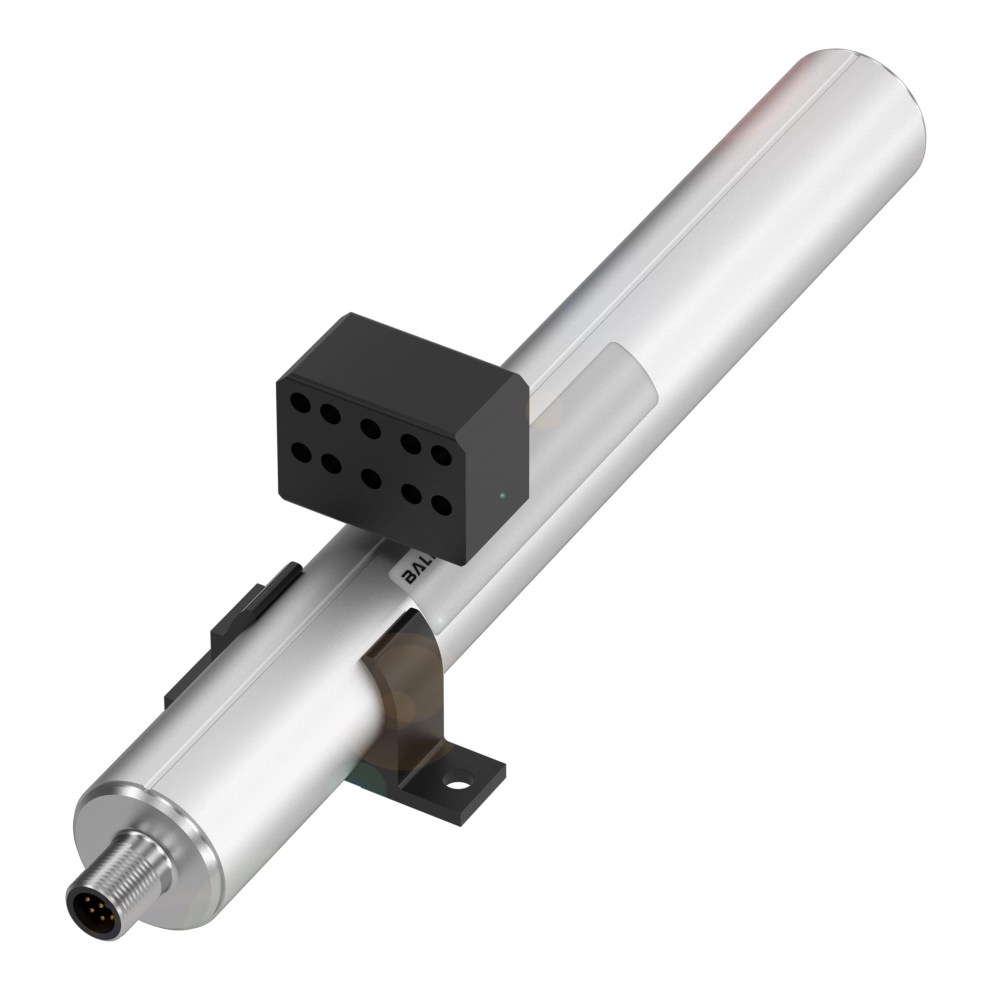

BTL09N4 (BTL6-V11V-M0200-A1-S115) - Magnetostrictive linear position sensors in profile design - Style: Profile series, Mounting part: Mounting clamps, Housing material: Aluminum, Anodized, Magnets, number max.: 3, Connection: Connector, M12x1, 8-pin, Interface: Varan VNO length measuring system V1.0, Measuring range: 200 mm, Sampling frequency max.: 3500 Hz, Non-linearity max.: ±200 µm, Repeat accuracy: ≤ 30 µm, Operating voltage Ub: 20...28 VDC, Ambient temperature: 0...70 °C, IP rating: IP67, Approval/Conformity: CE, UKCA, cULus, WEEE - BALLUFF USA
| Ambient temperature | 0...70 °C |
|---|---|
| Approval/Conformity | CE, UKCA, cULus, WEEE |
| Connection | Connector, M12x1, 8-pin |
| Housing material | Aluminum, Anodized |
| Interface | Varan VNO length measuring system V1.0 |
| IP Rating | IP67 |
| Magnets, number max. | 3 |
| Measuring range | 200 mm |
| Mounting part | Mounting clamps |
| Non-linearity max. | ±200 µm |
| Operating voltage Ub | 20...28 VDC |
| Repeat accuracy | ≤ 30 µm |
| Sampling frequency max. | 3500 Hz |
| Style | Profile series |
Request a quote for this part
Email [email protected] or call (825) 454-5367 for pricing and availability.
Frequently Asked Questions
How do I get pricing for BTL09N4?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email [email protected], and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the BTL09N4?
BTL09N4 is a Balluff part. KKM Solutions sources Balluff components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
Is BTL09N4 discontinued, and can I still get one?
KKM Solutions does not publish a manufacturer lifecycle status for BTL09N4 — check Balluff's own product page for whether it is current, superseded, or end-of-life. It does not change what we can do: we source current-production, superseded and long-obsolete parts the same way, and where a part is genuinely unavailable we identify a form-fit-function equivalent. Send the part number through the quote form on this page, or use our obsolete part lookup at https://kkmsolutions.com/tools/obsolete-part-lookup/.
What are the key specifications of BTL09N4?
Key specifications include Ambient temperature: 0...70 °C; Approval/Conformity: CE, UKCA, cULus, WEEE; Connection: Connector, M12x1, 8-pin; Housing material: Aluminum, Anodized. The full specification table on this page lists every published attribute for this part.
How quickly can BTL09N4 ship?
In-stock items are dispatched the same business day for orders placed by 11 AM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
