Balluff BTL5-H112-M1500-P-S94
BTL03EW (BTL5-H112-M1500-P-S94) - Magnetostrictive linear position sensors in profile design - Style: Profile series, Mounting part: Mounting clamps, Housing material: Aluminum, Anodized, Magnets, number max.: 4, Connection: Connector, M12x1, 5-pin, Connection 1: M12x1, 5-pin, Connection 2: M12x1, Interface: CANopen DS301, Measuring range: 1500 mm, Resolution: ≤ 5 µm, Non-linearity max.: ±30 µm, Repeat accuracy: ± 1 LSB, Operating voltage Ub: 20...28 VDC, Ambient temperature: -40...85 °C, IP rating: IP67, Approval/Conformity: CE, UKCA, cULus, WEEE - BALLUFF USA
| Ambient temperature | -40...85 °C |
|---|---|
| Approval/Conformity | CE, UKCA, cULus, WEEE |
| Connection | Connector, M12x1, 5-pin |
| Connection 1 | M12x1, 5-pin |
| Connection 2 | M12x1 |
| Housing material | Aluminum, Anodized |
| Interface | CANopen DS301 |
| IP Rating | IP67 |
| Magnets, number max. | 4 |
| Measuring range | 1500 mm |
| Mounting part | Mounting clamps |
| Non-linearity max. | ±30 µm |
| Operating voltage Ub | 20...28 VDC |
| Repeat accuracy | ± 1 LSB |
| Resolution | ≤ 5 µm |
| Style | Profile series |
Frequently Asked Questions
How do I get pricing for BTL03EW?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the BTL03EW?
BTL03EW is a Balluff part. KKM Solutions sources Balluff components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of BTL03EW?
Key specifications include Ambient temperature: -40...85 °C; Approval/Conformity: CE, UKCA, cULus, WEEE; Connection: Connector, M12x1, 5-pin; Connection 1: M12x1, 5-pin. The full specification table on this page lists every published attribute for this part.
How quickly can BTL03EW ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products
Balluff Balluff BTL6-P111-M0650-A1-S115
Balluff Balluff BTL5-H112-M1200-P-S94
Balluff Balluff BTL6-P111-M1200-A1-S115
Balluff Balluff BTL5-H112-M0600-P-S94

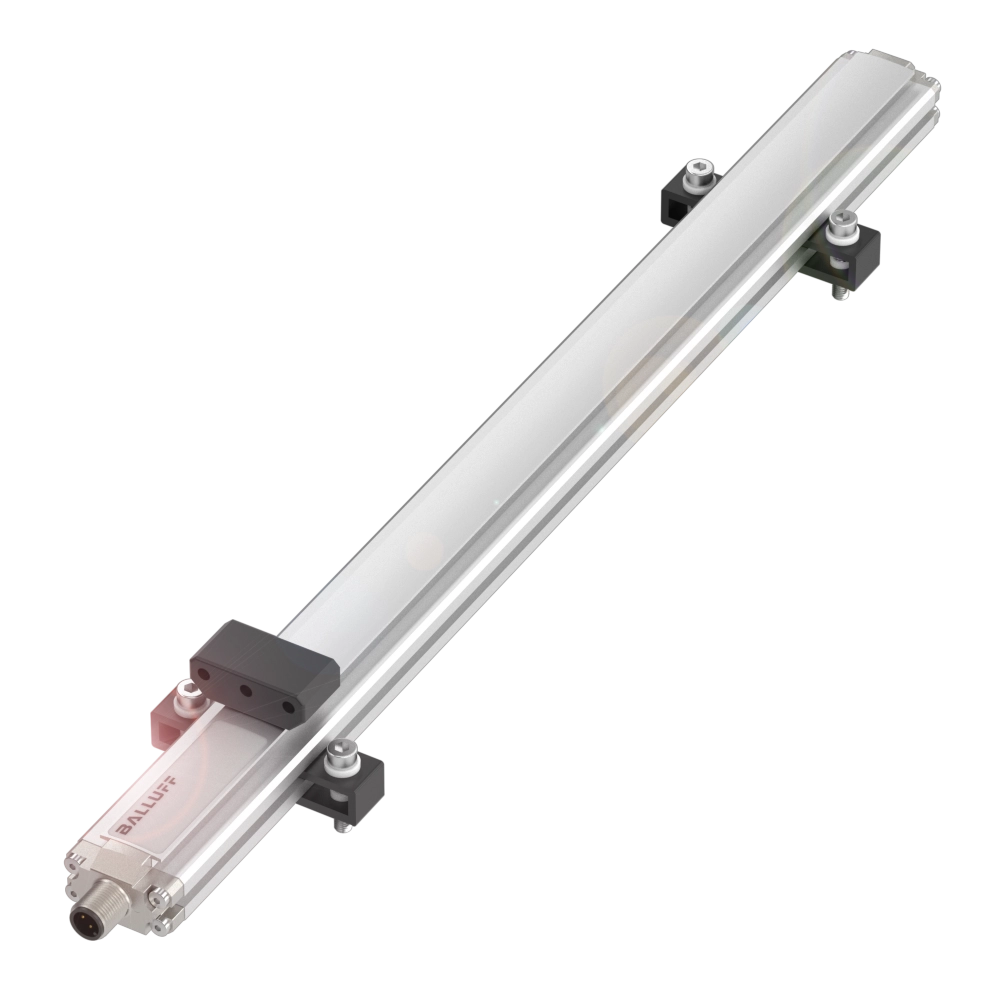

Balluff Balluff BTL6-E500-M1000-PF-S115
