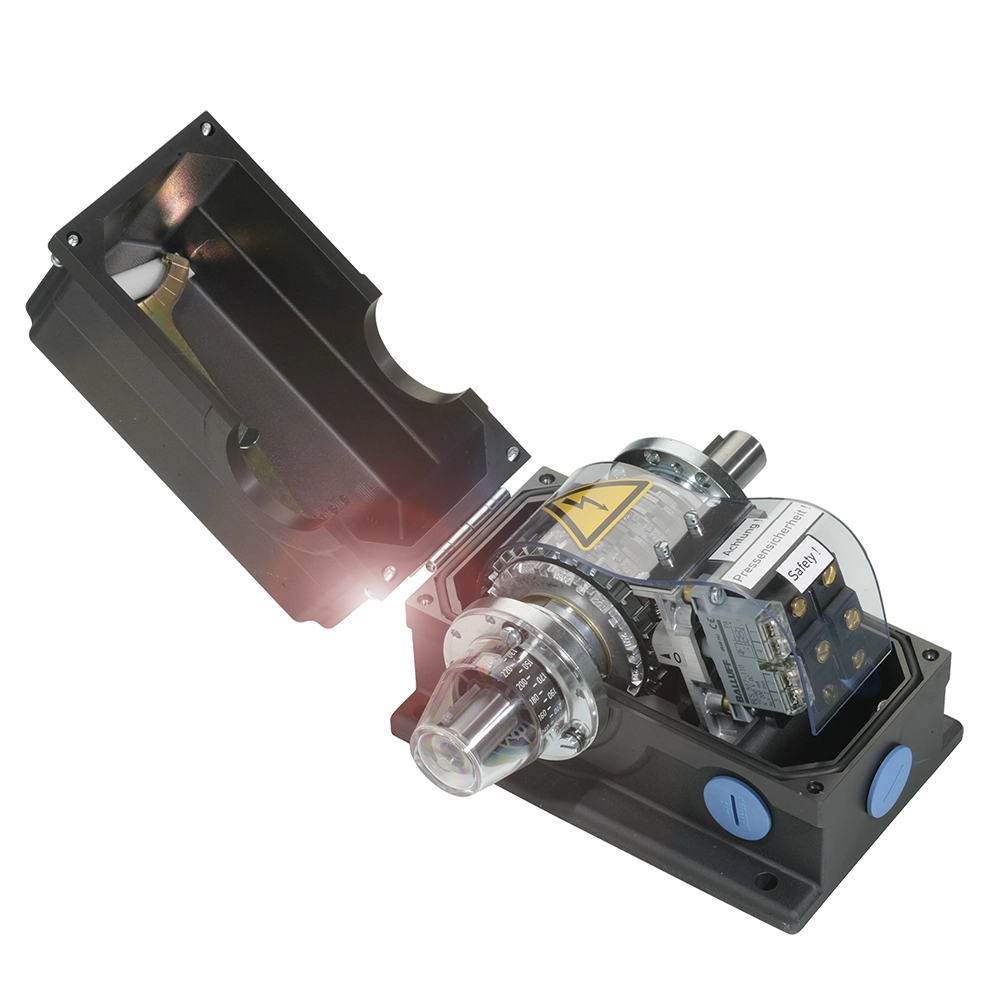

BSW009T — Balluff BSW 813-493-X64-WF-12L3-55-1173
KKM Solutions is an independent parts distributor, not an authorized Balluff dealer — how we source.
Overview
Part number BSW009T from Balluff, listed in Safety Interlock Switches. Specifications on file: Ambient temperature -5...80 °C; Approval/Conformity CE, BG, UKCA, CCC, WEEE; Cable entries, number 5 threaded exit M25; Component Mechanical rotary cam switch. KKM Solutions quotes this part with pricing and availability confirmed per order.
BSW009T (BSW 813-493-X64-WF-12L3-55-1173) - Rotary cam switches with safety switch positions - List price USA: 8,379.80 USD - Principle of operation: Rotary cam switch, Component: Mechanical rotary cam switch, Version: Safety EN 60204-1, Housing material: Aluminum, Anodized, Switching element: 1. Switch position: BES 517-110, 2-4. Switch position: BSE 44.0, 5-12. Switch position: BSE 61, Material contacts: 2-12. Switch position: Silver, Cable entries, number: 5 threaded exit M25, Cam rings: 1. Switch position: WF 30 teeth, 2-12. Switch position: 180°, Drive type: right, Speed max.: 200 1/min, Speed monitor: With loss of switch position, Rated operating voltage Ue: 1. Switch position: 24 VDC, 2-12. Switch position: 250 VAC, Continuous current: 1. Switch position: 0.2 A, 2-12. Switch position: 6 A, Ambient temperature: -5...80 °C, Approval/Conformity: CE, BG, UKCA, CCC, WEEE - BALLUFF USA
Specifications
| Ambient temperature | -5...80 °C |
|---|---|
| Approval/Conformity | CE, BG, UKCA, CCC, WEEE |
| Cable entries, number | 5 threaded exit M25 |
| Cam rings | 1. Switch position: WF 30 teeth, 2-12. Switch position: 180° |
| Component | Mechanical rotary cam switch |
| Continuous current | 1. Switch position: 0.2 A, 2-12. Switch position: 6 A |
| Drive Type | right |
| Housing material | Aluminum, Anodized |
| Material contacts | 2-12. Switch position: Silver |
| Principle of operation | Rotary cam switch |
| Rated operating voltage Ue | 1. Switch position: 24 VDC, 2-12. Switch position: 250 VAC |
| Speed [Max] | 200 1/min |
| Speed monitor | With loss of switch position |
| Switching element | 1. Switch position: BES 517-110, 2-4. Switch position: BSE 44.0, 5-12. Switch position: BSE 61 |
| Version | Safety EN 60204-1 |
Product details
| Manufacturer | Balluff |
|---|---|
| Manufacturer part number | BSW009T |
| Product category | Safety Interlock Switches |
| Published specifications | 15 attributes listed |
| Related part numbers | 15 other part numbers in this family |
Request a quote for this part
Email orderdesk@kkmsolutions.com or call (825) 454-5367 for pricing and availability.
Frequently Asked Questions
How do I get pricing for BSW009T?
This part is quoted on request, so no price is listed for it here. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the BSW009T?
BSW009T is made by Balluff and is listed in our Safety Interlock Switches category. KKM Solutions is an independent distributor, not an authorized Balluff dealer: we source the exact Balluff part number BSW009T, and the quote confirms condition and lead time before you order.
Is the BSW009T new and genuine?
Parts we supply are new and genuine unless the quote expressly states otherwise. Where a part is new-old-stock, from excess inventory, refurbished or open-box, the quote says so before you approve it.
What warranty comes with the BSW009T, and can I return it?
Parts we supply are warranted against manufacturing defects for 1 year from the date of delivery; where the manufacturer's own warranty is longer, the manufacturer's warranty applies. The warranty covers repair, replacement, or credit of the defective part and does not cover normal wear items, misapplication, improper installation, or consequential damages. Contact us within 30 days of delivery before returning anything — all returns need a return authorization from the order desk.
What is the lifecycle status of BSW009T?
No published lifecycle status is on file for BSW009T. Balluff lists whether a catalog number is current, superseded or end-of-life on its own product page, and our order desk confirms the status with the manufacturer at quote time, before you commit. Send the part number through the quote form on this page.
What are the key specifications of BSW009T?
Key specifications include Ambient temperature: -5...80 °C; Approval/Conformity: CE, BG, UKCA, CCC, WEEE; Cable entries, number: 5 threaded exit M25; Cam rings: 1. Switch position: WF 30 teeth, 2-12. Switch position: 180°. The full specification table on this page lists every published attribute for this part.
What voltage does BSW009T use?
Per the published specification for BSW009T: Rated operating voltage Ue: 1. Switch position: 24 VDC, 2-12. Switch position: 250 VAC. Confirm against the full specification table on this page, or ask our order desk to verify it with the manufacturer at quote time.
What material is BSW009T made of?
Per the published specification for BSW009T: Housing material: Aluminum, Anodized. Confirm against the full specification table on this page, or ask our order desk to verify it with the manufacturer at quote time.
How quickly can BSW009T ship?
Lead time for BSW009T is quoted per order and confirmed on your quote, which our order desk sends within 1 business day. For a line-down emergency, call the 24/7 order desk at (825) 454-5367.
Variants & Related Part Numbers
Other Balluff part numbers in this family:
Frequently Searched Balluff Part Numbers
Related Products

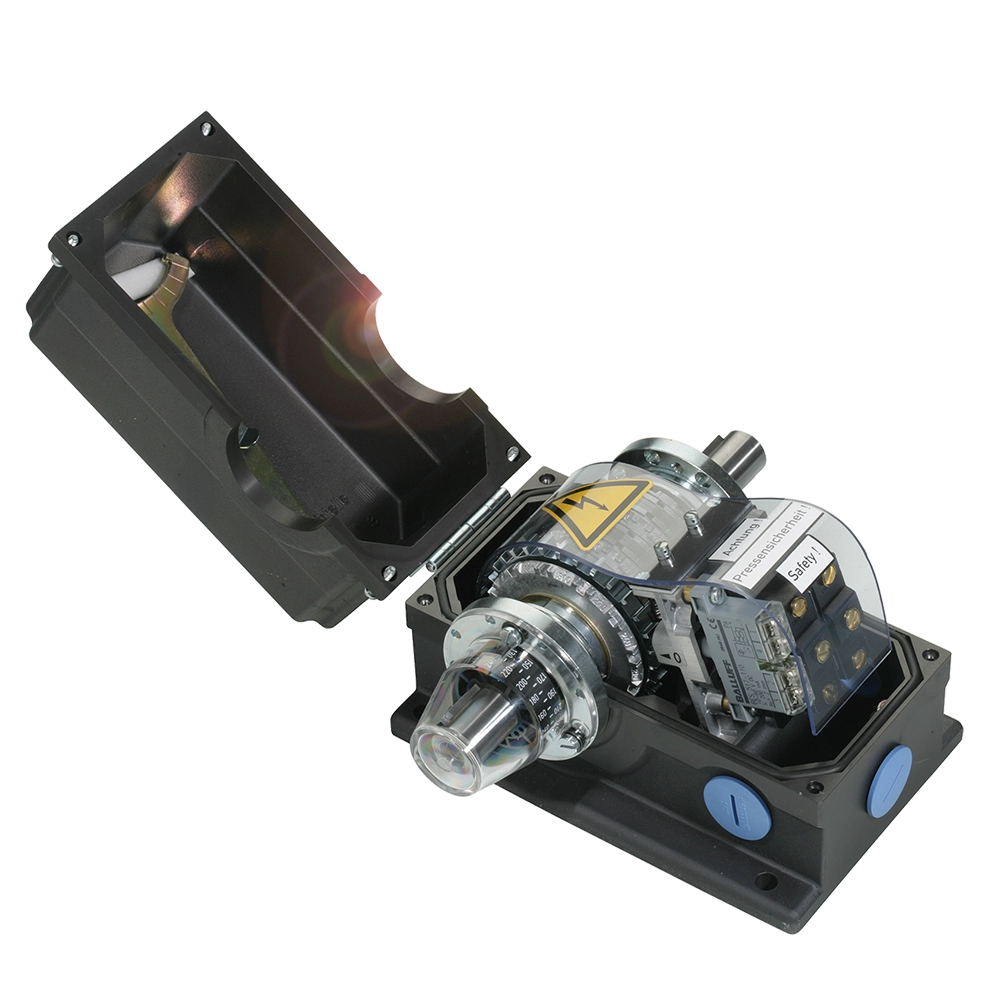

Balluff Balluff BSW 813-495-X64-09L2
