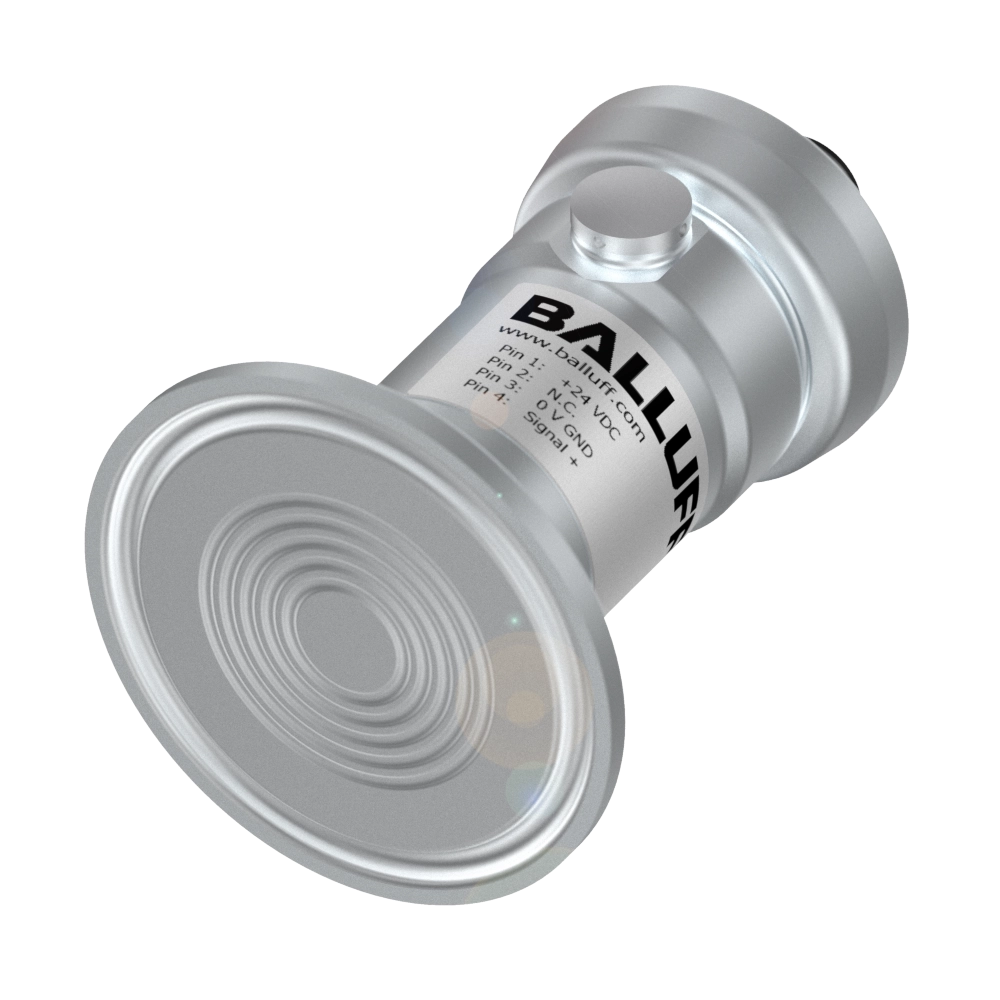

BSP00W4 — Balluff BSP M100-ZT004-A06A1A-S4-006
KKM Solutions is an independent parts distributor, not an authorized Balluff dealer — how we source.
Overview
Part number BSP00W4 from Balluff, listed in Pressure Sensors & Transmitters. Specifications on file: Accuracy ±0.18 % FSO BFSL; Ambient temperature -25...85 °C; Analog output Analog, current 4…20 mA; Burst Pressure 1.5 bar. KKM Solutions quotes this part with pricing and availability confirmed per order.
BSP00W4 (BSP M100-ZT004-A06A1A-S4-006) - Pressure transmitter - Measuring range: 0 bar...100 mbar, Accuracy: ±0.18 % FSO BFSL, Overload pressure: 0.5 bar, Burst pressure: 1.5 bar, Operating voltage Ub: 8...32 VDC, Analog output: Analog, current 4…20 mA, Connection: Connector, M12x1-Male, 4-pin, Process connection: 1 1/2" Tri clamp, Process connection material: 1.4404 stainless steel, Gasket, material: without, welded, Housing material: 1.4404 stainless steel, Media temperature: -10...125 °C, Ambient temperature: -25...85 °C, IP rating: IP69K, Approval/Conformity: CE, UKCA, WEEE - BALLUFF USA
Specifications
| Accuracy | ±0.18 % FSO BFSL |
|---|---|
| Ambient temperature | -25...85 °C |
| Analog output | Analog, current 4…20 mA |
| Burst Pressure | 1.5 bar |
| Connection | Connector, M12x1-Male, 4-pin |
| Gasket Material | without, welded |
| Housing material | 1.4404 stainless steel |
| Interface | - |
| IP Rating | IP69K |
| Measuring range | 0 bar...100 mbar |
| Media temperature | -10...125 °C |
| Operating voltage Ub | 8...32 VDC |
| Overload pressure | 0.5 bar |
| Process Connection | 1 1/2" Tri clamp |
| Process connection material | 1.4404 stainless steel |
| Switching output | - |
Product details
| Manufacturer | Balluff |
|---|---|
| Manufacturer part number | BSP00W4 |
| Product category | Pressure Sensors & Transmitters |
| Published specifications | 16 attributes listed |
| Related part numbers | 18 other part numbers in this family |
Request a quote for this part
Email orderdesk@kkmsolutions.com or call (825) 454-5367 for pricing and availability.
Frequently Asked Questions
How do I get pricing for BSP00W4?
This part is quoted on request, so no price is listed for it here. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the BSP00W4?
BSP00W4 is made by Balluff and is listed in our Pressure Sensors & Transmitters category. KKM Solutions is an independent distributor, not an authorized Balluff dealer: we source the exact Balluff part number BSP00W4, and the quote confirms condition and lead time before you order.
Is the BSP00W4 new and genuine?
Parts we supply are new and genuine unless the quote expressly states otherwise. Where a part is new-old-stock, from excess inventory, refurbished or open-box, the quote says so before you approve it.
What warranty comes with the BSP00W4, and can I return it?
Parts we supply are warranted against manufacturing defects for 1 year from the date of delivery; where the manufacturer's own warranty is longer, the manufacturer's warranty applies. The warranty covers repair, replacement, or credit of the defective part and does not cover normal wear items, misapplication, improper installation, or consequential damages. Contact us within 30 days of delivery before returning anything — all returns need a return authorization from the order desk.
What is the lifecycle status of BSP00W4?
No published lifecycle status is on file for BSP00W4. Balluff lists whether a catalog number is current, superseded or end-of-life on its own product page, and our order desk confirms the status with the manufacturer at quote time, before you commit. Send the part number through the quote form on this page.
What are the key specifications of BSP00W4?
Key specifications include Accuracy: ±0.18 % FSO BFSL; Ambient temperature: -25...85 °C; Analog output: Analog, current 4…20 mA; Burst Pressure: 1.5 bar. The full specification table on this page lists every published attribute for this part.
What voltage does BSP00W4 use?
Per the published specification for BSP00W4: Operating voltage Ub: 8...32 VDC. Confirm against the full specification table on this page, or ask our order desk to verify it with the manufacturer at quote time.
What is the IP rating of BSP00W4?
Per the published specification for BSP00W4: IP Rating: IP69K. Confirm against the full specification table on this page, or ask our order desk to verify it with the manufacturer at quote time.
What material is BSP00W4 made of?
Per the published specification for BSP00W4: Housing material: 1.4404 stainless steel. Confirm against the full specification table on this page, or ask our order desk to verify it with the manufacturer at quote time.
How quickly can BSP00W4 ship?
Lead time for BSP00W4 is quoted per order and confirmed on your quote, which our order desk sends within 1 business day. For a line-down emergency, call the 24/7 order desk at (825) 454-5367.
