BOS01Y9 (BOS Q08M-PO-KE21-00,2-S49) - Through-beam sensors - List price USA: 165.18 USD - Series: Q08M, Dimension: 8 x 44 x 8 mm, Interface: PNP Normally closed (NC), Principle of operation: Photoelectric sensor, Principle of optical operation: Through-beam sensor (receiver), Range: 0...2.2 m, Connection: Cable with connector, M8x1-Male, 3-pin, 0.20 m, PUR, Housing material: Zinc, Die casting, nickel-plated, Material sensing surface: PMMA, Operating voltage Ub: 10...30 VDC, Approval/Conformity: CE, UKCA, cULus, WEEE - BALLUFF USA
| Approval/Conformity | CE, UKCA, cULus, WEEE |
|---|---|
| Connection | Cable with connector, M8x1-Male, 3-pin, 0.20 m, PUR |
| Dimension | 8 x 44 x 8 mm |
| Housing material | Zinc, Die casting, nickel-plated |
| Interface | PNP Normally closed (NC) |
| Material sensing surface | PMMA |
| Operating voltage Ub | 10...30 VDC |
| Principle of operation | Photoelectric sensor |
| Principle of optical operation | Through-beam sensor (receiver) |
| Range | 0...2.2 m |
| Series | Q08M |
Request a quote for this part
Email [email protected] or call (825) 454-5367 for pricing and availability.
Frequently Asked Questions
How do I get pricing for BOS01Y9?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email [email protected], and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the BOS01Y9?
BOS01Y9 is a Balluff part. KKM Solutions sources Balluff components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
Is BOS01Y9 discontinued, and can I still get one?
KKM Solutions does not publish a manufacturer lifecycle status for BOS01Y9 — check Balluff's own product page for whether it is current, superseded, or end-of-life. It does not change what we can do: we source current-production, superseded and long-obsolete parts the same way, and where a part is genuinely unavailable we identify a form-fit-function equivalent. Send the part number through the quote form on this page, or use our obsolete part lookup at https://kkmsolutions.com/tools/obsolete-part-lookup/.
What are the key specifications of BOS01Y9?
Key specifications include Approval/Conformity: CE, UKCA, cULus, WEEE; Connection: Cable with connector, M8x1-Male, 3-pin, 0.20 m, PUR; Dimension: 8 x 44 x 8 mm; Housing material: Zinc, Die casting, nickel-plated. The full specification table on this page lists every published attribute for this part.
How quickly can BOS01Y9 ship?
In-stock items are dispatched the same business day for orders placed by 11 AM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products

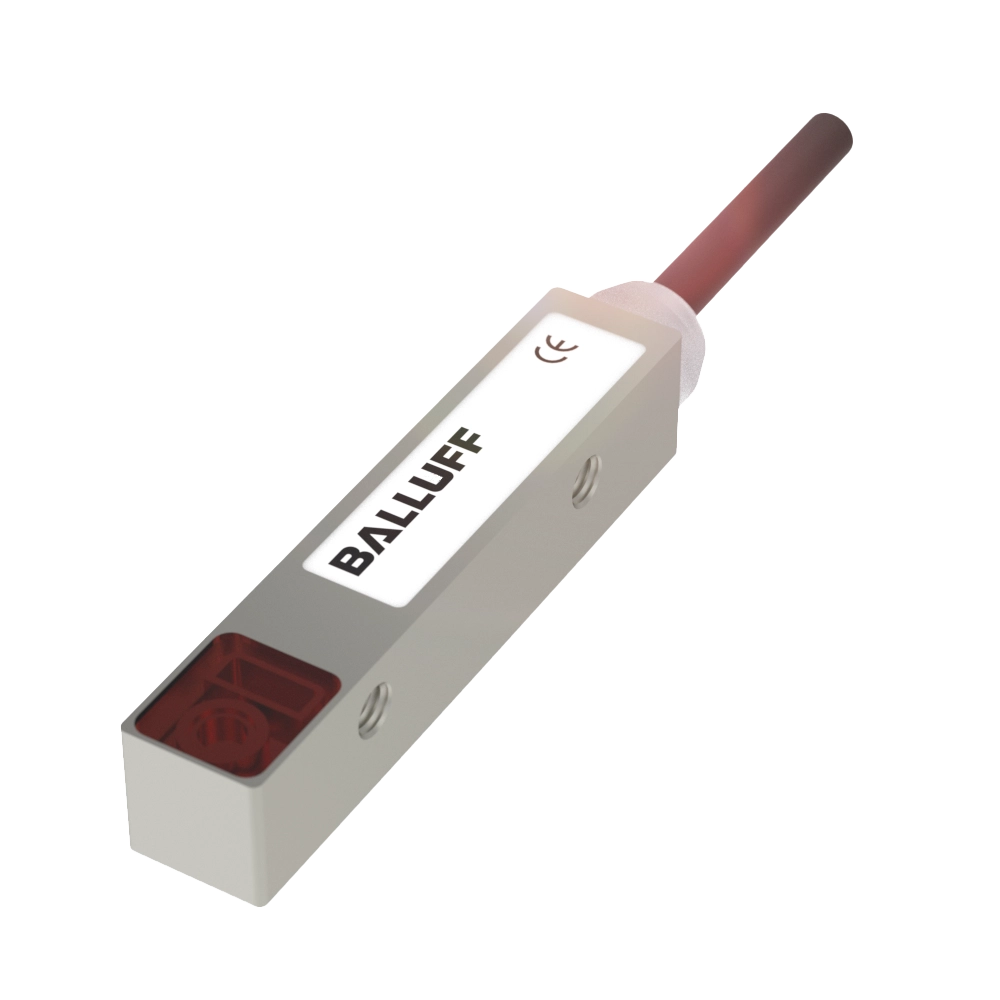

Balluff Balluff BOS Q08M-PO-KE21-02

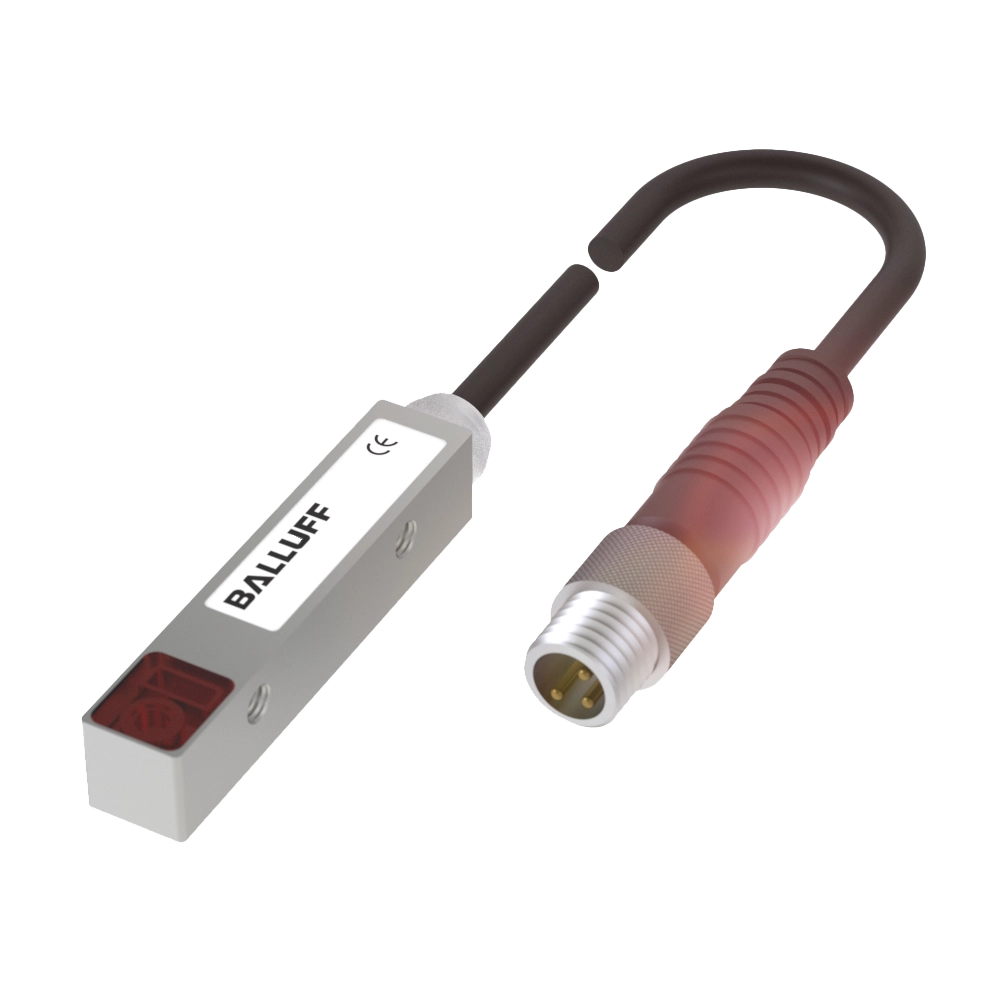

Balluff Balluff BOS Q08M-NS-KE21-00,2-S49

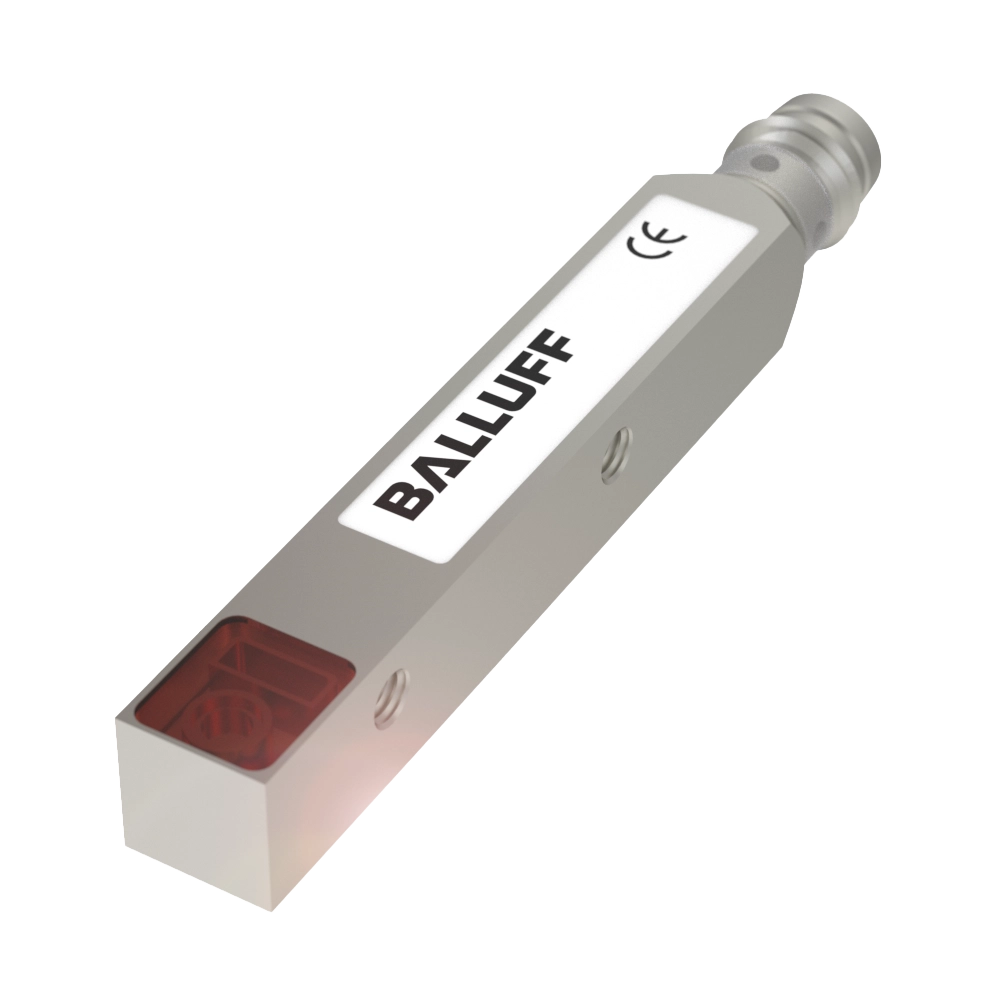

Balluff Balluff BOS Q08M-PO-KE21-S49
