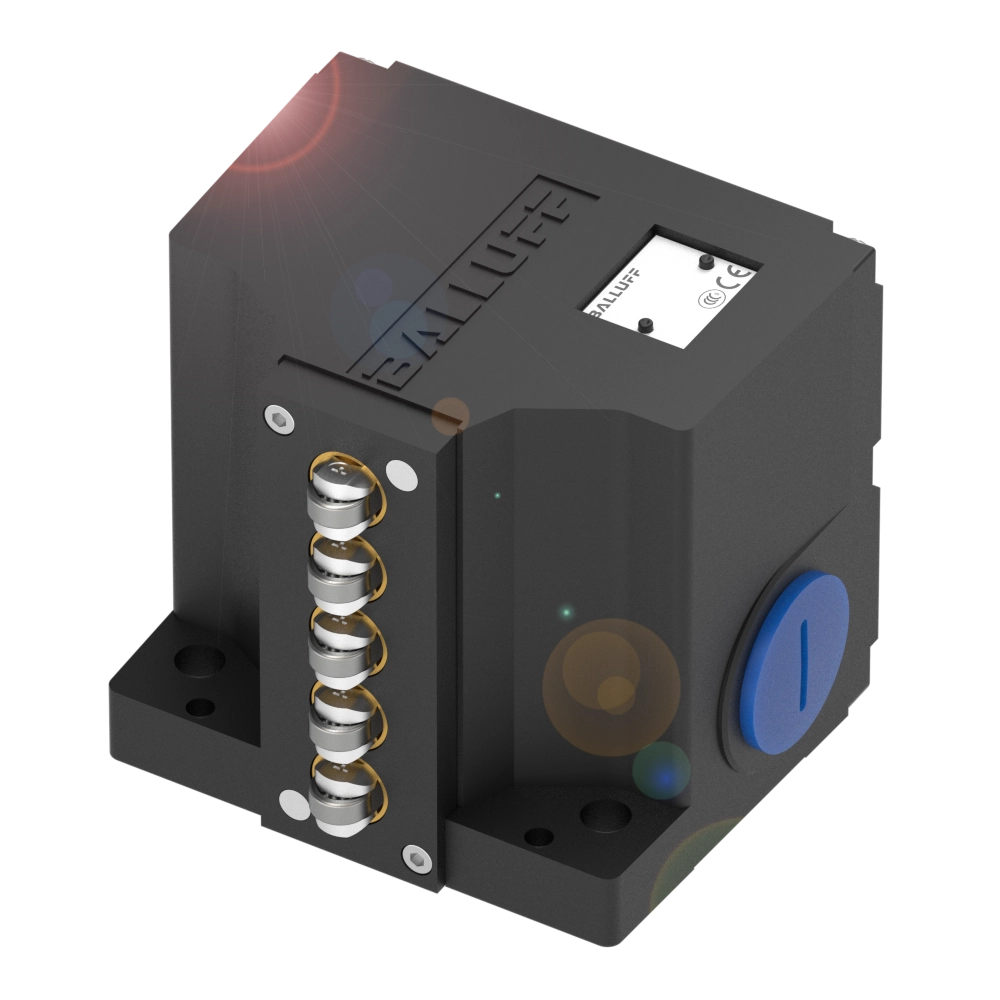

BNS03T8 (BNS 819-B03-E12-61-12-10-FD) - Mechanical multiple position limit switches - Housing material: Aluminum, Anodized, Number of switching positions: 3x E-chisel, Version: Snap contact, Operating principle: 1-3. Switch position: Mechanical, Continuous current: 1-3. Switch position: 6 A, Rated operating voltage Ue: 1-3. Switch position: 250 VAC, Installation: Vertical, Approach direction: longitudinal, parallel to attachment surface, Approach speed: 1-3. Switch position: 30 m/min, Connection type: 1-3. Switch position: Screw terminal, Ambient temperature: -5...85 °C, IP rating: IP67, Approval/Conformity: CE, UKCA, CCC, WEEE - BALLUFF USA
| Ambient temperature | -5...85 °C |
|---|---|
| Approach direction | longitudinal, parallel to attachment surface |
| Approach speed | 1-3. Switch position: 30 m/min |
| Approval/Conformity | CE, UKCA, CCC, WEEE |
| Connection type | 1-3. Switch position: Screw terminal |
| Continuous current | 1-3. Switch position: 6 A |
| Housing material | Aluminum, Anodized |
| Installation | Vertical |
| IP Rating | IP67 |
| Number of switching positions | 3x E-chisel |
| Operating principle | 1-3. Switch position: Mechanical |
| Rated operating voltage Ue | 1-3. Switch position: 250 VAC |
| Version | Snap contact |
Request a quote for this part
Email [email protected] or call (825) 454-5367 for pricing and availability.
Frequently Asked Questions
How do I get pricing for BNS03T8?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email [email protected], and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the BNS03T8?
BNS03T8 is a Balluff part. KKM Solutions sources Balluff components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
Is BNS03T8 discontinued, and can I still get one?
KKM Solutions does not publish a manufacturer lifecycle status for BNS03T8 — check Balluff's own product page for whether it is current, superseded, or end-of-life. It does not change what we can do: we source current-production, superseded and long-obsolete parts the same way, and where a part is genuinely unavailable we identify a form-fit-function equivalent. Send the part number through the quote form on this page, or use our obsolete part lookup at https://kkmsolutions.com/tools/obsolete-part-lookup/.
What are the key specifications of BNS03T8?
Key specifications include Ambient temperature: -5...85 °C; Approach direction: longitudinal, parallel to attachment surface; Approach speed: 1-3. Switch position: 30 m/min; Approval/Conformity: CE, UKCA, CCC, WEEE. The full specification table on this page lists every published attribute for this part.
How quickly can BNS03T8 ship?
In-stock items are dispatched the same business day for orders placed by 11 AM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
