Balluff BNS 813-D06-L12-100-20-02
BNS0144 (BNS 813-D06-L12-100-20-02) - Mechanical multiple position limit switches with safety switch positions - Dimension: 120 x 120 x 83 mm, Housing material: Aluminum, Anodized, Number of switching positions: 6x Roller bearing, Version: Safety EN 60204-1, Operating principle: 1-6. Switch position: Mechanical, Continuous current: 1-6. Switch position: 6 A, Rated operating voltage Ue: 1-6. Switch position: 250 VAC, Installation: Vertical, Approach direction: longitudinal, parallel to attachment surface, Approach speed: 1-2. Switch position: 80 m/min, 3-6. Switch position: 120 m/min, Switch position spacing: 12 mm, Connection type: 1-6. Switch position: Screw terminal, Ambient temperature: -5...85 °C, IP rating: IP67, Approval/Conformity: CE, UKCA, CCC, WEEE - BALLUFF USA
| Ambient temperature | -5...85 °C |
|---|---|
| Approach direction | longitudinal, parallel to attachment surface |
| Approach speed | 1-2. Switch position: 80 m/min, 3-6. Switch position: 120 m/min |
| Approval/Conformity | CE, UKCA, CCC, WEEE |
| Connection type | 1-6. Switch position: Screw terminal |
| Continuous current | 1-6. Switch position: 6 A |
| Dimension | 120 x 120 x 83 mm |
| Housing material | Aluminum, Anodized |
| Installation | Vertical |
| IP Rating | IP67 |
| Number of switching positions | 6x Roller bearing |
| Operating principle | 1-6. Switch position: Mechanical |
| Rated operating voltage Ue | 1-6. Switch position: 250 VAC |
| Switch position spacing | 12 mm |
| Version | Safety EN 60204-1 |
Frequently Asked Questions
How do I get pricing for BNS0144?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the BNS0144?
BNS0144 is a Balluff part. KKM Solutions sources Balluff components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of BNS0144?
Key specifications include Ambient temperature: -5...85 °C; Approach direction: longitudinal, parallel to attachment surface; Approach speed: 1-2. Switch position: 80 m/min, 3-6. Switch position: 120 m/min; Approval/Conformity: CE, UKCA, CCC, WEEE. The full specification table on this page lists every published attribute for this part.
How quickly can BNS0144 ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products
Balluff Balluff BNS 813-D05-L16-100-12-05

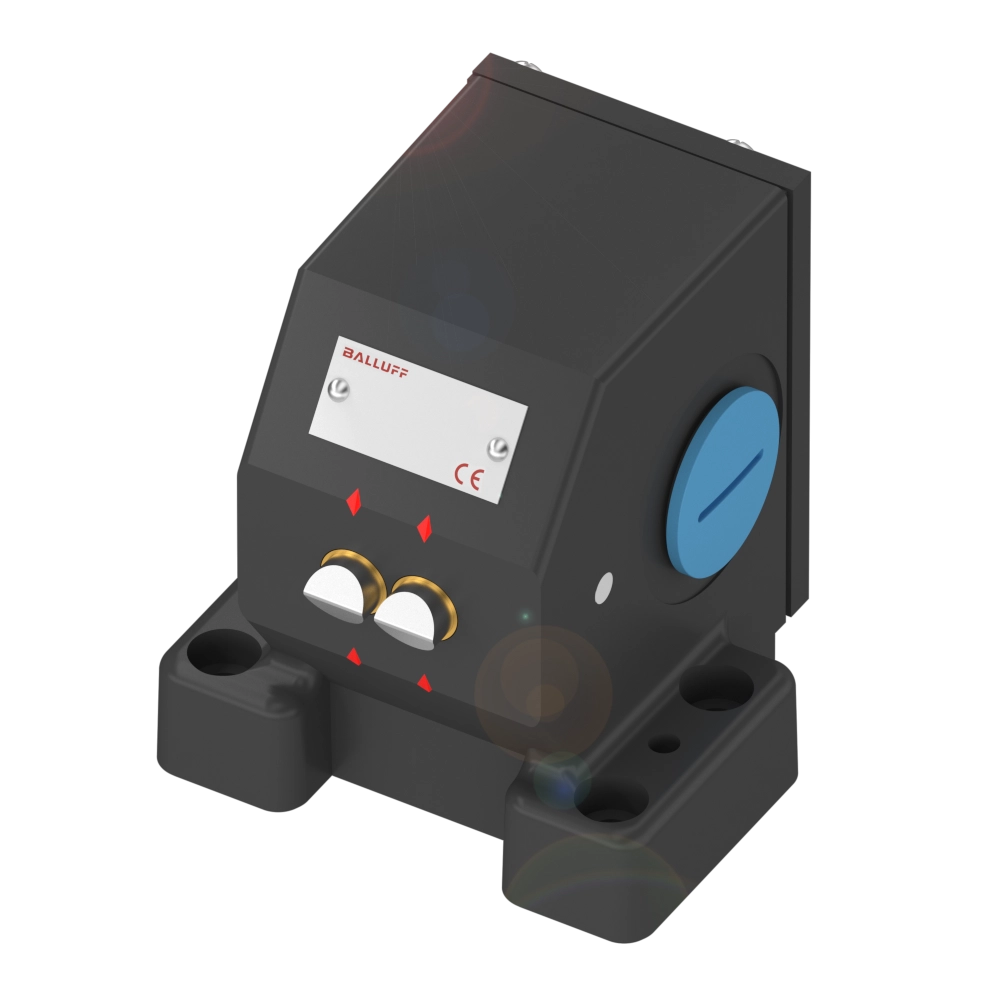

Balluff Balluff BNS 813-B06-L12-72-12-06

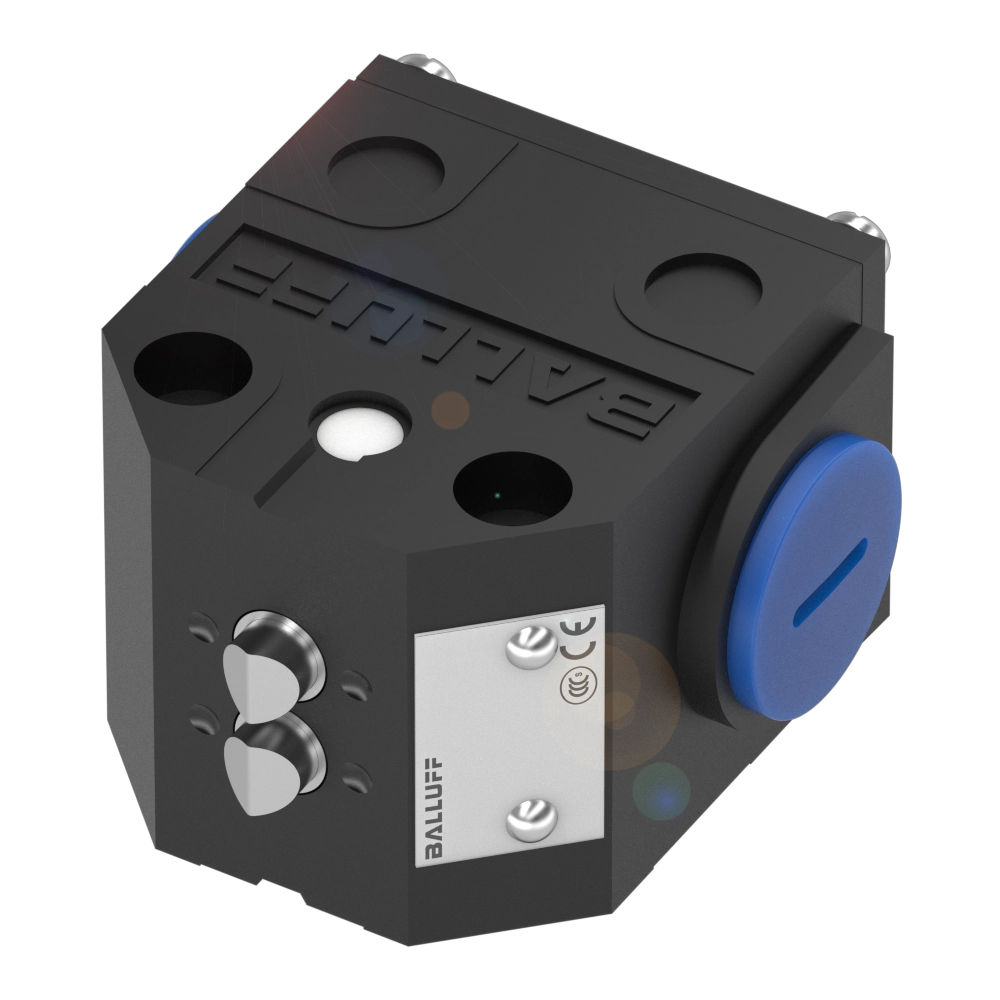

Balluff Balluff BNS 813-B02-D08-40-69-02
