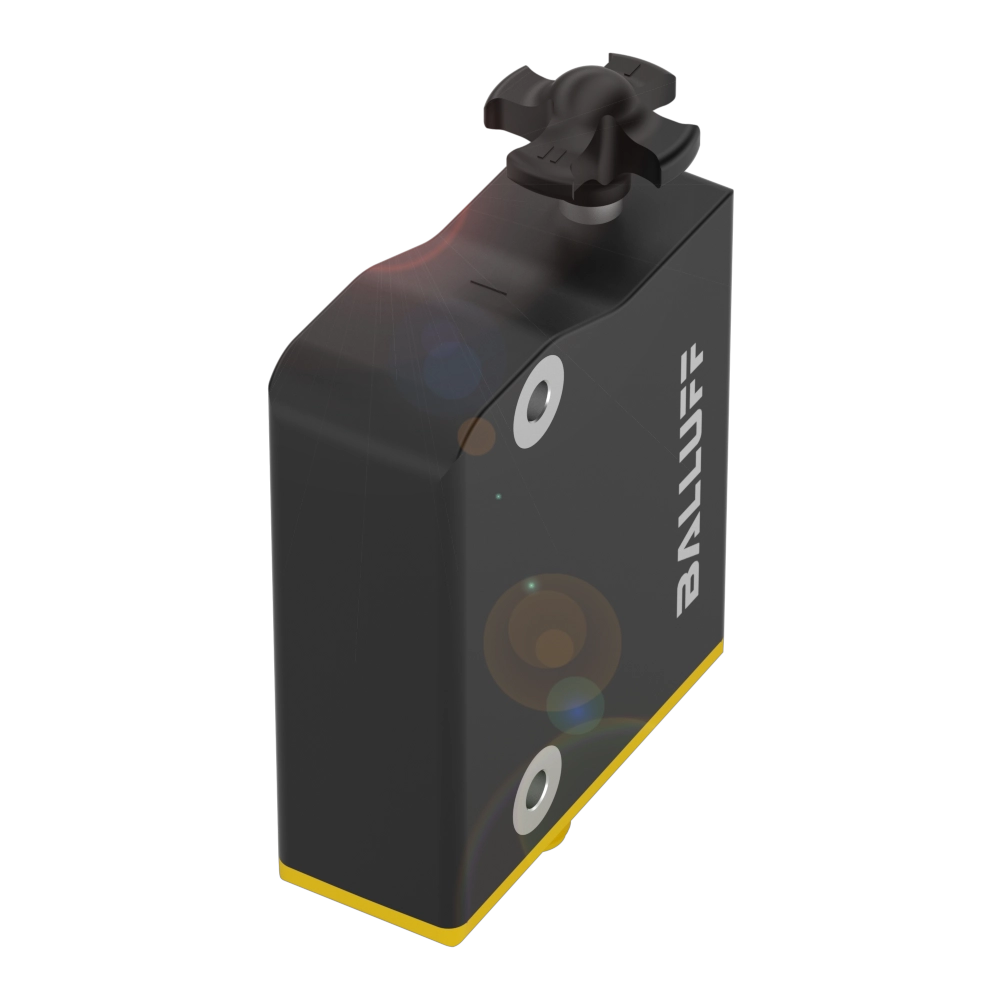

BID0012 — Balluff BID Z01K-4R3E3-O02KZ0-S115
KKM Solutions is an independent parts distributor, not an authorized Balluff dealer — how we source.
Overview
Part number BID0012 from Balluff, listed in Adapters & Accessories. Specifications on file: Ambient temperature 0...60 °C; Approach direction lateral; Approval/Conformity CE, cULus, TÜV, Ecolab, WEEE; Axillary release Screwdriver. KKM Solutions quotes this part with pricing and availability confirmed per order.
BID0012 (BID Z01K-4R3E3-O02KZ0-S115) - Transponder-coded guard locking devices - Special characteristics: Washdown, Performance Level: d (for retention function), e (for locking function), Safety category (EN ISO 13849-1): 4 (for locking function), 2 (for retention function), SIL (IEC 61508): 3 (for locking function), 2 (for retention function), SIL CL (EN 62061): 3 (for locking function), 2 (for retention function), Coding level (EN ISO 14119): high, Response time max.: 100 ms, Approval/Conformity: CE, cULus, TÜV, Ecolab, WEEE, Operating principle: non-contact (RFID), Utilization category: DC-12: 24 V/0.25 A, DC-13: 24 V/0.25 A, Approach direction: lateral, Guard locking, principle: Operating current, Holding force FZH: 1000 N, Axillary release: Screwdriver, Escape release: no, Connection: Connector, M12x1, 8-pin, Switching output: PNP Normally closed (NC);2x PNP OSSD, Dimension: 87.5 x 120 x 35 mm, Ambient temperature: 0...60 °C, IP rating: IP69, IP67, IP66, Housing material: Thermoplastic, glass-fiber reinforced - BALLUFF USA
Specifications
| Ambient temperature | 0...60 °C |
|---|---|
| Approach direction | lateral |
| Approval/Conformity | CE, cULus, TÜV, Ecolab, WEEE |
| Axillary release | Screwdriver |
| Coding level (EN ISO 14119) | high |
| Connection | Connector, M12x1, 8-pin |
| Dimension | 87.5 x 120 x 35 mm |
| Escape release | no |
| Guard locking, principle | Operating current |
| Holding force FZH | 1000 N |
| Housing material | Thermoplastic, glass-fiber reinforced |
| IP Rating | IP69, IP67, IP66 |
| Operating principle | non-contact (RFID) |
| Performance level | d (for retention function), e (for locking function) |
| Response time max. | 100 ms |
| Safety category (EN ISO 13849-1) | 4 (for locking function), 2 (for retention function) |
| SIL (IEC 61508) | 3 (for locking function), 2 (for retention function) |
| SIL CL (EN 62061) | 3 (for locking function), 2 (for retention function) |
| Special characteristics | Washdown |
| Switching output | PNP Normally closed (NC);2x PNP OSSD |
| Utilization category | DC-12: 24 V/0.25 A, DC-13: 24 V/0.25 A |
Product details
| Manufacturer | Balluff |
|---|---|
| Manufacturer part number | BID0012 |
| Product category | Adapters & Accessories |
| Published specifications | 21 attributes listed |
| Related part numbers | 14 other part numbers in this family |
Request a quote for this part
Email orderdesk@kkmsolutions.com or call (825) 454-5367 for pricing and availability.
Frequently Asked Questions
How do I get pricing for BID0012?
This part is quoted on request, so no price is listed for it here. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the BID0012?
BID0012 is made by Balluff and is listed in our Adapters & Accessories category. KKM Solutions is an independent distributor, not an authorized Balluff dealer: we source the exact Balluff part number BID0012, and the quote confirms condition and lead time before you order.
Is the BID0012 new and genuine?
Parts we supply are new and genuine unless the quote expressly states otherwise. Where a part is new-old-stock, from excess inventory, refurbished or open-box, the quote says so before you approve it.
What warranty comes with the BID0012, and can I return it?
Parts we supply are warranted against manufacturing defects for 1 year from the date of delivery; where the manufacturer's own warranty is longer, the manufacturer's warranty applies. The warranty covers repair, replacement, or credit of the defective part and does not cover normal wear items, misapplication, improper installation, or consequential damages. Contact us within 30 days of delivery before returning anything — all returns need a return authorization from the order desk.
What is the lifecycle status of BID0012?
No published lifecycle status is on file for BID0012. Balluff lists whether a catalog number is current, superseded or end-of-life on its own product page, and our order desk confirms the status with the manufacturer at quote time, before you commit. Send the part number through the quote form on this page.
What are the key specifications of BID0012?
Key specifications include Ambient temperature: 0...60 °C; Approach direction: lateral; Approval/Conformity: CE, cULus, TÜV, Ecolab, WEEE; Axillary release: Screwdriver. The full specification table on this page lists every published attribute for this part.
What is the IP rating of BID0012?
Per the published specification for BID0012: IP Rating: IP69, IP67, IP66. Confirm against the full specification table on this page, or ask our order desk to verify it with the manufacturer at quote time.
What material is BID0012 made of?
Per the published specification for BID0012: Housing material: Thermoplastic, glass-fiber reinforced. Confirm against the full specification table on this page, or ask our order desk to verify it with the manufacturer at quote time.
How quickly can BID0012 ship?
Lead time for BID0012 is quoted per order and confirmed on your quote, which our order desk sends within 1 business day. For a line-down emergency, call the 24/7 order desk at (825) 454-5367.
