BES054R (BES M08MI-NSC30B-S49G) - Inductive proximity switches and proximity sensors - List price USA: 113.68 USD - Dimension: Ø 8 x 60 mm, Style Housing: M8x1, Installation: for flush mounting, Range: 3 mm, Switching output: NPN Normally open (NO), Switching frequency: 1200 Hz, Housing material: Brass, Nickel-free coated, Material sensing surface: PBT, Connection: Connector, M8x1-Male, 3-pin, Operating voltage Ub: 10...30 VDC, Ambient temperature: -25...70 °C, IP rating: IP68, Approval/Conformity: cULus, CE, UKCA, WEEE - BALLUFF USA
| Ambient temperature | -25...70 °C |
|---|---|
| Connection | Connector, M8x1-Male, 3-pin |
| Dimension | Ø 8 x 60 mm |
| Housing material | Brass, Nickel-free coated |
| Installation | for flush mounting |
| IP Rating | IP68 |
| Material sensing surface | PBT |
| Operating voltage Ub | 10...30 VDC |
| Range | 3 mm |
| Style Housing | M8x1 |
| Switching frequency | 1200 Hz |
| Switching output | NPN Normally open (NO) |
Request a quote for this part
Email [email protected] or call (825) 454-5367 for pricing and availability.
Frequently Asked Questions
How do I get pricing for BES054R?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email [email protected], and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the BES054R?
BES054R is a Balluff part. KKM Solutions sources Balluff components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
Is BES054R discontinued, and can I still get one?
KKM Solutions does not publish a manufacturer lifecycle status for BES054R — check Balluff's own product page for whether it is current, superseded, or end-of-life. It does not change what we can do: we source current-production, superseded and long-obsolete parts the same way, and where a part is genuinely unavailable we identify a form-fit-function equivalent. Send the part number through the quote form on this page, or use our obsolete part lookup at https://kkmsolutions.com/tools/obsolete-part-lookup/.
What are the key specifications of BES054R?
Key specifications include Ambient temperature: -25...70 °C; Connection: Connector, M8x1-Male, 3-pin; Dimension: Ø 8 x 60 mm; Housing material: Brass, Nickel-free coated. The full specification table on this page lists every published attribute for this part.
How quickly can BES054R ship?
In-stock items are dispatched the same business day for orders placed by 11 AM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products
Balluff Balluff BES M08MI-NOC30B-S49G
Balluff Balluff BES M08MI-POC30B-S49G

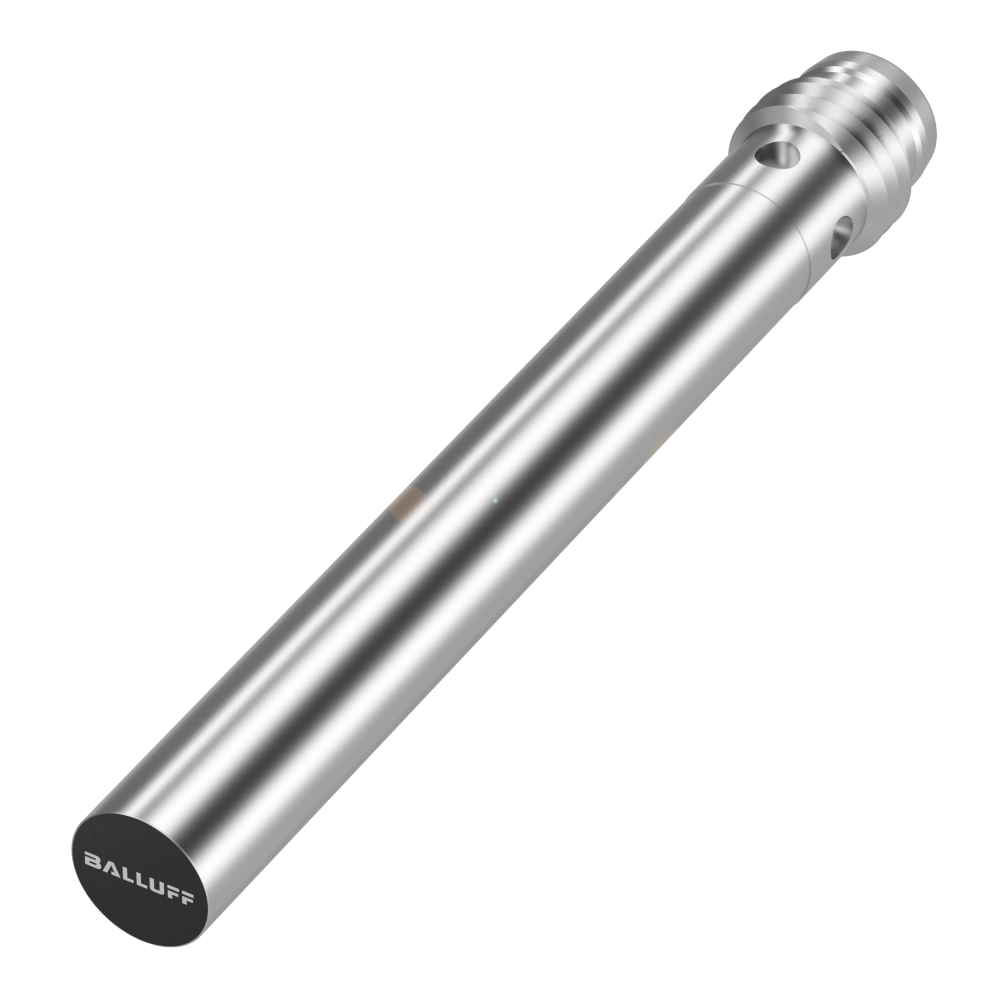

Balluff Balluff BES G06EI-POC30B-S49G

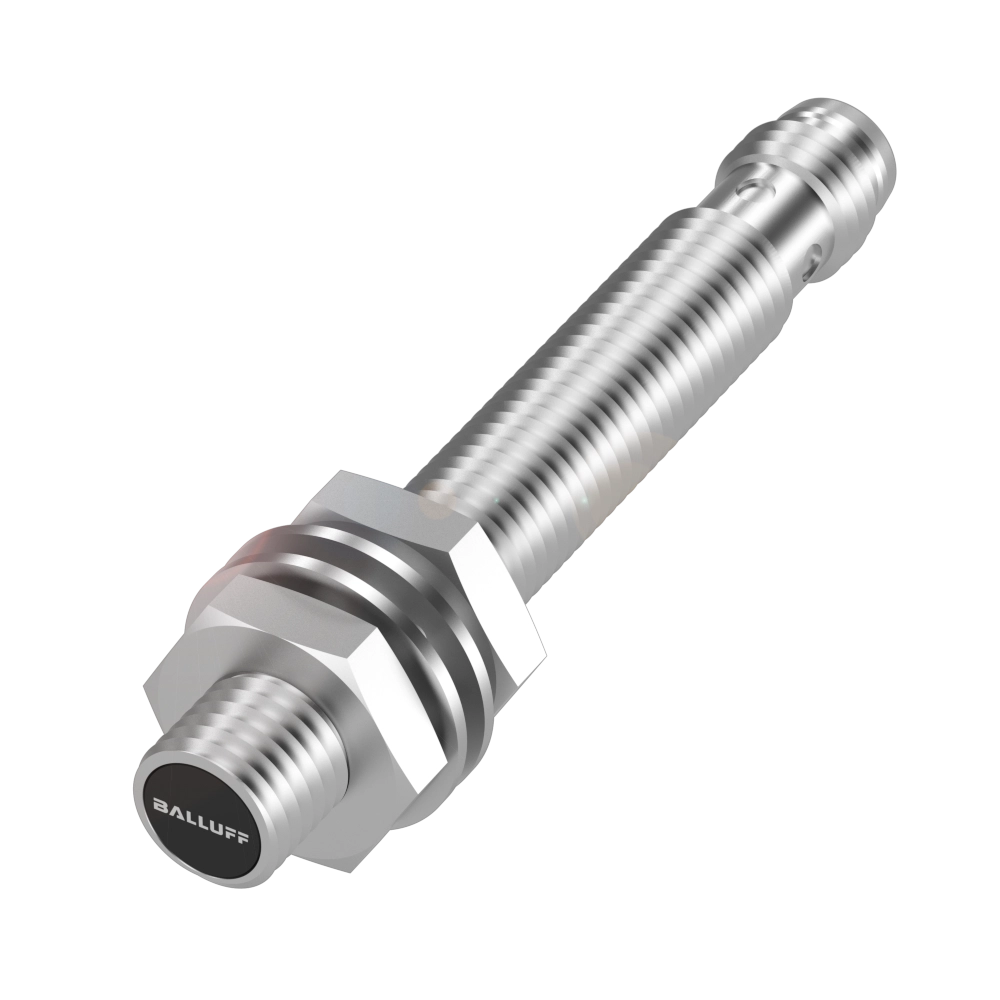

Balluff Balluff BES M08MI-PSC30B-S49G
