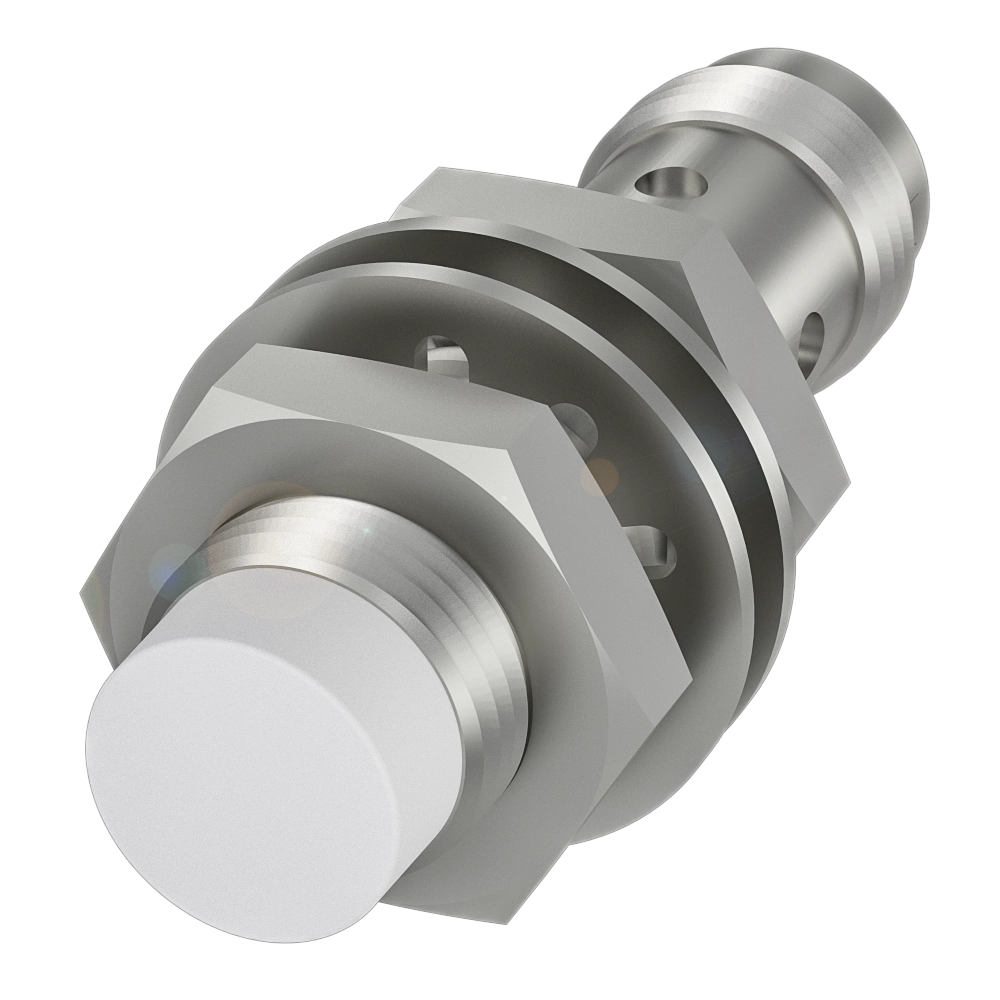

BES02WJ (BES M12MC1-NSC10F-S04G) - Inductive proximity switches and proximity sensors - Dimension: Ø 12 x 45 mm, Style Housing: M12x1, Installation: non-flush, Range: 10 mm, Switching output: NPN Normally open (NO), Switching frequency: 600 Hz, Housing material: Brass, Nickel-free coated, Material sensing surface: PBT, Connection: Connector, M12x1-Male, 3-pin, Operating voltage Ub: 10...30 VDC, Ambient temperature: -25...85 °C, IP rating: IP68, according to BWN Pr 20, Approval/Conformity: EAC, CE, cULus, WEEE - BALLUFF USA
| Ambient temperature | -25...85 °C |
|---|---|
| Connection | Connector, M12x1-Male, 3-pin |
| Dimension | Ø 12 x 45 mm |
| Housing material | Brass, Nickel-free coated |
| Installation | non-flush |
| IP Rating | IP68, according to BWN Pr 20 |
| Material sensing surface | PBT |
| Operating voltage Ub | 10...30 VDC |
| Range | 10 mm |
| Style Housing | M12x1 |
| Switching frequency | 600 Hz |
| Switching output | NPN Normally open (NO) |
Request a quote for this part
Email [email protected] or call (825) 454-5367 for pricing and availability.
Frequently Asked Questions
How do I get pricing for BES02WJ?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email [email protected], and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the BES02WJ?
BES02WJ is a Balluff part. KKM Solutions sources Balluff components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
Is BES02WJ discontinued, and can I still get one?
KKM Solutions does not publish a manufacturer lifecycle status for BES02WJ — check Balluff's own product page for whether it is current, superseded, or end-of-life. It does not change what we can do: we source current-production, superseded and long-obsolete parts the same way, and where a part is genuinely unavailable we identify a form-fit-function equivalent. Send the part number through the quote form on this page, or use our obsolete part lookup at https://kkmsolutions.com/tools/obsolete-part-lookup/.
What are the key specifications of BES02WJ?
Key specifications include Ambient temperature: -25...85 °C; Connection: Connector, M12x1-Male, 3-pin; Dimension: Ø 12 x 45 mm; Housing material: Brass, Nickel-free coated. The full specification table on this page lists every published attribute for this part.
How quickly can BES02WJ ship?
In-stock items are dispatched the same business day for orders placed by 11 AM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products
Balluff Balluff BES M08MH1-PSC30B-S04G
Balluff Balluff BES M12MC1-PSC10F-S04G
Balluff Balluff BES M18MI-NSC80B-S04G

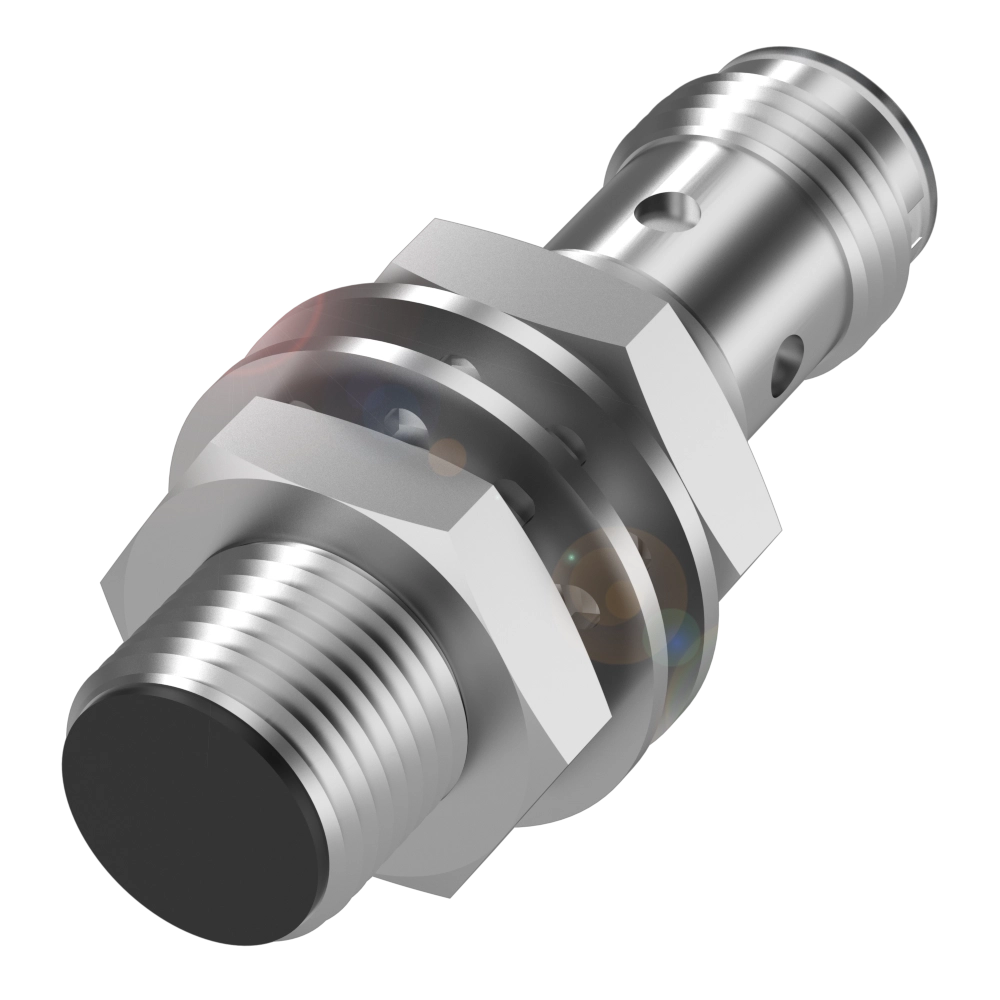

Balluff Balluff BES M12MD1-NSC60B-S04G
