Balluff BES 515-211-E5-E-S21
BES02E5 (BES 515-211-E5-E-S21) - Inductive proximity switches and proximity sensors - Dimension: Ø 18 x 70.5 mm, Style Housing: M18x1, Installation: for flush mounting, Range: 5 mm, Switching output: Normally open (NO), Switching frequency: 400 Hz, Housing material: Stainless steel (1.4305), Material sensing surface: PA 12, Connection: Connector, 1/2"-20 UNF-2A-Male, Operating voltage Ub: 20...250 VDC/20...250 VAC, Ambient temperature: -25...70 °C, IP rating: IP67, Approval/Conformity: CE, cULus, EAC, WEEE - BALLUFF USA
| Ambient temperature | -25...70 °C |
|---|---|
| Approval/Conformity | CE, cULus, EAC, WEEE |
| Connection | Connector, 1/2"-20 UNF-2A-Male |
| Dimension | Ø 18 x 70.5 mm |
| Housing material | Stainless steel (1.4305) |
| Installation | for flush mounting |
| IP Rating | IP67 |
| Material sensing surface | PA 12 |
| Operating voltage Ub | 20...250 VDC/20...250 VAC |
| Range | 5 mm |
| Style Housing | M18x1 |
| Switching frequency | 400 Hz |
| Switching output | Normally open (NO) |
Frequently Asked Questions
How do I get pricing for BES02E5?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the BES02E5?
BES02E5 is a Balluff part. KKM Solutions sources Balluff components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of BES02E5?
Key specifications include Ambient temperature: -25...70 °C; Approval/Conformity: CE, cULus, EAC, WEEE; Connection: Connector, 1/2"-20 UNF-2A-Male; Dimension: Ø 18 x 70.5 mm. The full specification table on this page lists every published attribute for this part.
How quickly can BES02E5 ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products

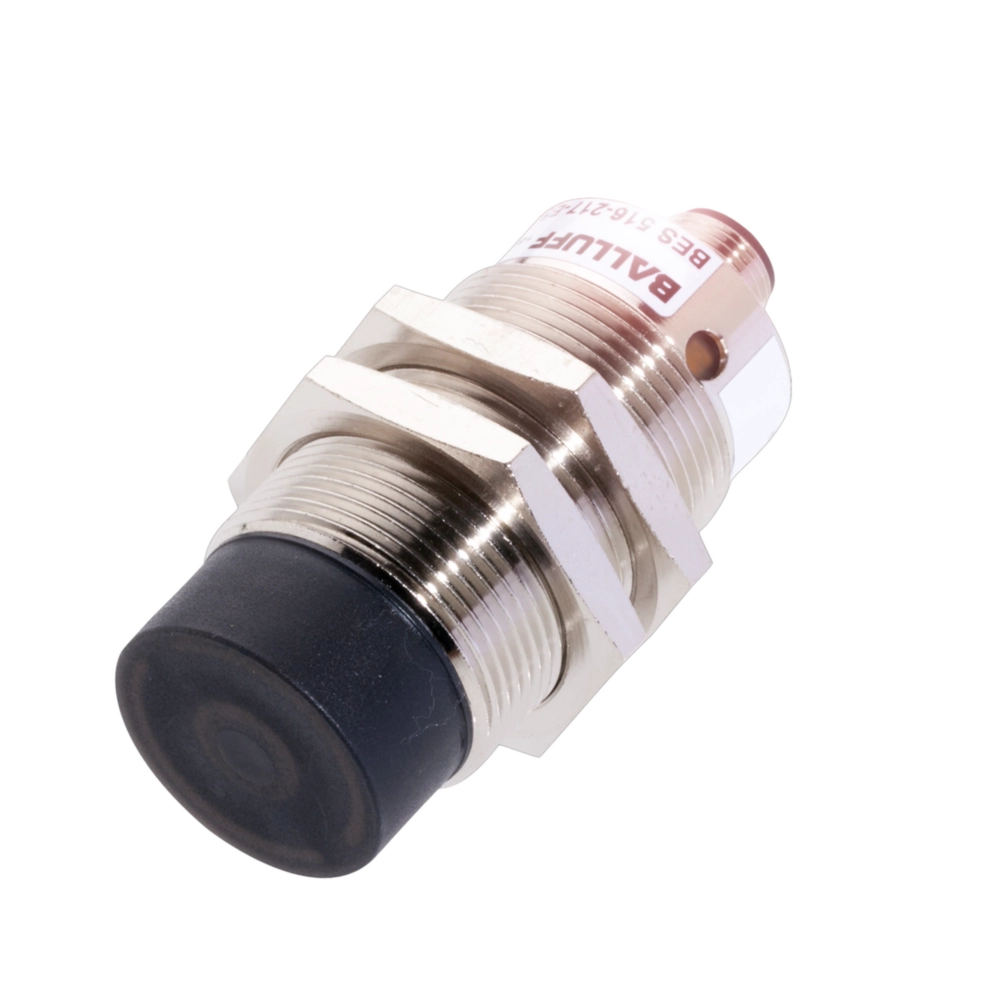

Balluff Balluff BES 516-432-E5-L-S21
Balluff Balluff BES 515-215-E5-E-S21
Balluff Balluff BES 516-218-E5-E-S27

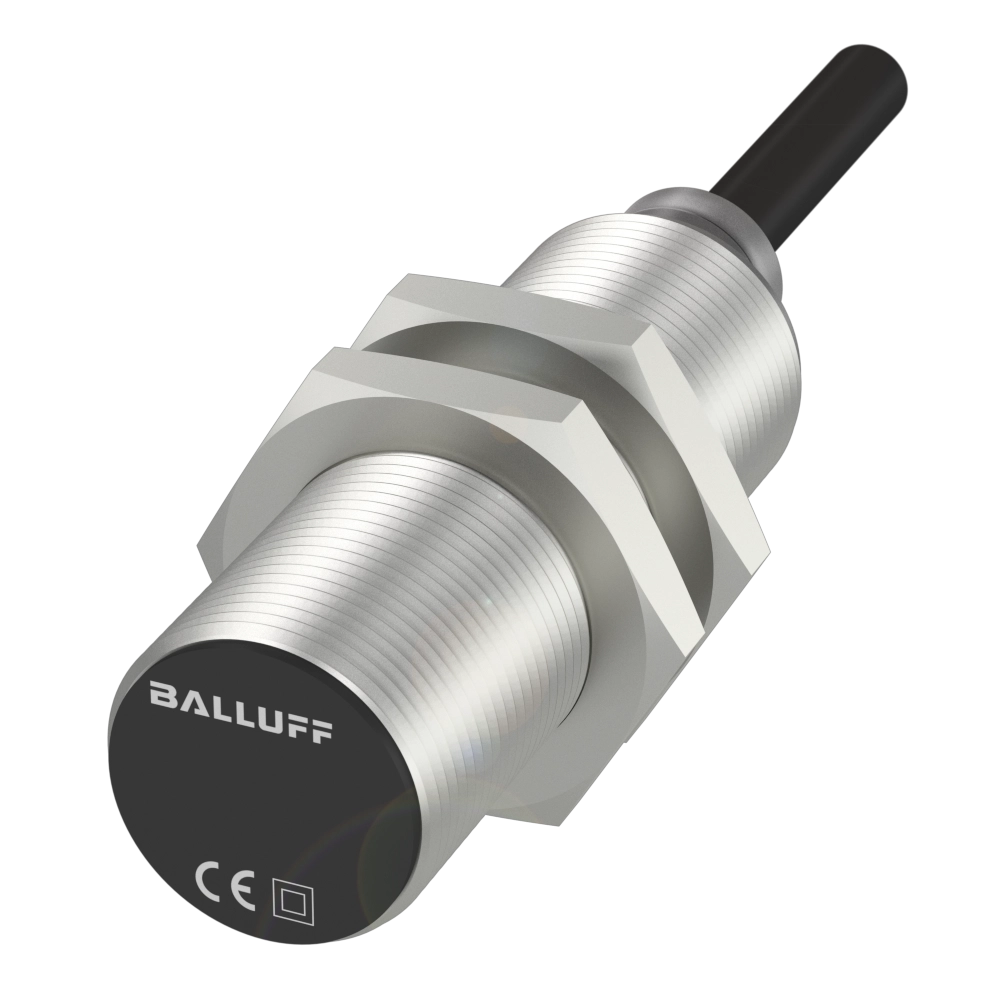

Balluff Balluff BES M18MI-POC80B-BP05

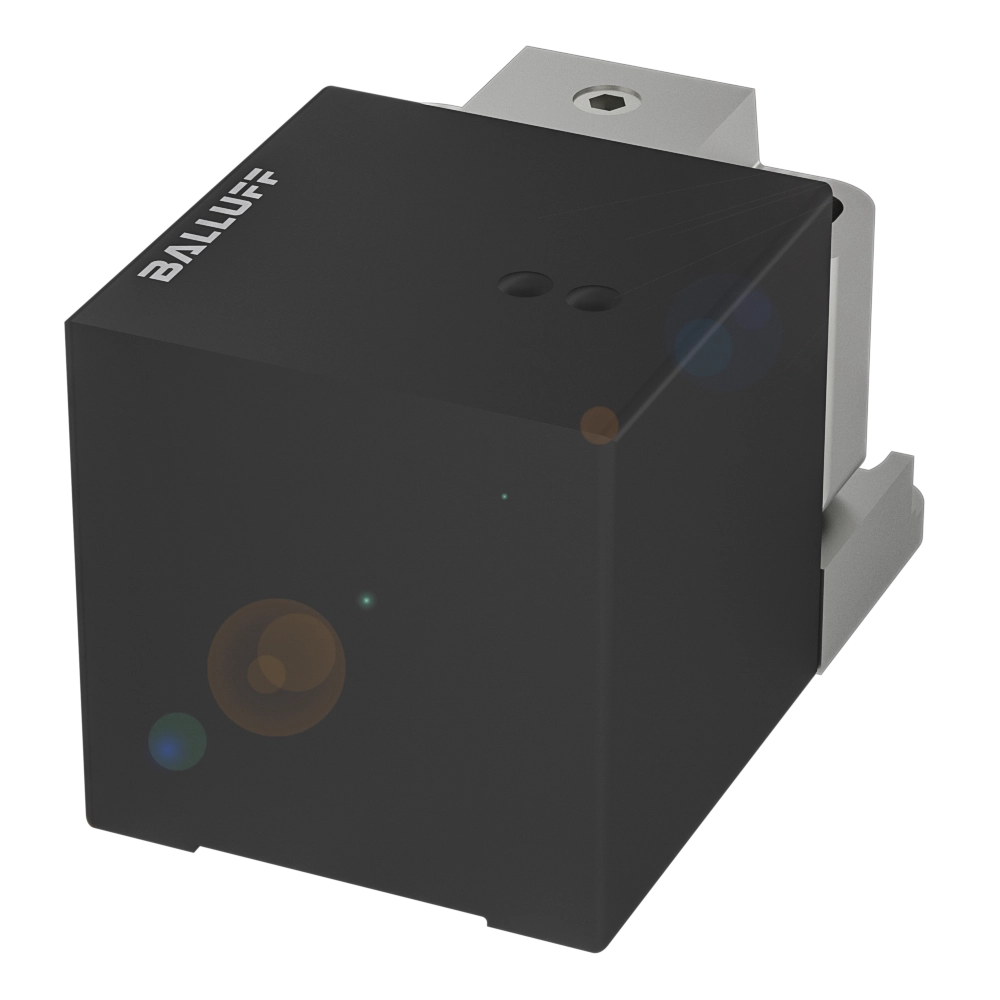

Balluff Balluff BES Q40KHU-PAC20B-S04G
