Balluff BES M08EE-POC15B-S04G
BES0142 (BES M08EE-POC15B-S04G) - Inductive proximity switches and proximity sensors - List price USA: 129.26 USD - Dimension: Ø 8 x 43 mm, Style Housing: M8x1, Installation: for flush mounting, Range: 1.5 mm, Switching output: PNP Normally closed (NC), Switching frequency: 3000 Hz, Housing material: Stainless steel, Material sensing surface: PBT, Connection: Connector, M12x1-Male, 4-pin, Operating voltage Ub: 10...30 VDC, Ambient temperature: -25...70 °C, IP rating: IP68, Approval/Conformity: CE, UKCA, cULus, WEEE - BALLUFF USA
| Ambient temperature | -25...70 °C |
|---|---|
| Connection | Connector, M12x1-Male, 4-pin |
| Dimension | Ø 8 x 43 mm |
| Housing material | Stainless steel |
| Installation | for flush mounting |
| IP Rating | IP68 |
| Material sensing surface | PBT |
| Operating voltage Ub | 10...30 VDC |
| Range | 1.5 mm |
| Style Housing | M8x1 |
| Switching frequency | 3000 Hz |
| Switching output | PNP Normally closed (NC) |
Frequently Asked Questions
How do I get pricing for BES0142?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the BES0142?
BES0142 is a Balluff part. KKM Solutions sources Balluff components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of BES0142?
Key specifications include Ambient temperature: -25...70 °C; Connection: Connector, M12x1-Male, 4-pin; Dimension: Ø 8 x 43 mm; Housing material: Stainless steel. The full specification table on this page lists every published attribute for this part.
How quickly can BES0142 ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products

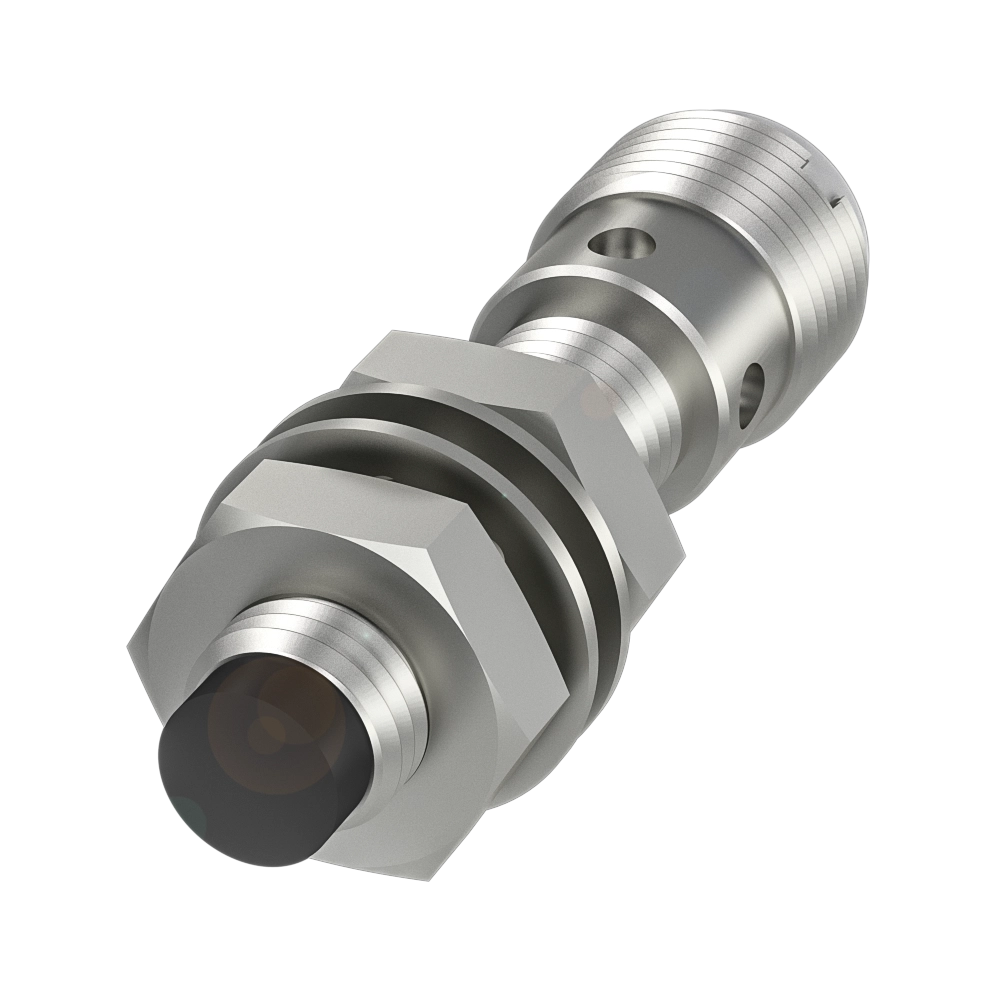

Balluff Balluff BES M08ED-NSC25F-S04G

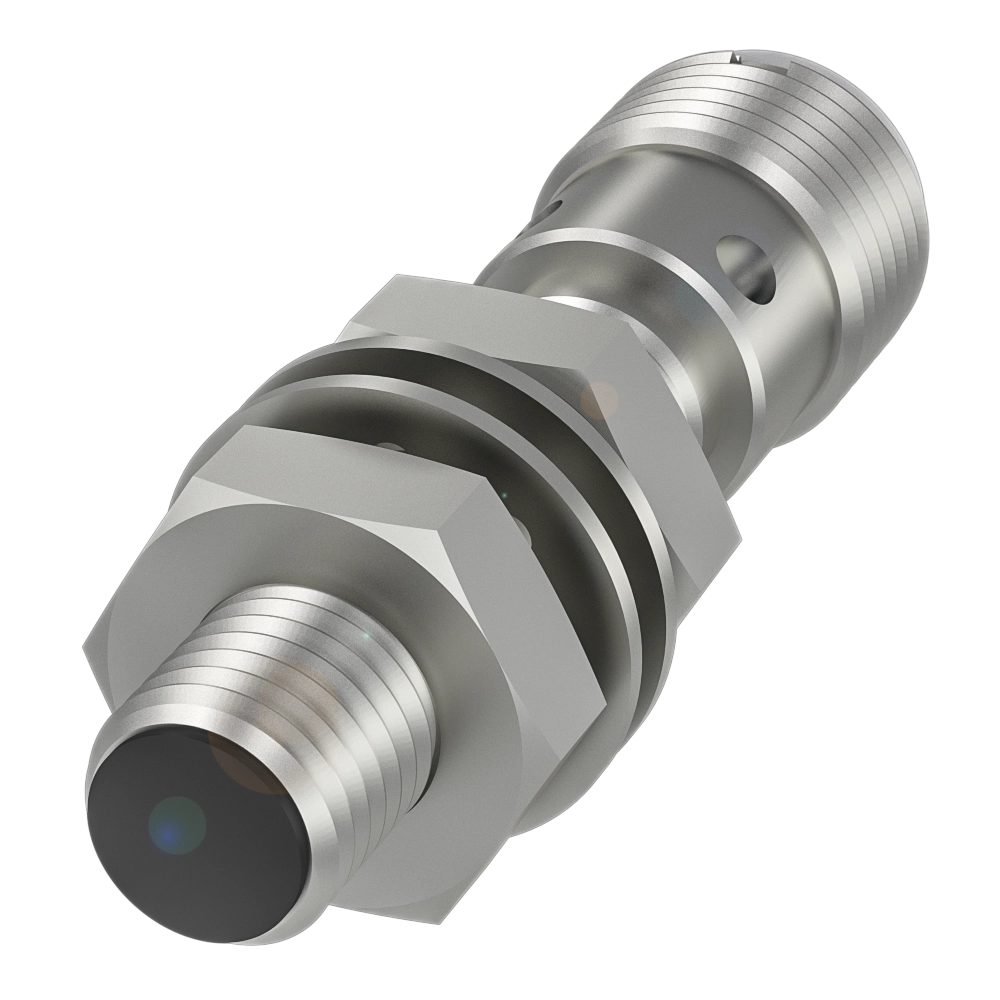

Balluff Balluff BES M08EE-PSC20B-S04G-003
