BES00TY (BES 516-343-G-E5-C-S49) - Inductive proximity switches and proximity sensors - List price USA: 145.73 USD - Dimension: Ø 8 x 45 mm, Style Housing: M8x1, Installation: for flush mounting, Range: 2 mm, Switching output: NPN Normally open (NO), Switching frequency: 1500 Hz, Housing material: Stainless steel, Material sensing surface: PBT, Connection: Connector, M8x1-Male, 3-pin, Operating voltage Ub: 10...30 VDC, Ambient temperature: -40...85 °C, IP rating: IP68, Approval/Conformity: CE, UKCA, cULus, WEEE - BALLUFF USA
| Ambient temperature | -40...85 °C |
|---|---|
| Connection | Connector, M8x1-Male, 3-pin |
| Dimension | Ø 8 x 45 mm |
| Housing material | Stainless steel |
| Installation | for flush mounting |
| IP Rating | IP68 |
| Material sensing surface | PBT |
| Operating voltage Ub | 10...30 VDC |
| Range | 2 mm |
| Style Housing | M8x1 |
| Switching frequency | 1500 Hz |
| Switching output | NPN Normally open (NO) |
Request a quote for this part
Email [email protected] or call (825) 454-5367 for pricing and availability.
Frequently Asked Questions
How do I get pricing for BES00TY?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email [email protected], and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the BES00TY?
BES00TY is a Balluff part. KKM Solutions sources Balluff components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
Is BES00TY discontinued, and can I still get one?
KKM Solutions does not publish a manufacturer lifecycle status for BES00TY — check Balluff's own product page for whether it is current, superseded, or end-of-life. It does not change what we can do: we source current-production, superseded and long-obsolete parts the same way, and where a part is genuinely unavailable we identify a form-fit-function equivalent. Send the part number through the quote form on this page, or use our obsolete part lookup at https://kkmsolutions.com/tools/obsolete-part-lookup/.
What are the key specifications of BES00TY?
Key specifications include Ambient temperature: -40...85 °C; Connection: Connector, M8x1-Male, 3-pin; Dimension: Ø 8 x 45 mm; Housing material: Stainless steel. The full specification table on this page lists every published attribute for this part.
How quickly can BES00TY ship?
In-stock items are dispatched the same business day for orders placed by 11 AM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products

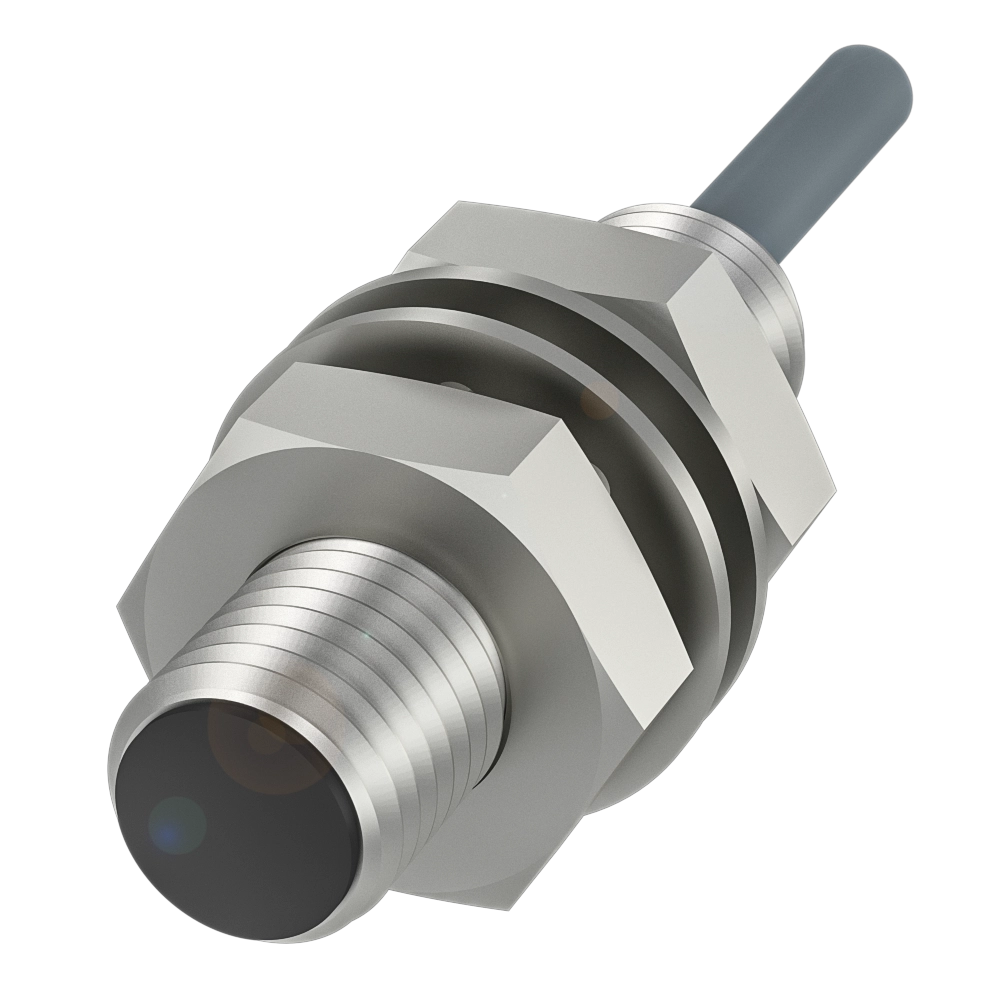

Balluff Balluff BES 516-343-E4-C-05

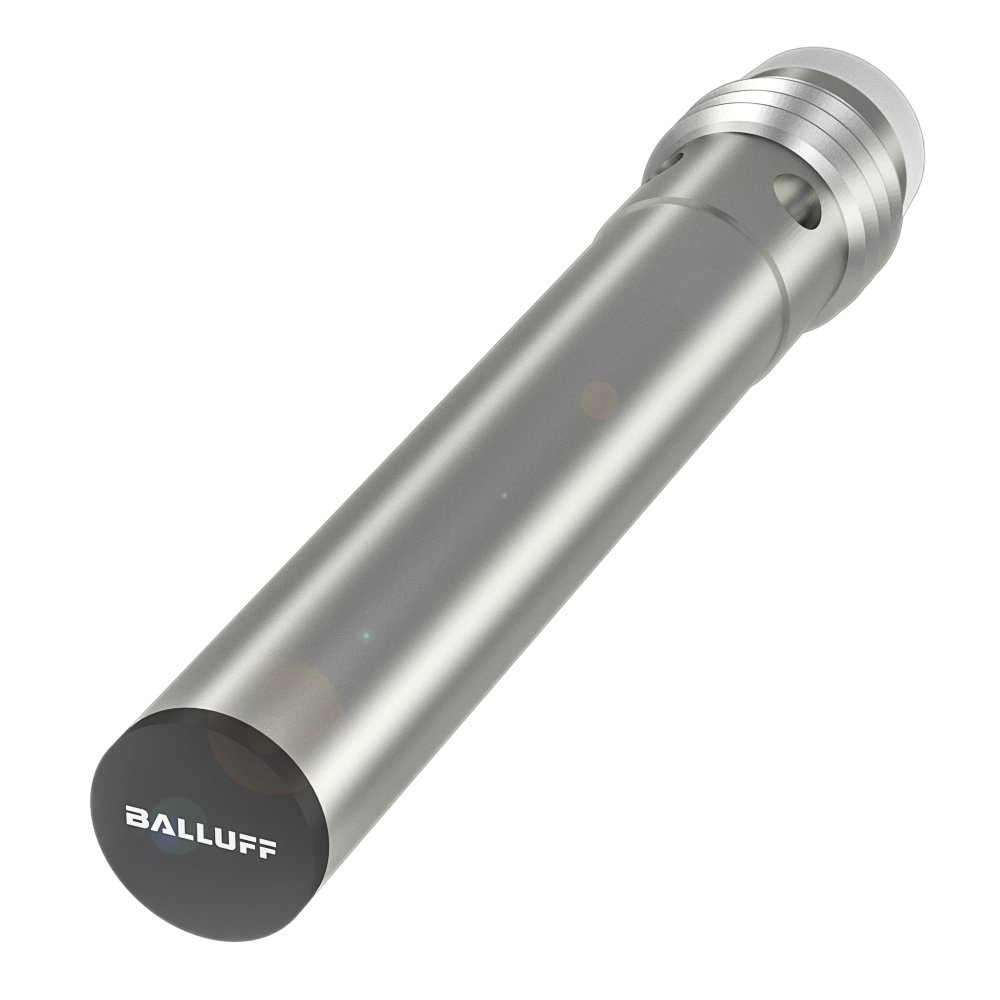

Balluff Balluff BES 516-371-E5-C-S49
