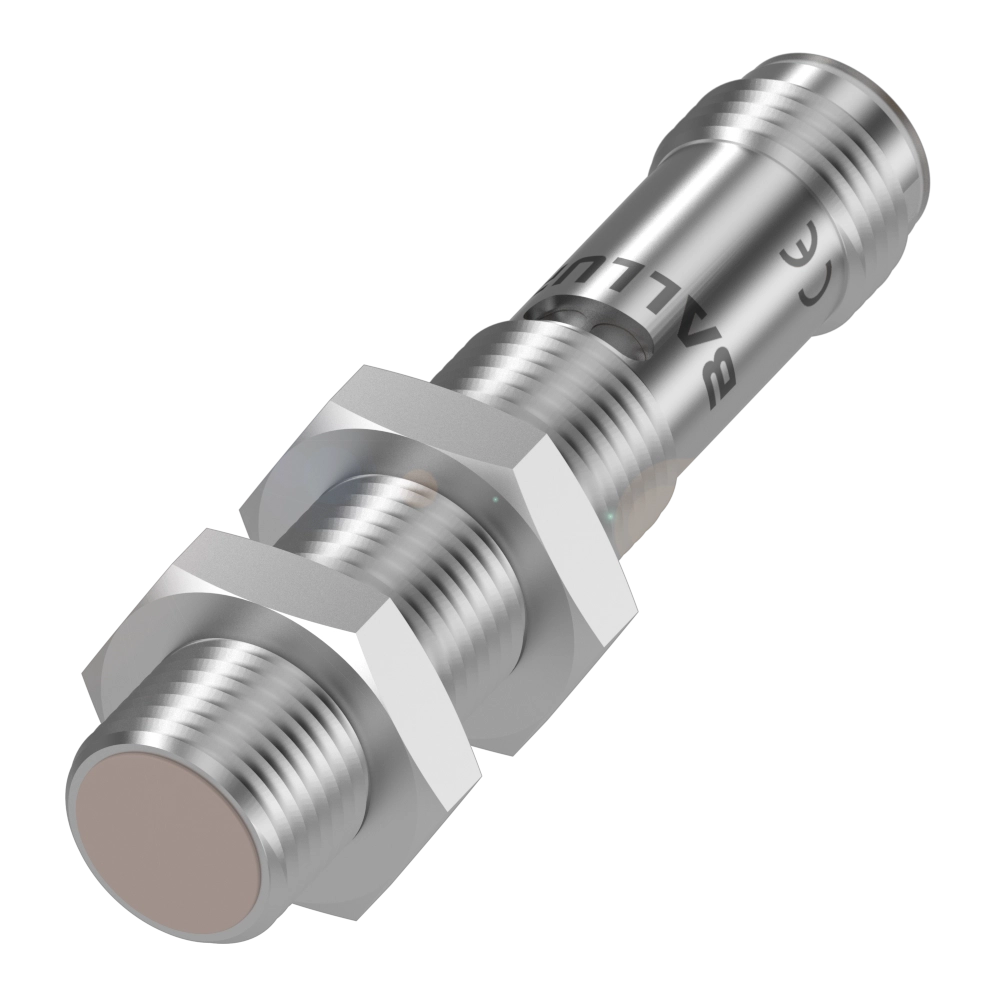

Balluff BCS M12K4D2-PIM50C-S04G
BCS017M (BCS M12K4D2-PIM50C-S04G) - Capacitive sensors for object detection - List price USA: 282.33 USD - Dimension: Ø 12 x 60 mm, Series: M12, Thread (A): M12x1, Installation: for flush mounting, Connection: Connector, M12x1-Male, 4-pin, Switching output: Push-pull NO(PNP)/NC(NPN), Switching frequency: 100 Hz, Interface: IO-Link 1.1, Range: 0.5...5 mm, Sensitivity: Switching distance teachable, Housing material: 1.4404 stainless steel, Material sensing surface: PEEK, Ambient temperature: -10...80 °C, Operating voltage Ub: 18...30 VDC, Approval/Conformity: cULus, CE, UKCA, WEEE, IP rating: IP67 - BALLUFF USA
| Ambient temperature | -10...80 °C |
|---|---|
| Connection | Connector, M12x1-Male, 4-pin |
| Dimension | Ø 12 x 60 mm |
| Housing material | 1.4404 stainless steel |
| Installation | for flush mounting |
| Interface | IO-Link 1.1 |
| IP Rating | IP67 |
| Material sensing surface | PEEK |
| Operating voltage Ub | 18...30 VDC |
| Range | 0.5...5 mm |
| Sensitivity | Switching distance teachable |
| Series | M12 |
| Switching frequency | 100 Hz |
| Switching output | Push-pull NO(PNP)/NC(NPN) |
| Thread (A) | M12x1 |
Frequently Asked Questions
How do I get pricing for BCS017M?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the BCS017M?
BCS017M is a Balluff part. KKM Solutions sources Balluff components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of BCS017M?
Key specifications include Ambient temperature: -10...80 °C; Connection: Connector, M12x1-Male, 4-pin; Dimension: Ø 12 x 60 mm; Housing material: 1.4404 stainless steel. The full specification table on this page lists every published attribute for this part.
How quickly can BCS017M ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products
Balluff Balluff BCS M12K4D2-GOM50C-S04G
Balluff Balluff BCS M12K4D2-GSM50C-S04G
Balluff Balluff BCS M12K4G1-GOM50C-EP02

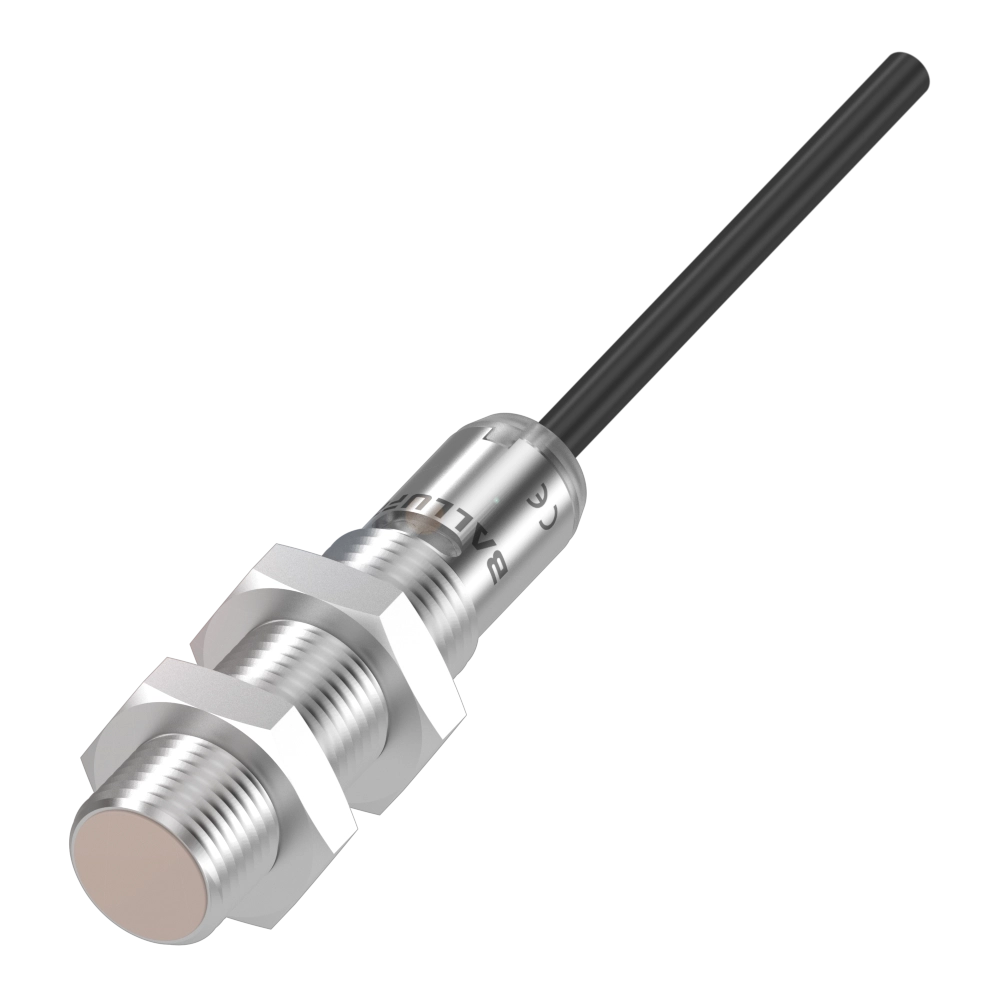

Balluff Balluff BCS M12K4G1-GSM50C-EP02

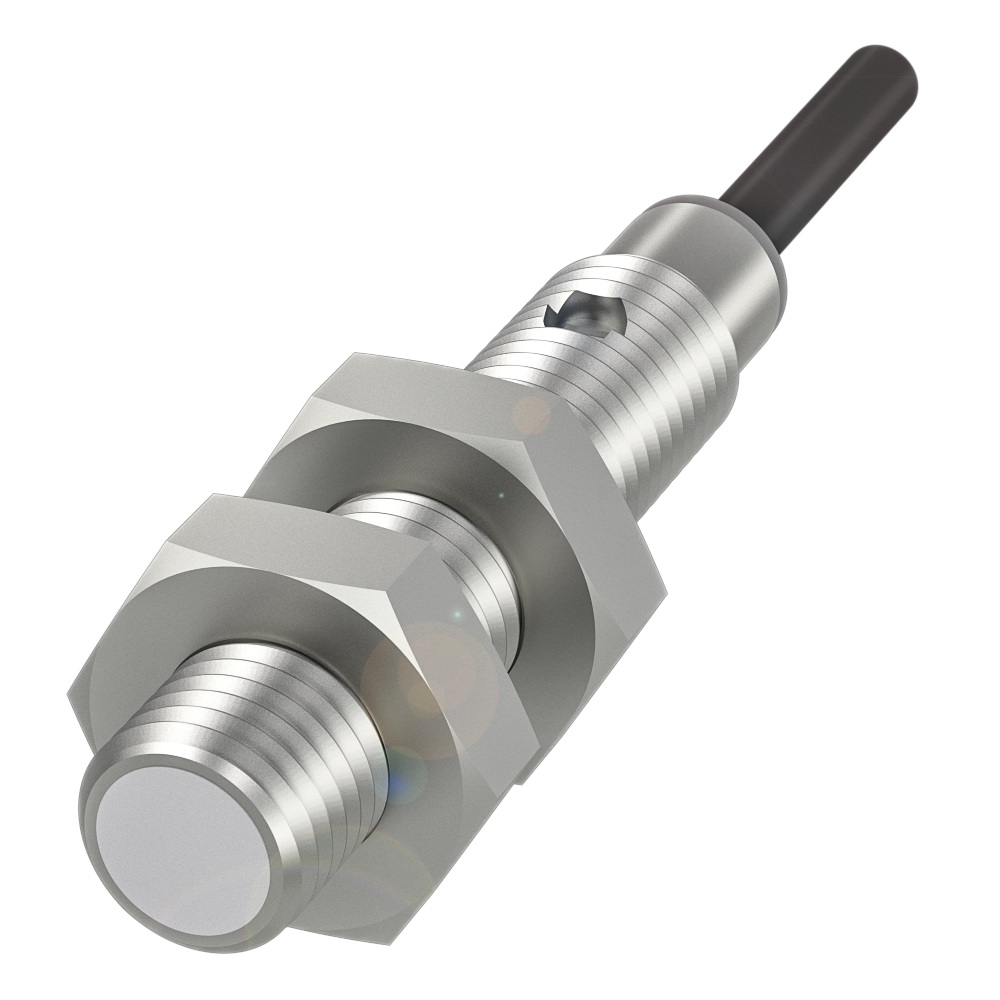

Balluff Balluff BCS M08T4E1-NSM15C-EP02
