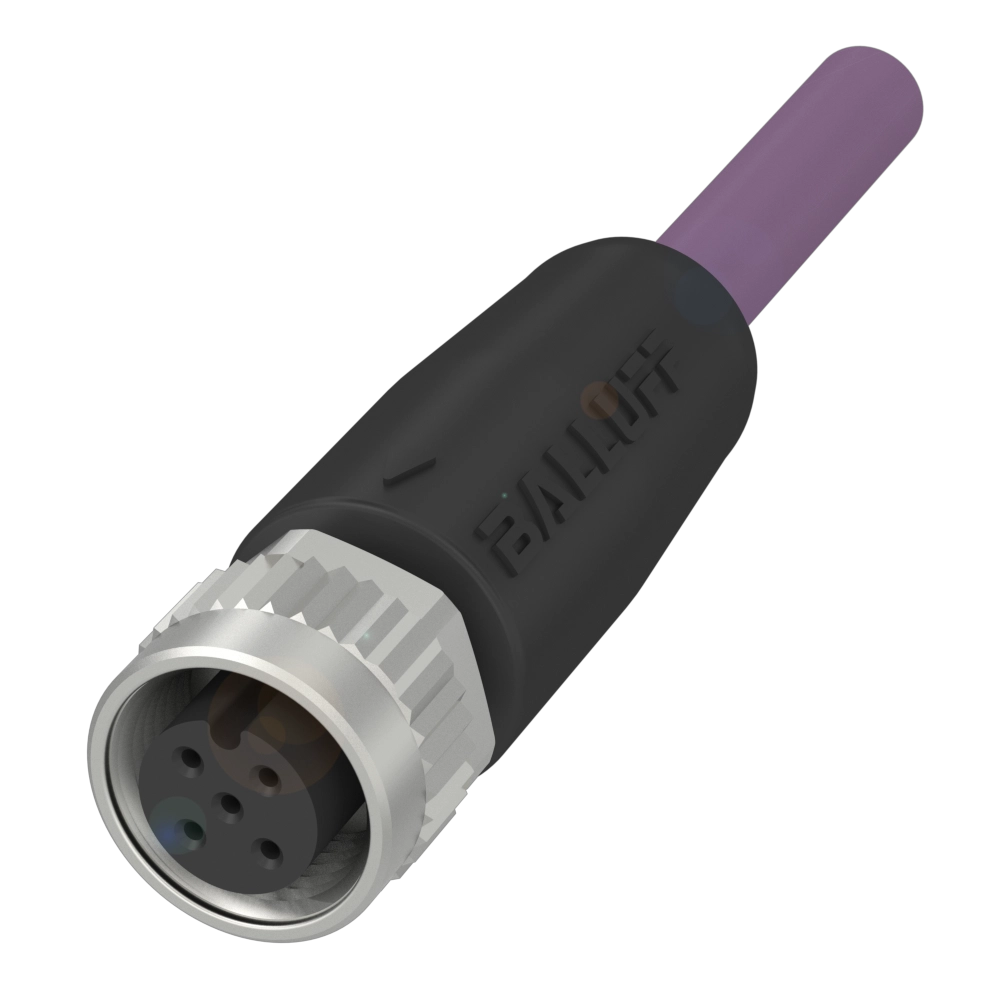

Balluff BCC M415-0000-1A-129-PS72N3-120
BCC0JMK (BCC M415-0000-1A-129-PS72N3-120) - Single-ended cordsets - List price USA: 183.59 USD - Connection: M12x1-Female, straight, 5-pin, A-coded, Interface: CAN, Cable: PUR Shielded violet, 12 m, Number of conductors: 2, Conductor cross-section: 0.34 mm², Cable temperature, fixed routing: -30...70 °C, Cable temperature, flexible routing: -30...70 °C, Operating voltage Ub: 60 VDC / 60 VAC, Rated current (40 °C): 4.0 A, IP rating: IP67, Cable jacket, color: violet, Approval/Conformity: CE, WEEE, cULus - BALLUFF USA
| Approval/Conformity | CE, WEEE, cULus |
|---|---|
| Cable | PUR Shielded violet, 12 m |
| Cable jacket, color | violet |
| Cable temperature, fixed routing | -30...70 °C |
| Cable temperature, flexible routing | -30...70 °C |
| Conductor cross-section | 0.34 mm² |
| Connection | M12x1-Female, straight, 5-pin, A-coded |
| Interface | CAN |
| IP Rating | IP67 |
| Number of Conductors | 2 |
| Operating voltage Ub | 60 VDC / 60 VAC |
| Rated current (40 °C) | 4.0 A |
Frequently Asked Questions
How do I get pricing for BCC0JMK?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the BCC0JMK?
BCC0JMK is a Balluff part. KKM Solutions sources Balluff components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of BCC0JMK?
Key specifications include Approval/Conformity: CE, WEEE, cULus; Cable: PUR Shielded violet, 12 m; Cable jacket, color: violet; Cable temperature, fixed routing: -30...70 °C. The full specification table on this page lists every published attribute for this part.
How quickly can BCC0JMK ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products

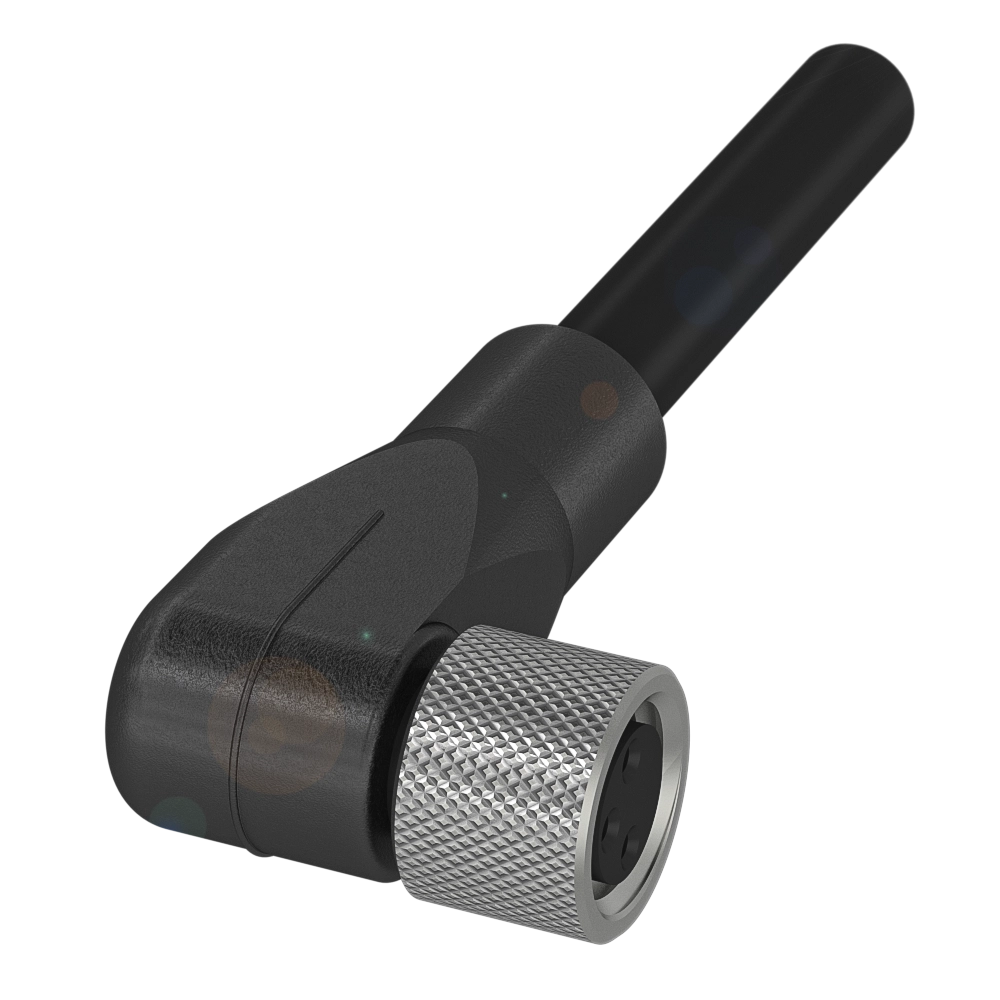

Balluff Balluff BCC W323-0000-10-001-SW0434-020

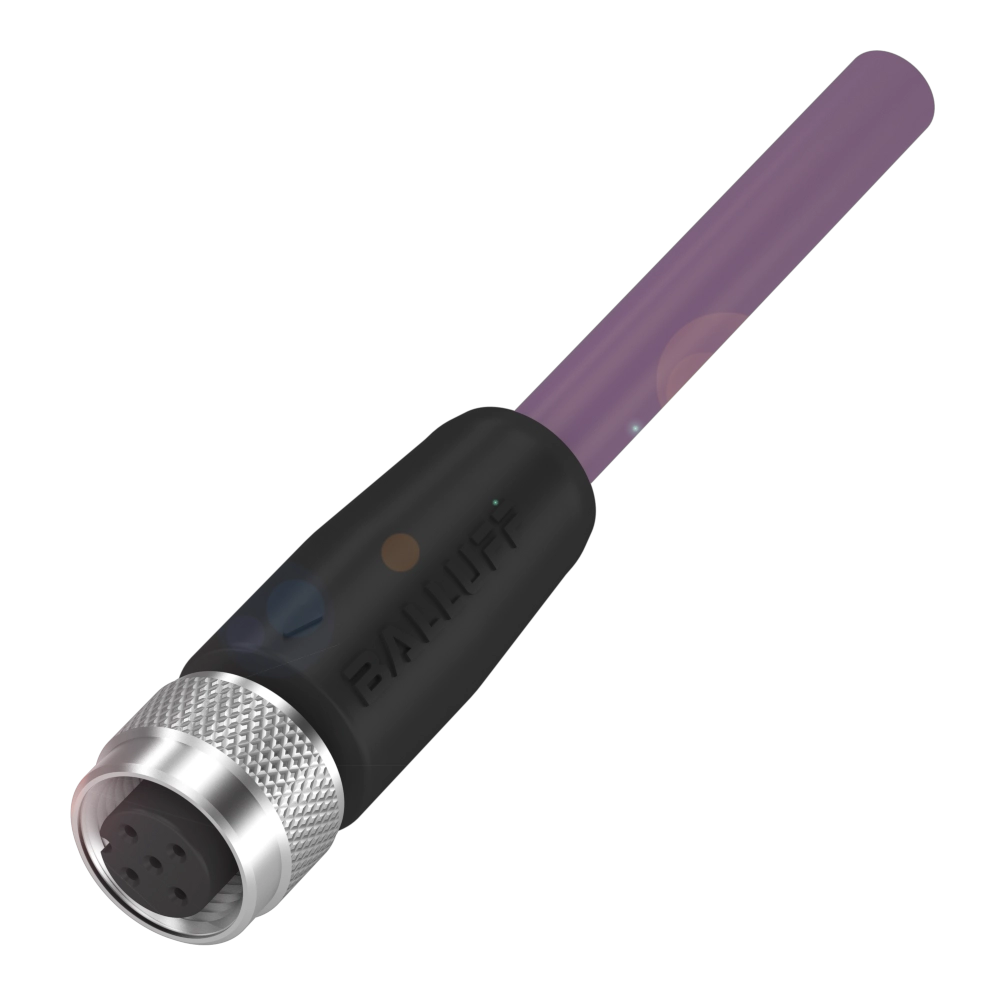

Balluff Balluff BCC M415-0000-1A-129-PS72N3-150
