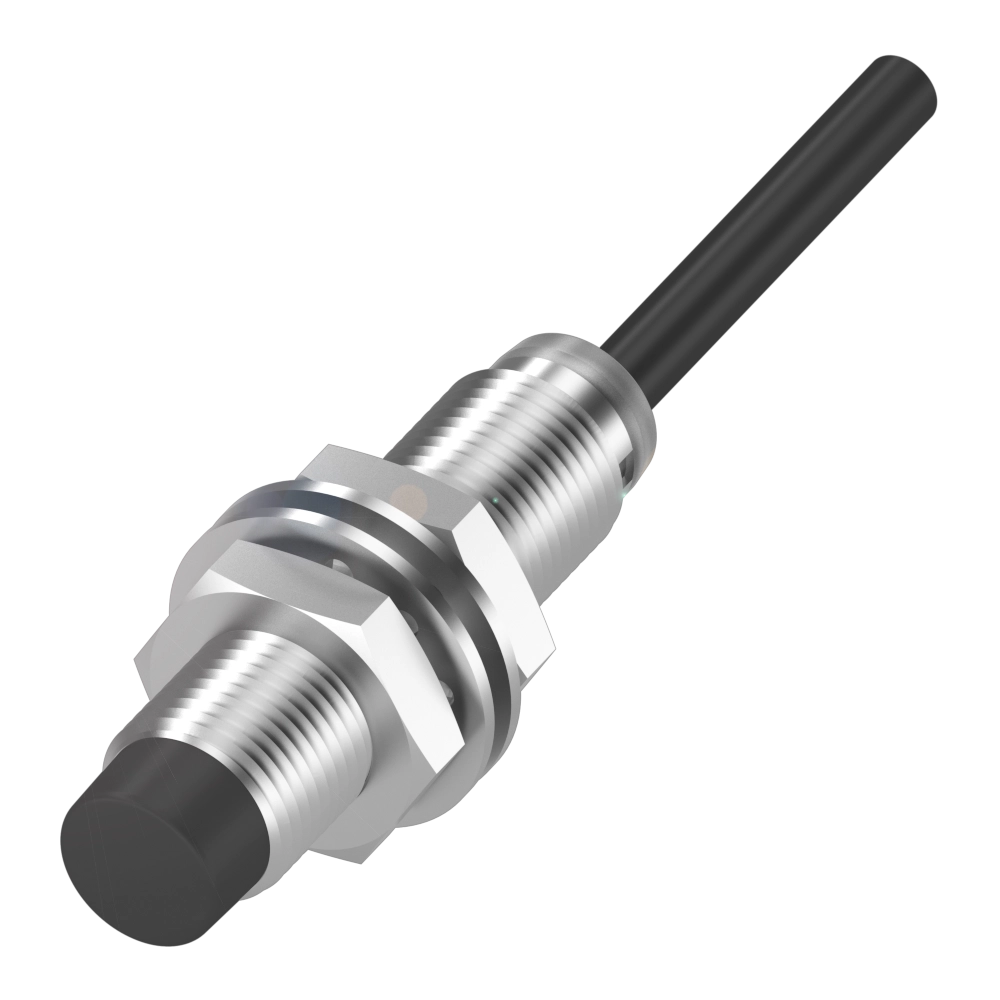

BAW004L — Balluff BAW M12MF-IAC70G-BP02
KKM Solutions is an independent parts distributor, not an authorized Balluff dealer — how we source.
Overview
Part number BAW004L from Balluff, listed in Inductive Proximity Sensors. Specifications on file: Ambient temperature -40...80 °C; Analog output Analog, current 0…20 mA; Connection Cable, 2.00 m, PUR; Dimension Ø 12 x 43 mm. KKM Solutions quotes this part with pricing and availability confirmed per order.
BAW004L (BAW M12MF-IAC70G-BP02) - Inductive distance sensors - Dimension: Ø 12 x 43 mm, Style Housing: M12x1, Installation: non-flush, Range: 0.2...7 mm, Analog output: Analog, current 0…20 mA, Output characteristic: falling on approach, Limit frequency –3 dB: 1000 Hz, Repeat accuracy: ±7 µm, Non-linearity max.: ±70 µm, Housing material: Brass, Nickel-free coated, Material sensing surface: LCP, Connection: Cable, 2.00 m, PUR, Operating voltage Ub: 16...30 VDC, Ambient temperature: -40...80 °C, IP rating: IP68, Approval/Conformity: CE, cULus, EAC, WEEE - BALLUFF USA
Specifications
| Ambient temperature | -40...80 °C |
|---|---|
| Analog output | Analog, current 0…20 mA |
| Connection | Cable, 2.00 m, PUR |
| Dimension | Ø 12 x 43 mm |
| Housing material | Brass, Nickel-free coated |
| Installation | non-flush |
| IP Rating | IP68 |
| Limit frequency –3 dB | 1000 Hz |
| Material sensing surface | LCP |
| Non-linearity max. | ±70 µm |
| Operating voltage Ub | 16...30 VDC |
| Output characteristic | falling on approach |
| Range | 0.2...7 mm |
| Repeat accuracy | ±7 µm |
| Style Housing | M12x1 |
Product details
| Manufacturer | Balluff |
|---|---|
| Manufacturer part number | BAW004L |
| Product category | Inductive Proximity Sensors |
| Published specifications | 15 attributes listed |
| Related part numbers | 16 other part numbers in this family |
Request a quote for this part
Email orderdesk@kkmsolutions.com or call (825) 454-5367 for pricing and availability.
Frequently Asked Questions
How do I get pricing for BAW004L?
This part is quoted on request, so no price is listed for it here. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the BAW004L?
BAW004L is made by Balluff and is listed in our Inductive Proximity Sensors category. KKM Solutions is an independent distributor, not an authorized Balluff dealer: we source the exact Balluff part number BAW004L, and the quote confirms condition and lead time before you order.
Is the BAW004L new and genuine?
Parts we supply are new and genuine unless the quote expressly states otherwise. Where a part is new-old-stock, from excess inventory, refurbished or open-box, the quote says so before you approve it.
What warranty comes with the BAW004L, and can I return it?
Parts we supply are warranted against manufacturing defects for 1 year from the date of delivery; where the manufacturer's own warranty is longer, the manufacturer's warranty applies. The warranty covers repair, replacement, or credit of the defective part and does not cover normal wear items, misapplication, improper installation, or consequential damages. Contact us within 30 days of delivery before returning anything — all returns need a return authorization from the order desk.
What is the lifecycle status of BAW004L?
No published lifecycle status is on file for BAW004L. Balluff lists whether a catalog number is current, superseded or end-of-life on its own product page, and our order desk confirms the status with the manufacturer at quote time, before you commit. Send the part number through the quote form on this page.
What are the key specifications of BAW004L?
Key specifications include Ambient temperature: -40...80 °C; Analog output: Analog, current 0…20 mA; Connection: Cable, 2.00 m, PUR; Dimension: Ø 12 x 43 mm. The full specification table on this page lists every published attribute for this part.
What voltage does BAW004L use?
Per the published specification for BAW004L: Operating voltage Ub: 16...30 VDC. Confirm against the full specification table on this page, or ask our order desk to verify it with the manufacturer at quote time.
What is the IP rating of BAW004L?
Per the published specification for BAW004L: IP Rating: IP68. Confirm against the full specification table on this page, or ask our order desk to verify it with the manufacturer at quote time.
What material is BAW004L made of?
Per the published specification for BAW004L: Housing material: Brass, Nickel-free coated. Confirm against the full specification table on this page, or ask our order desk to verify it with the manufacturer at quote time.
How quickly can BAW004L ship?
Lead time for BAW004L is quoted per order and confirmed on your quote, which our order desk sends within 1 business day. For a line-down emergency, call the 24/7 order desk at (825) 454-5367.
Variants & Related Part Numbers
Other Balluff part numbers in this family:
Frequently Searched Balluff Part Numbers
Related Products
Balluff Balluff BAW M12MG2-ICC20B-BP03
Balluff Balluff BAW M12MF-ICC70G-BP02
Balluff Balluff BAW M12MG2-ICC20B-BP00,2-GS04

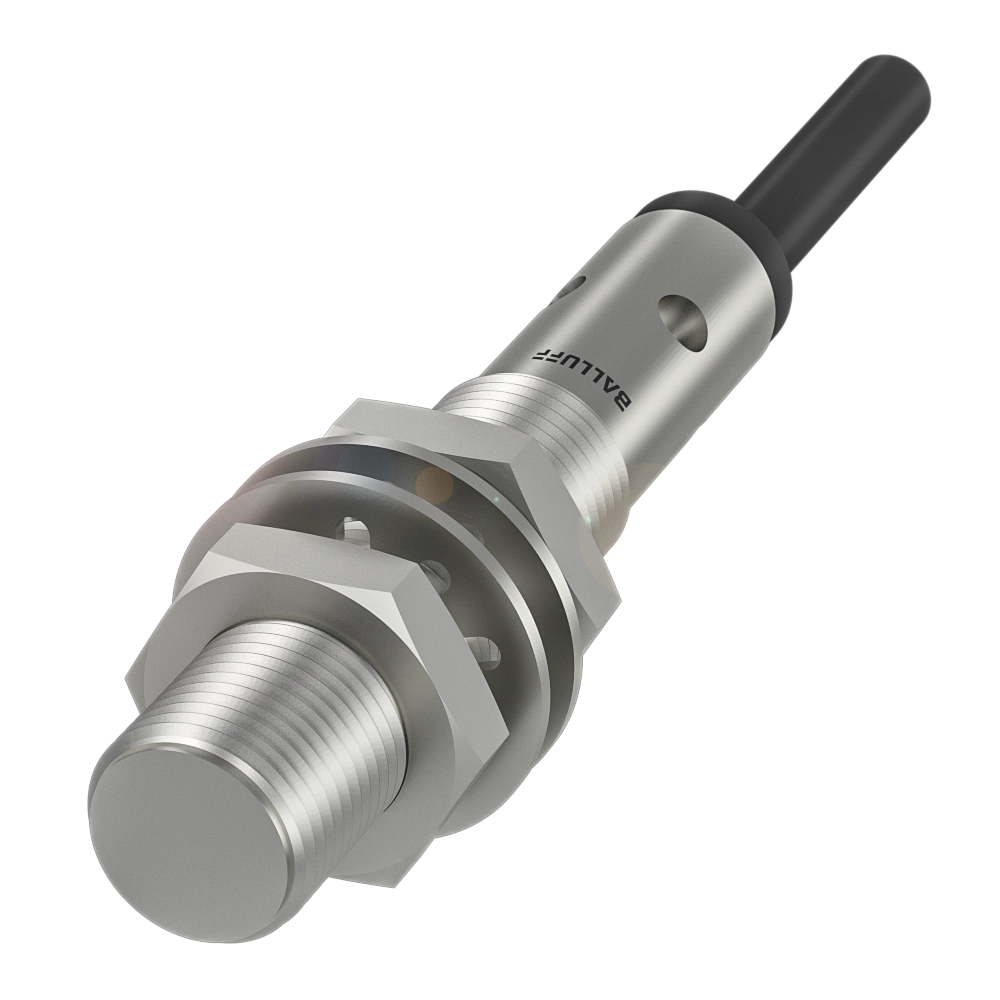

Balluff Balluff BAW M12MG2-IAC20B-BP05
Balluff Balluff BAW M12MG2-IAC20B-BP03

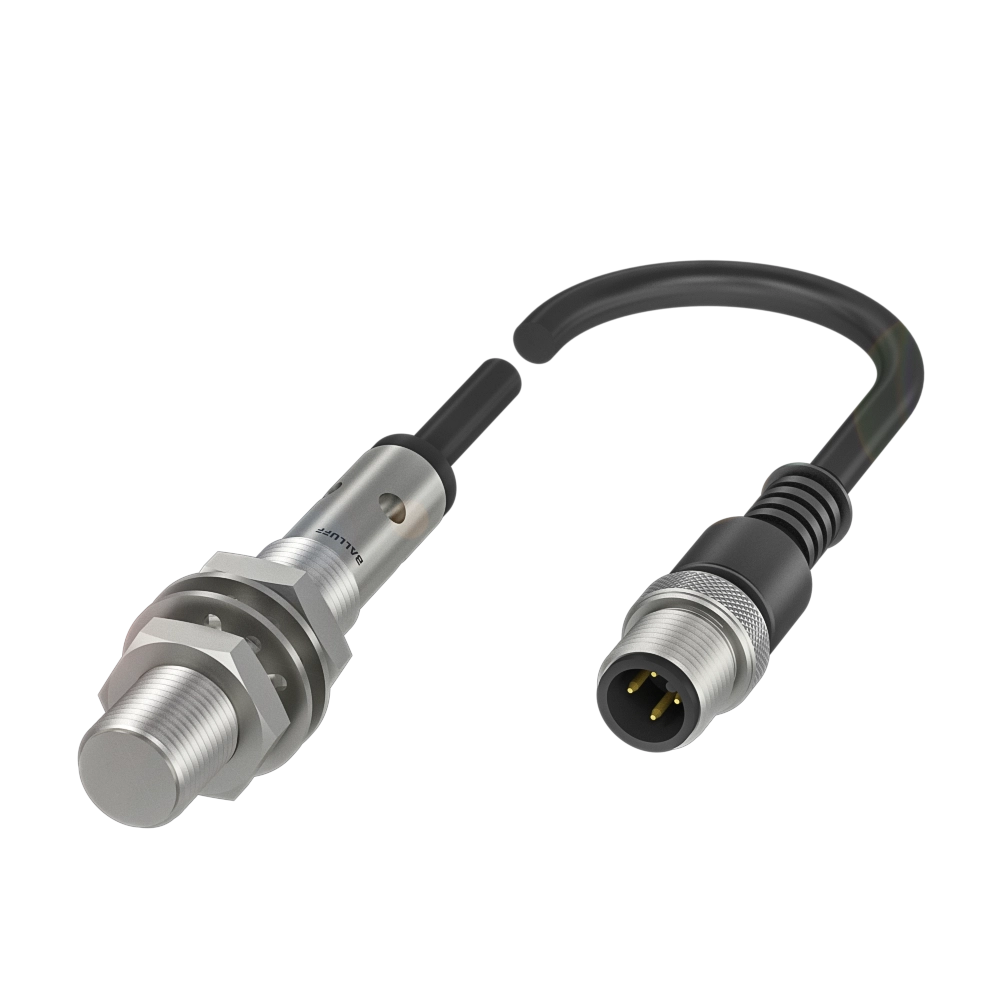

Balluff Balluff BAW M12MG2-IAC20B-BP01,5-GS04
