BAW000Z — Balluff BAW M12MD-UAC40F-S04G
KKM Solutions is an independent parts distributor, not an authorized Balluff dealer — how we source.
Overview
Part number BAW000Z from Balluff, listed in Inductive Proximity Sensors. Specifications on file: Ambient temperature -10...70 °C; Analog output Analog, voltage 0...10 V; Connection Connector, M12x1-Male, 3-pin; Dimension Ø 12 x 45 mm. KKM Solutions quotes this part with pricing and availability confirmed per order.
BAW000Z (BAW M12MD-UAC40F-S04G) - Inductive distance sensors - Dimension: Ø 12 x 45 mm, Style Housing: M12x1, Installation: non-flush, Range: 1...4 mm, Analog output: Analog, voltage 0...10 V, Output characteristic: falling on approach, Limit frequency –3 dB: 500 Hz, Repeat accuracy: ±10 µm, Non-linearity max.: ±90 µm, Housing material: Brass, nickel-plated, Material sensing surface: PBT, Connection: Connector, M12x1-Male, 3-pin, Operating voltage Ub: 15...30 VDC, Ambient temperature: -10...70 °C, IP rating: IP67, Approval/Conformity: CE, cULus, WEEE - BALLUFF USA
Specifications
| Ambient temperature | -10...70 °C |
|---|---|
| Analog output | Analog, voltage 0...10 V |
| Connection | Connector, M12x1-Male, 3-pin |
| Dimension | Ø 12 x 45 mm |
| Housing material | Brass, nickel-plated |
| Installation | non-flush |
| IP Rating | IP67 |
| Limit frequency –3 dB | 500 Hz |
| Material sensing surface | PBT |
| Non-linearity max. | ±90 µm |
| Operating voltage Ub | 15...30 VDC |
| Output characteristic | falling on approach |
| Range | 1...4 mm |
| Repeat accuracy | ±10 µm |
| Style Housing | M12x1 |
Product details
| Manufacturer | Balluff |
|---|---|
| Manufacturer part number | BAW000Z |
| Product category | Inductive Proximity Sensors |
| Published specifications | 15 attributes listed |
| Related part numbers | 15 other part numbers in this family |
Request a quote for this part
Email orderdesk@kkmsolutions.com or call (825) 454-5367 for pricing and availability.
Frequently Asked Questions
How do I get pricing for BAW000Z?
This part is quoted on request, so no price is listed for it here. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the BAW000Z?
BAW000Z is made by Balluff and is listed in our Inductive Proximity Sensors category. KKM Solutions is an independent distributor, not an authorized Balluff dealer: we source the exact Balluff part number BAW000Z, and the quote confirms condition and lead time before you order.
Is the BAW000Z new and genuine?
Parts we supply are new and genuine unless the quote expressly states otherwise. Where a part is new-old-stock, from excess inventory, refurbished or open-box, the quote says so before you approve it.
What warranty comes with the BAW000Z, and can I return it?
Parts we supply are warranted against manufacturing defects for 1 year from the date of delivery; where the manufacturer's own warranty is longer, the manufacturer's warranty applies. The warranty covers repair, replacement, or credit of the defective part and does not cover normal wear items, misapplication, improper installation, or consequential damages. Contact us within 30 days of delivery before returning anything — all returns need a return authorization from the order desk.
What is the lifecycle status of BAW000Z?
No published lifecycle status is on file for BAW000Z. Balluff lists whether a catalog number is current, superseded or end-of-life on its own product page, and our order desk confirms the status with the manufacturer at quote time, before you commit. Send the part number through the quote form on this page.
What are the key specifications of BAW000Z?
Key specifications include Ambient temperature: -10...70 °C; Analog output: Analog, voltage 0...10 V; Connection: Connector, M12x1-Male, 3-pin; Dimension: Ø 12 x 45 mm. The full specification table on this page lists every published attribute for this part.
What voltage does BAW000Z use?
Per the published specification for BAW000Z: Operating voltage Ub: 15...30 VDC. Confirm against the full specification table on this page, or ask our order desk to verify it with the manufacturer at quote time.
What is the IP rating of BAW000Z?
Per the published specification for BAW000Z: IP Rating: IP67. Confirm against the full specification table on this page, or ask our order desk to verify it with the manufacturer at quote time.
What material is BAW000Z made of?
Per the published specification for BAW000Z: Housing material: Brass, nickel-plated. Confirm against the full specification table on this page, or ask our order desk to verify it with the manufacturer at quote time.
How quickly can BAW000Z ship?
Lead time for BAW000Z is quoted per order and confirmed on your quote, which our order desk sends within 1 business day. For a line-down emergency, call the 24/7 order desk at (825) 454-5367.
Variants & Related Part Numbers
Other Balluff part numbers in this family:
Frequently Searched Balluff Part Numbers
Related Products

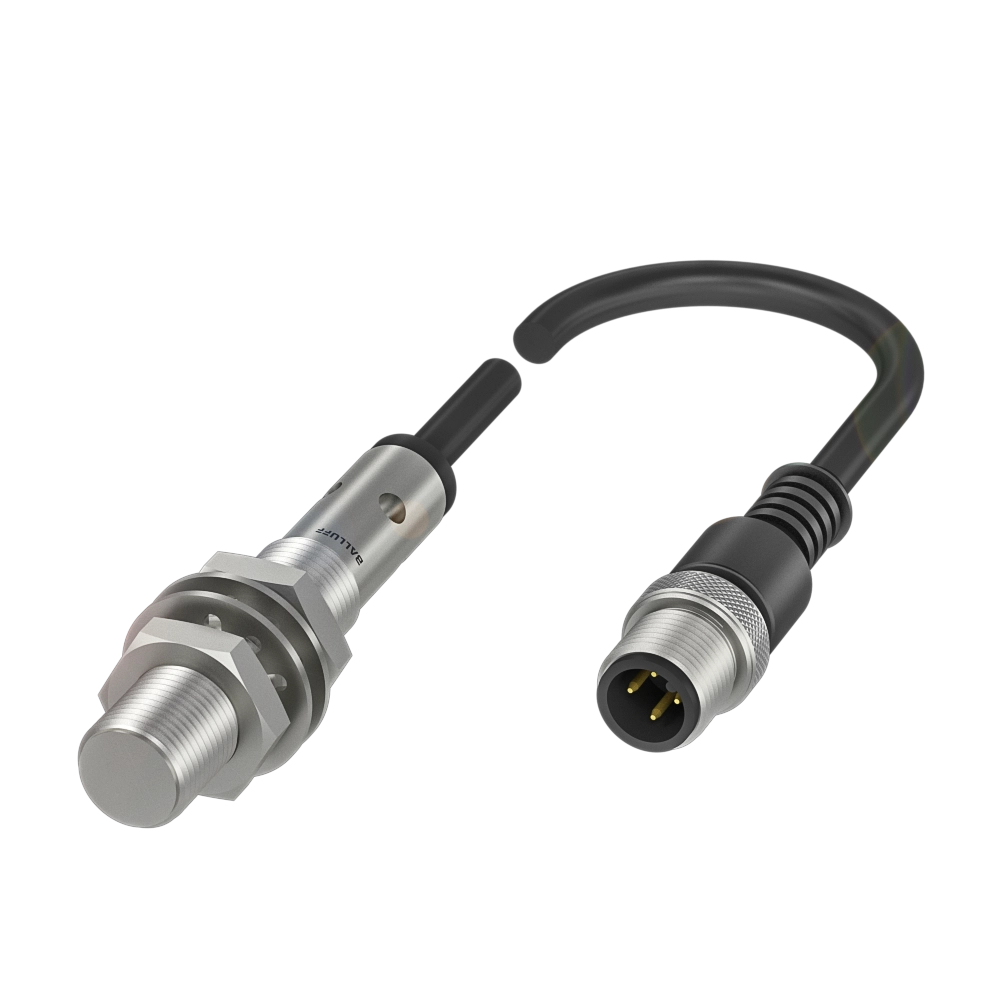

Balluff Balluff BAW M12MG2-IAC20B-BP00,2-GS04
