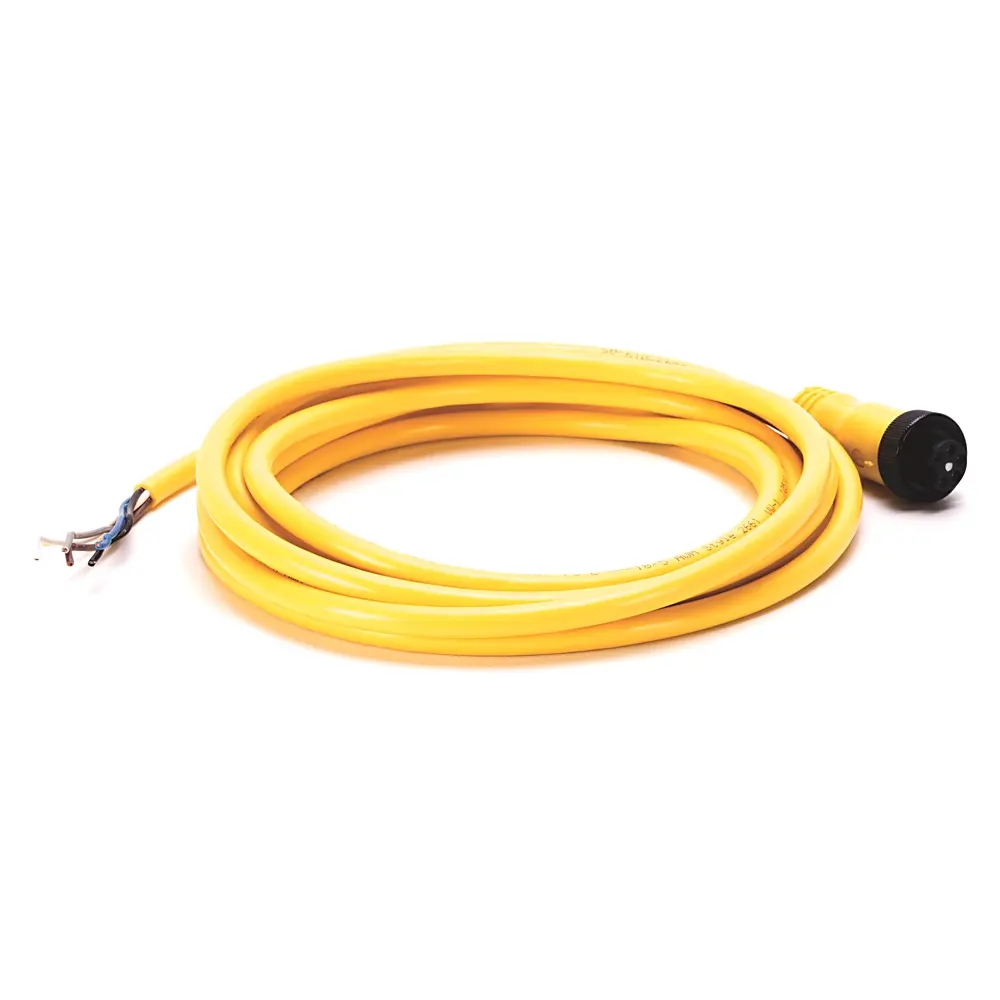

Allen-Bradley 889N-F5GE-20F — 889 Cordsets and Patchcords
Allen-Bradley 889N-F5GE-20F - 889 Cordsets and Patchcords - Length: Connector: 61.8 mm ft; Operating Temperature: -20 °C; Cable length: 6096 mm.
The Allen-Bradley 889N-F5GE-20F is part of the 889 Cordsets and Patchcords range in our industrial catalog. The manufacturer's published data for this part number specifies Length: Connector: 61.8 mm ft and Operating Temperature: -20 °C.
Coupling nut: Epoxy-coated Zinc, housing: molded oil-resistant TPE, contact: Gold over Nickel-plated brass
The specification set recorded for this part number covers Cable length: 6096 mm; Number of poles: 5; Cable rating: UL PLTC AWM Style 2661VW-1 105C @ 300V, CSA AWM A/B 1/II 80C; Cable type: PVC cable, grey, unshielded, 18 AWG; Special characteristic: Standard; Material housing: Plastic; Enclosure type rating: NEMA 4, 6P, 12, 13, 1200 psi washdown; Wire size: 18 AWG; Mounting method: Freely positionable; Assembly rating: 4-pin: 300V @ 7A, 5-pin: 300V @ 5.6A, 6-pin: 300V @ 5.6A; Material of contact surface: Gold; Bend radius: 10 x diam. The complete technical table is shown in the Specifications tab on this page.
| Assembly rating | 4-pin: 300V @ 7A, 5-pin: 300V @ 5.6A, 6-pin: 300V @ 5.6A |
|---|---|
| Bend radius | 10 x diam |
| Cable length | 6096 mm |
| Cable rating | UL PLTC AWM Style 2661VW-1 105C @ 300V, CSA AWM A/B 1/II 80C |
| Cable type | PVC cable, grey, unshielded, 18 AWG |
| Diameter | 2-pin cable: 6.0 mm, 3-pin cable: 6.6 mm, 4-pin cable: 6.6 mm, 5-pin cable: 7.6 mm, 6-pin cable: 8.1 mm |
| Enclosure type rating | NEMA 4, 6P, 12, 13, 1200 psi washdown |
| Estimated Lead Time | 139 days |
| First End Connection | Female, Straight (int threads),Female, Straight (Int Threads) |
| First end connector style | Female, straight (internal threads, except mini receptacles) |
| First End Number of pins | 5-pin |
| Jacket | PVC Cbl, Grey, UnShld,GE |
| Length | Connector: 61.8 mm ft |
| List of degrees of protection | IP67 and IP69K |
| Material | Coupling nut: Epoxy-coated Zinc, housing: molded oil-resistant TPE, contact: Gold over Nickel-plated brass |
| Material housing | Plastic |
| Material of contact surface | Gold |
| Mounting method | Freely positionable |
| Number of poles | 5 |
| Operating Temperature | -20 °C |
| Product Type Feature | Standard- Epoxy coated Zinc for DC micro, AC micro, mini QD with 2-6 pin, Standard-Nickel plated brass for pico, Standard-aluminum with clear sealant for mini QD with 7-12 pin |
| Second end conductors | Same as First End |
| Second End Connection | No Connector,Cable,No Connector,Cable - IEC Stndrd Color Code |
| Second end termination style | No connector |
| Second End Termination Type | Cable - IEC standard color code |
| Special characteristic | Standard |
| Standard Warranty Duration | 1 year |
| Type of plug-in contact, inner side | Female (bus) |
| UPC | 887172758171 |
| Wire size | 18 AWG |
| With shield connection | False |
Request a quote for this part
Email [email protected] or call (825) 454-5367 for pricing and availability.
Frequently Asked Questions
How do I get pricing for 889N-F5GE-20F?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email [email protected], and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 889N-F5GE-20F?
889N-F5GE-20F is a Allen-Bradley part. KKM Solutions sources Allen-Bradley components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
Is 889N-F5GE-20F discontinued, and can I still get one?
KKM Solutions does not publish a manufacturer lifecycle status for 889N-F5GE-20F — check Allen-Bradley's own product page for whether it is current, superseded, or end-of-life. It does not change what we can do: we source current-production, superseded and long-obsolete parts the same way, and where a part is genuinely unavailable we identify a form-fit-function equivalent. Send the part number through the quote form on this page, or use our obsolete part lookup at https://kkmsolutions.com/tools/obsolete-part-lookup/.
What are the key specifications of 889N-F5GE-20F?
Key specifications include Assembly rating: 4-pin: 300V @ 7A, 5-pin: 300V @ 5.6A, 6-pin: 300V @ 5.6A; Bend radius: 10 x diam; Cable length: 6096 mm; Cable rating: UL PLTC AWM Style 2661VW-1 105C @ 300V, CSA AWM A/B 1/II 80C. The full specification table on this page lists every published attribute for this part.
How quickly can 889N-F5GE-20F ship?
In-stock items are dispatched the same business day for orders placed by 11 AM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products

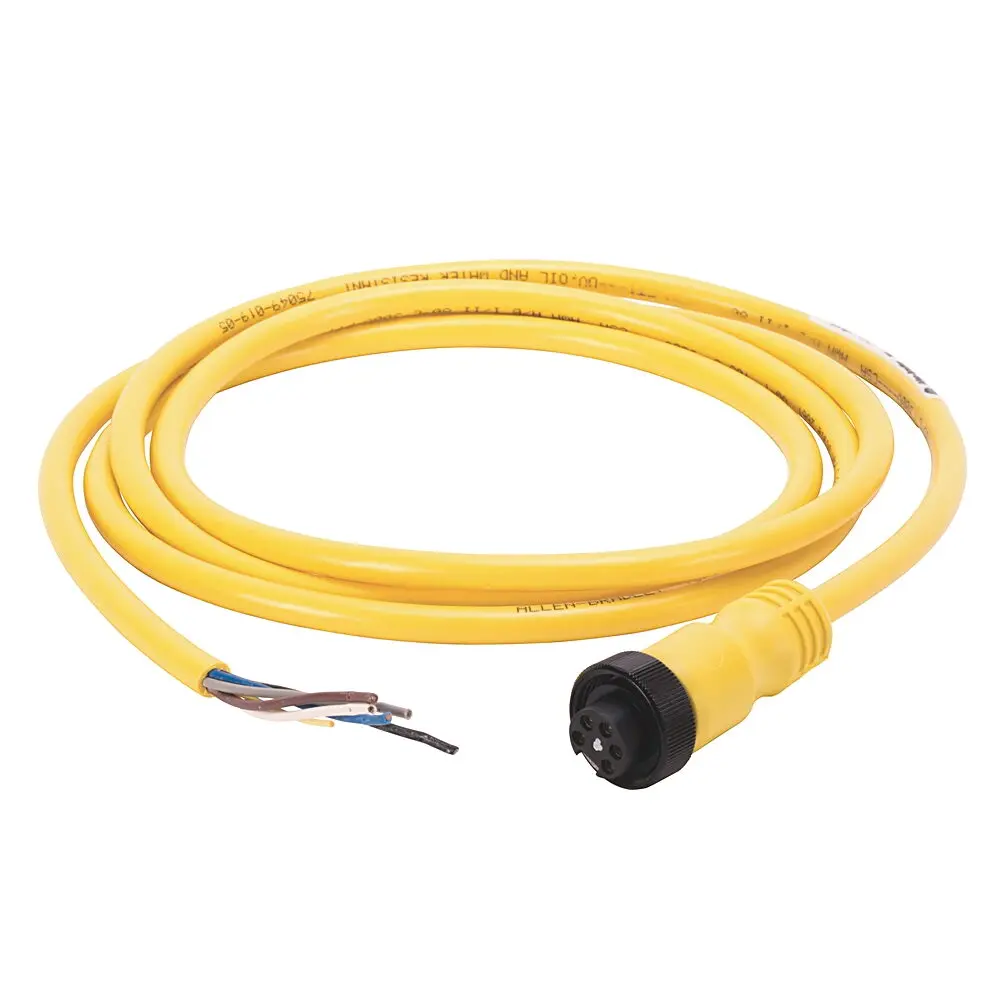

Allen-Bradley Mini Cable,Female, Straight (Int Threads),Female, Straight (int threads),Standard Materials,5…
