Allen-Bradley 889N-F5AFC-15F — 889 Cordsets and Patchcords
Allen-Bradley 889N-F5AFC-15F - 889 Cordsets and Patchcords - Length: Connector: 61.8 mm ft; Operating Temperature: -40 °C; Cable length: 4572 mm.
Allen-Bradley 889N-F5AFC-15F is a 889 Cordsets and Patchcords catalog item from Allen-Bradley. The manufacturer's published data for this part number specifies Length: Connector: 61.8 mm ft and Operating Temperature: -40 °C.
Coupling nut: brass Nickel, 16 AWG, Epoxy-coated Zinc, 18 AWG, housing: TPU yellow, contact: Gold-plated machined brass
The specification set recorded for this part number covers Cable length: 4572 mm; Number of poles: 5; Cable type: PVC cable, yellow, unshielded, 16 AWG; Special characteristic: Standard; Material housing: Plastic; Enclosure type rating: NEMA 1, 3, 4, 6P, 12, 13, 1200 psi washdown; Wire size: 16 AWG; Rated voltage: 600 V; Mounting method: Freely positionable; Assembly rating: 16 AWG: 600V @ 7A; Material of contact surface: Gold; Bend radius: 10 x diam. See the Specifications tab on this page for the full technical table.
| Assembly rating | 16 AWG: 600V @ 7A |
|---|---|
| Bend radius | 10 x diam |
| Cable diameter | 16 AWG 9 core cable: 17 mm, 16 AWG 10 core cable: 17 mm, 16 AWG 12 core cable: 18 mm |
| Cable length | 4572 mm |
| Cable rating | 16 AWG: UL STOOW 90C @ 600V, CSA ST 105C FT2 UL AWM style 2517 or 2661 105C @ 300V, CSA AWM A/B I/II 105C @ 300V, CSA AWM A/B I/II 105C @ 300V FT1 |
| Cable type | PVC cable, yellow, unshielded, 16 AWG |
| Enclosure type rating | NEMA 1, 3, 4, 6P, 12, 13, 1200 psi washdown |
| Estimated Lead Time | 5 days |
| First End Connection | Female, Straight (int threads),Female, Straight (Int Threads) |
| First end connector style | Female, straight (internal threads, except mini receptacles) |
| First End Number of pins | 5-pin |
| Jacket | PVC Cbl, Yellow, UnShld,PVC Cable, Yellow, 16 AWG |
| Length | Connector: 61.8 mm ft |
| List of degrees of protection | IP67 and IP69K |
| Material | Coupling nut: brass Nickel, 16 AWG, Epoxy-coated Zinc, 18 AWG, housing: TPU yellow, contact: Gold-plated machined brass |
| Material housing | Plastic |
| Material of contact surface | Gold |
| Mounting method | Freely positionable |
| Number of poles | 5 |
| Operating Temperature | -40 °C |
| Product Type Feature | Standard- Epoxy coated Zinc for DC micro, AC micro, mini QD with 2-6 pin, Standard-Nickel plated brass for pico, Standard-aluminum with clear sealant for mini QD with 7-12 pin |
| Rated voltage | 600 V |
| Second end conductors | Same as First End |
| Second End Connection | No Connector,Cable,No Connector,Cable - U.S. Color Code |
| Second end termination style | No connector |
| Second End Termination Type | Cable - U.S. industry standard color coded |
| Special characteristic | Standard |
| Standard Warranty Duration | 1 year |
| Type of plug-in contact, inner side | Female (bus) |
| UPC | 612598746712 |
| Wire size | 16 AWG |
| With shield connection | False |
Request a quote for this part
Email [email protected] or call (825) 454-5367 for pricing and availability.
Frequently Asked Questions
How do I get pricing for 889N-F5AFC-15F?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email [email protected], and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 889N-F5AFC-15F?
889N-F5AFC-15F is a Allen-Bradley part. KKM Solutions sources Allen-Bradley components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
Is 889N-F5AFC-15F discontinued, and can I still get one?
KKM Solutions does not publish a manufacturer lifecycle status for 889N-F5AFC-15F — check Allen-Bradley's own product page for whether it is current, superseded, or end-of-life. It does not change what we can do: we source current-production, superseded and long-obsolete parts the same way, and where a part is genuinely unavailable we identify a form-fit-function equivalent. Send the part number through the quote form on this page, or use our obsolete part lookup at https://kkmsolutions.com/tools/obsolete-part-lookup/.
What are the key specifications of 889N-F5AFC-15F?
Key specifications include Assembly rating: 16 AWG: 600V @ 7A; Bend radius: 10 x diam; Cable diameter: 16 AWG 9 core cable: 17 mm, 16 AWG 10 core cable: 17 mm, 16 AWG 12 core cable: 18 mm; Cable length: 4572 mm. The full specification table on this page lists every published attribute for this part.
How quickly can 889N-F5AFC-15F ship?
In-stock items are dispatched the same business day for orders placed by 11 AM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Variants & Related Part Numbers
Other Allen-Bradley part numbers in this family:
- 889N-F5AF-12F — Allen-Bradley 889N-F5AF-12F quick-disconnect cordset with 5-pin M12 female connector and open-wire stripped-and-tinned…
- 889N-F5AF-30F — Allen-Bradley 889 Mini Cable 889N-F5AF-30F
- 889N-F5AF-40F — Allen-Bradley 889 Mini Cable 889N-F5AF-40F
- 889N-F5AF-50F — Mini Cable,Female, Straight (Int Threads),Female, Straight (int threads),Standard Materials,5 Pins,5 Pins,Cable,No Connector,Cable…
- 889N-F5AF-6F — Allen-Bradley 889N-F5AF-6F Bulletin 889N industrial cordset, 6-meter length with M12 5-pin female…
- 889N-F5AFA-12F — Mini Cable,Female, Straight (Int Threads),Female, Straight (int threads),Standard Materials,5 Pins,5 Pins,Cable,No Connector,No…
- 889N-F5AFC-12F — Allen-Bradley 889N-F5AFC-12F
- 889N-F5AFC-20F — Allen-Bradley 889N-F5AFC-20F 20-meter industrial cordset from the Bulletin 889N family, designed for…
- 889N-F5AFC-40F — Mini Cable,Female, Straight (Int Threads),Female, Straight (int threads),Standard Materials,5 Pins,5 Pins,Cable,No Connector,No…
- 889N-F5AFC-6 — Allen-Bradley 889N-F5AFC-6
- 889N-F5AFC-6F — Allen-Bradley 889N-F5AFC-6F industrial cordset, 6-meter length, M12 5-pin A-coded female connectors on…
- 889N-F5AFNM-1 — Mini Cable,Female, Straight (Int Threads),Female, Straight (int threads),Standard Materials,5 Pins,5 Pins,Mini /…
- 889N-F5AFNM-5 — Allen-Bradley 889 Mini Cable 889N-F5AFNM-5
- 889N-F5AFNM-6M1 — Mini Cable,Female, Straight (Int Threads),Female, Straight (int threads),Standard Materials,5 Pins,5 Pins,Mini /…
- 889N-F5AFNU-6F — Allen-Bradley 889N-F5AFNU-6F quick-disconnect patchcord with 5-pin M12 female connectors on both ends,…
Related Products

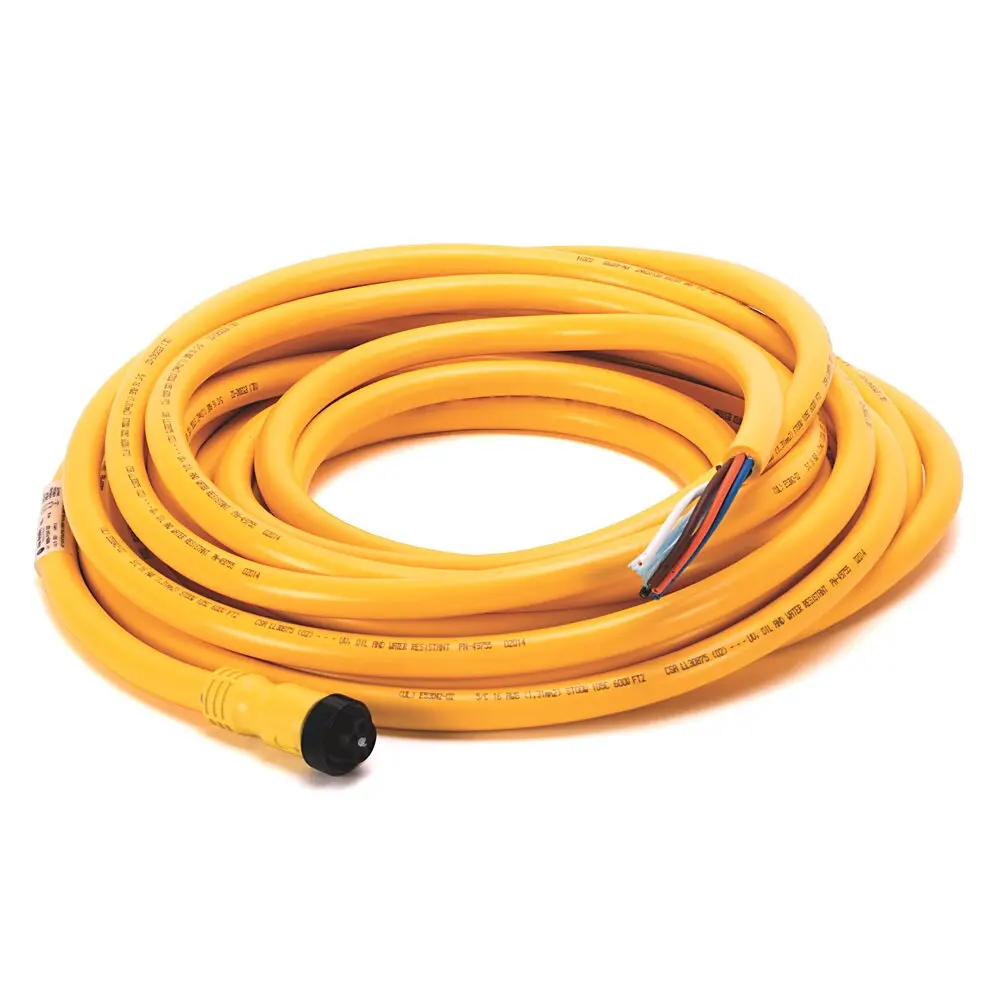

Allen-Bradley Mini Cable,Female, Straight (Int Threads),Female, Straight (int threads),Standard Materials,5…
