Allen-Bradley 889D-P4ACDM-10 — 889 Cordsets and Patchcords
Allen-Bradley 889D-P4ACDM-10 - 889 Cordsets and Patchcords - Operating Temperature: -20 °C; Cable length: 10000 mm; Number of poles: 4.
The Allen-Bradley 889D-P4ACDM-10 is part of the 889 Cordsets and Patchcords range in our industrial catalog. The manufacturer's published data for this part number specifies Operating Temperature: -20 °C and Cable length: 10000 mm.
Coupling nut: Epoxy-coated Zinc, Molded oil-resistant PVC, Contact: Gold over Nickel-plated Brass
Key manufacturer data on file for this item includes Number of poles: 4; Cable type: Oil-resistant yellow PVC jacket, 20 or 22 AWG stranded copper, 300V; Length, approx: Connector: 42 mm (1.2 in) @ Straight female; Material housing: Plastic; Height, approx: Connector: 43 mm (1.7 in) @ right angle female; Enclosure type rating: IP67, NEMA 6P; Wire size: 22 AWG; Rated voltage: 30 V; Mounting method: Freely positionable; Assembly rating: 4A @ 30V; Degree of protection (IP), mounted: IP67; Material of contact surface: Gold. The complete technical table is shown in the Specifications tab on this page.
| Assembly rating | 4A @ 30V |
|---|---|
| Bend radius | 10 x diam |
| Cable diameter | LED: 5 mm (0.2 in), Coiled: 7.1 mm (0.28 in) |
| Cable length | 10000 mm |
| Cable rating | LED models: UL AWM style 2661 VW-1 105°C @ 300V, CSA AWM A/B I/II 80°C @ 300V FT1, UV oil and water resistant |
| Cable type | Oil-resistant yellow PVC jacket, 20 or 22 AWG stranded copper, 300V |
| Degree of protection (IP), mounted | IP67 |
| Diameter, approx | Connector: 15 mm (0.59 in) @ straight female |
| Enclosure type rating | IP67, NEMA 6P |
| Estimated Lead Time | 31 days |
| First End Connection | Female, Right Angle, LED-PNP,Female, Rt Angle, LED-PNP |
| First end connector style | Female, right angle, LED-PNP |
| First End Number of pins | 4-pin |
| Height, approx | Connector: 43 mm (1.7 in) @ right angle female |
| Jacket | PVC Cbl, Yellow, UnShld,PVC Cable, Yellow, 22 AWG |
| Length, approx | Connector: 42 mm (1.2 in) @ Straight female |
| Material | Coupling nut: Epoxy-coated Zinc, Molded oil-resistant PVC, Contact: Gold over Nickel-plated Brass |
| Material housing | Plastic |
| Material of contact surface | Gold |
| Mounting method | Freely positionable |
| Number Of Pins | 4-pin |
| Number of poles | 4 |
| Operating Temperature | -20 °C |
| Product Type Feature | Standard- Epoxy coated Zinc for DC micro,AC micro, mini QD with 2-6 pin, Standard-Nickel plated Brass for pico, Standard-Aluminum with clear sealant for mini QD with 7-12 pin |
| Rated current In | 4 A |
| Rated voltage | 30 V |
| Screw-in thread | M12 |
| Second end conductors | Same as first end |
| Second end termination style | Straight, male (external threads) |
| Second End Termination Type | DC micro (M12) |
| Standard Warranty Duration | 1 year |
| Type of plug-in contact, inner side | Female (bus) |
| UPC | 885630229072 |
| Wire size | 22 AWG |
| With shield connection | False |
Request a quote for this part
Email [email protected] or call (825) 454-5367 for pricing and availability.
Frequently Asked Questions
How do I get pricing for 889D-P4ACDM-10?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email [email protected], and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 889D-P4ACDM-10?
889D-P4ACDM-10 is a Allen-Bradley part. KKM Solutions sources Allen-Bradley components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
Is 889D-P4ACDM-10 discontinued, and can I still get one?
KKM Solutions does not publish a manufacturer lifecycle status for 889D-P4ACDM-10 — check Allen-Bradley's own product page for whether it is current, superseded, or end-of-life. It does not change what we can do: we source current-production, superseded and long-obsolete parts the same way, and where a part is genuinely unavailable we identify a form-fit-function equivalent. Send the part number through the quote form on this page, or use our obsolete part lookup at https://kkmsolutions.com/tools/obsolete-part-lookup/.
What are the key specifications of 889D-P4ACDM-10?
Key specifications include Assembly rating: 4A @ 30V; Bend radius: 10 x diam; Cable diameter: LED: 5 mm (0.2 in), Coiled: 7.1 mm (0.28 in); Cable length: 10000 mm. The full specification table on this page lists every published attribute for this part.
How quickly can 889D-P4ACDM-10 ship?
In-stock items are dispatched the same business day for orders placed by 11 AM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Variants & Related Part Numbers
Other Allen-Bradley part numbers in this family:
- 889D-P4AC-2 — DC Micro Cable,Female, Rt Angle, LED PNP,Female, Right Angle, LED PNP,4 Pins,Standard…
Related Products

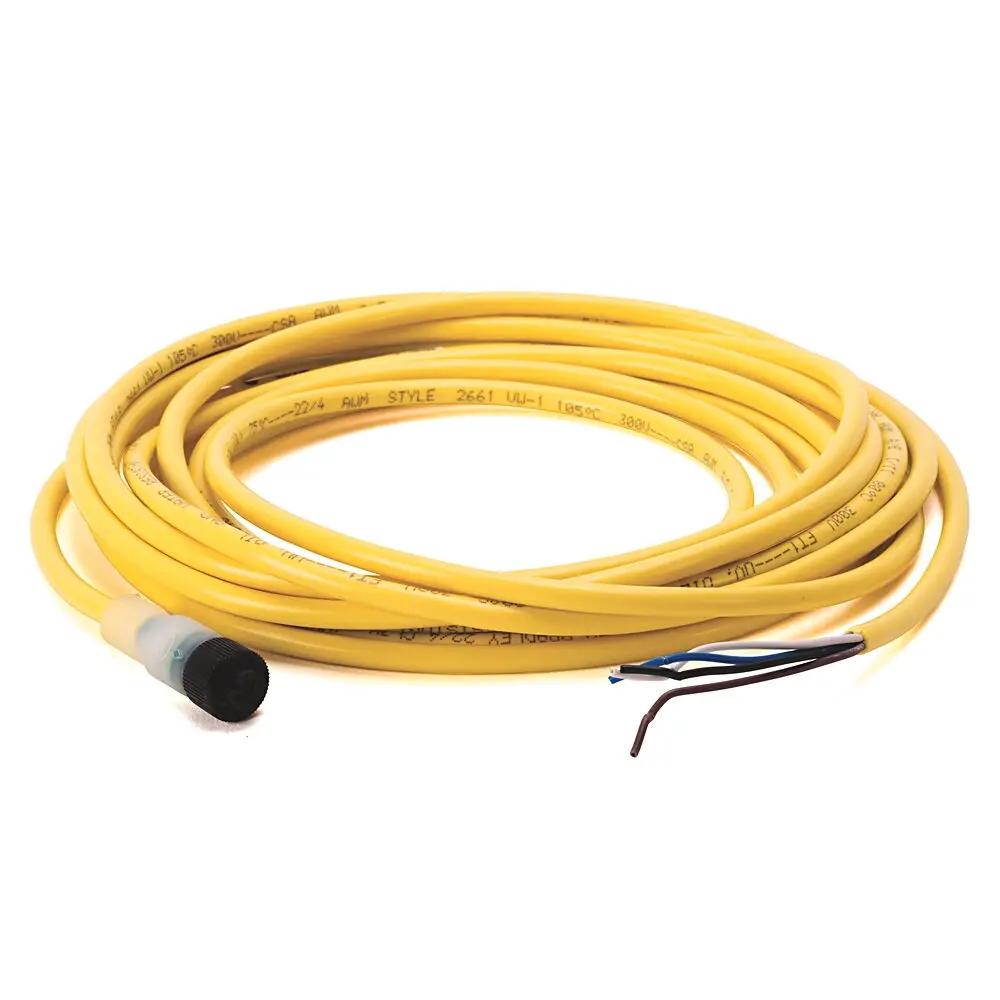

Allen-Bradley DC Micro Cable,Female, Rt Angle, LED PNP,Female, Right Angle,…
