889D-F4ACDE-2 Allen-Bradley Drives & Motors
Allen-Bradley 889D-F4ACDE-2 - Drives & Motors - Operating Temperature: -20 °C; Cable length: 2000 mm; Number of poles: 4.
Overview
Allen-Bradley 889D-F4ACDE-2 — Drives & Motors. Specs: Operating Temperature: -20 °C · Cable length: 2000 mm · Number of poles: 4 · Cable type: Oil-resistant PVC jacket, 18 or 22 AWG conductors, 300V · Length, approx: Connector: 50.8 mm (2.0 in) @ straight male · Material housing: Plastic · Height, approx: Connector: 31.8 mm (1.25 in) @ right angle male · Enclosure type rating: NEMA 6P, 1200 psi (8270 kPa) washdown, IP69K. Quoted per order by KKM Solutions.
Specifications
| Assembly rating | 4A @ 250V |
|---|---|
| Bend radius | 10 x diam |
| Cable length | 2000 mm |
| Cable rating | UL AWM style 2661 VW-1 105°C @ 300V, CSA AWM A/B I/II 80°C @ 300V FT1, UV oil and water resistant |
| Cable type | Oil-resistant PVC jacket, 18 or 22 AWG conductors, 300V |
| Degree of protection (IP), mounted | IP69K |
| Diameter | 2 core cable: 5 mm (0.21 in), 3 core cable: 5 mm (0.21 in), 4 core cable: 5 mm (0.21 in), 5 core cable: 6.5 mm (0.25 in), 4 core cable (18 AWG): 6.5 mm (0.25 in) |
| Diameter, approx | Connector: 14 mm (0.56 in) @ straight male |
| Enclosure type rating | NEMA 6P, 1200 psi (8270 kPa) washdown, IP69K |
| Estimated Lead Time | 5 days |
| First End Connection | Female, Straight (int threads),Female, Straight (Int Threads) |
| First end connector style | Female, straight (internal threads, except mini receptacles) |
| First End Number of pins | 4-pin |
| Height, approx | Connector: 31.8 mm (1.25 in) @ right angle male |
| Jacket | PVC Cbl, Yellow, UnShld,PVC Cable, Yellow, 22 AWG |
| Length, approx | Connector: 50.8 mm (2.0 in) @ straight male |
| Material | Coupling nut: Epoxy-coated Zinc, Molded oil-resistant PUR, Contact: Gold over Nickel-plated Brass |
| Material housing | Plastic |
| Material of contact surface | Gold |
| Mounting method | Freely positionable |
| Number Of Pins | 4-pin |
| Number of poles | 4 |
| Operating Temperature | -20 °C |
| Product Type Feature | Standard- Epoxy coated Zinc for DC micro,AC micro, mini QD with 2-6 pin, Standard-Nickel plated Brass for pico, Standard-Aluminum with clear sealant for mini QD with 7-12 pin |
| Rated current In | 4 A |
| Rated voltage | 250 V |
| Screw-in thread | M12 |
| Second end conductors | Same as First End |
| Second End Connection | Male, Right Angle (ext. thre),DC Micro,Right Angle,Male(Ext. Threads),DC Micro (M12) |
| Second end termination style | Right angle, male (external threads) |
| Second End Termination Type | DC micro (M12) |
| Standard Warranty Duration | 1 year |
| Type of plug-in contact, inner side | Female (bus) |
| UPC | 662468003377 |
| Wire size | 22 AWG |
| With shield connection | False |
Product details
| Manufacturer | Allen-Bradley |
|---|---|
| Manufacturer part number | 889D-F4ACDE-2 |
| KKM catalog reference | Allen Bradley-889D-F4ACDE-2 |
| Product category | Electric Motors |
| Published specifications | 36 attributes listed |
| Related part numbers | 17 other part numbers in this family |
Request a quote for this part
Email [email protected] or call (825) 454-5367 for pricing and availability.
Frequently Asked Questions
How do I get pricing for 889D-F4ACDE-2?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email [email protected], and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 889D-F4ACDE-2?
889D-F4ACDE-2 is a Allen-Bradley part. KKM Solutions sources Allen-Bradley components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What is the lifecycle status of 889D-F4ACDE-2?
We do not hold a published lifecycle status for 889D-F4ACDE-2. Allen-Bradley's publishes whether a catalog number is current, superseded or end-of-life on its own product page, and our order desk confirms the current status with the manufacturer at quote time — you are told if the part is superseded or discontinued before you commit. Either way we source current-production, superseded and long-obsolete parts the same way; where a part is genuinely unavailable we identify a form-fit-function equivalent. Send the part number through the quote form on this page, or use our obsolete part lookup at https://kkmsolutions.com/tools/obsolete-part-lookup/.
What are the key specifications of 889D-F4ACDE-2?
Key specifications include Assembly rating: 4A @ 250V; Bend radius: 10 x diam; Cable length: 2000 mm; Cable rating: UL AWM style 2661 VW-1 105°C @ 300V, CSA AWM A/B I/II 80°C @ 300V FT1, UV oil and water resistant. The full specification table on this page lists every published attribute for this part.
How quickly can 889D-F4ACDE-2 ship?
In-stock items are dispatched the same business day for orders placed by 11 AM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Variants & Related Part Numbers
Other Allen-Bradley part numbers in this family:
Related Products
Allen-Bradley Allen-Bradley 889-C4AC-S50
Allen-Bradley Allen-Bradley 889D-F4ACDE-5

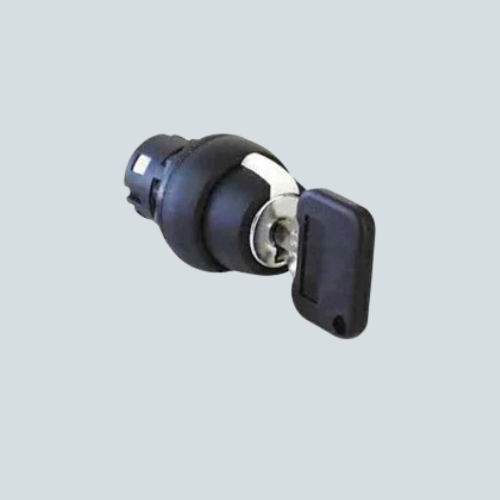

Allen-Bradley Allen-Bradley 800FM-KM23R
Allen-Bradley Allen-Bradley 889D-F4ACDM-1

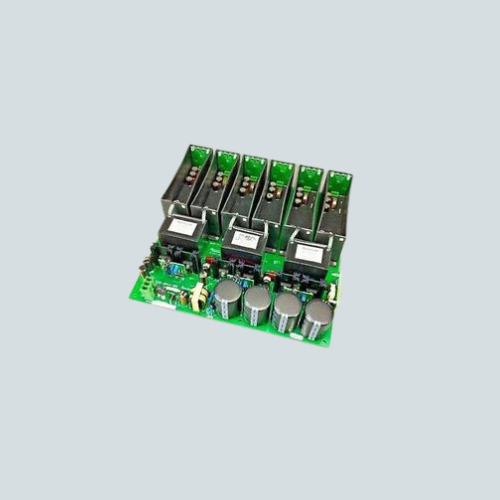

Allen-Bradley Allen-Bradley 80026-044-06
