873P-D30AV-2500-D5 Allen-Bradley 873P 2500mm Ultrasonic Sensor
Allen-Bradley 873P-D30AV-2500-D5 - industrial components - Length: Approx 98.8 mm ft; Ambient temperature: -20 °C; Lifecycle Status: Active.
Overview
This listing covers the Allen-Bradley 873P-D30AV-2500-D5, a part number in the industrial components category. The manufacturer's published data for this part number specifies Length: Approx 98.8 mm ft and Ambient temperature: -20 °C.
P1 Model: PNP or IO-link, P2 Model: dual PNP or IO-link, AI Model: analog current or IO-link, AV Model: analog voltage or IO-link, AIP2 Model: dual PNP and analog current or IO-link, AVP2 Model: dual PNP and analog voltage or IO-link
Key manufacturer data on file for this item includes Lifecycle Status: Active; Degree of protection (IP): IP67; Material housing: Plastic; Connection type: Micro QD; Switching frequency: 1 Hz; Protection type: Short circuit, Reverse polarity, Transient noise, Overload; Accuracy: 1 %; Type of electric connection: Connector M12; Number Of Pins: 5-pin; Response time: Analog output: 450 ms; Supply voltage: 10 V; Current consumption: <30 mA. See the Specifications tab on this page for the full technical table.
Specifications
| Accuracy | 1 % |
|---|---|
| Ambient temperature | -20 °C |
| Beam angle | 10°±2° |
| Blind zone | 0 mm |
| Connection type | Micro QD |
| Construction type housing | Cylinder, screw-thread |
| Degree of protection (IP) | IP67 |
| Diameter sensor | 30 mm |
| Leakage Current | ≤10 µA |
| Length | Approx 98.8 mm |
| Lifecycle Status | Active |
| Material active area of sensor | Glass |
| Material housing | Plastic |
| Max. output current | 100 mA |
| Number Of Pins | 5-pin |
| Output | P1 Model: PNP or IO-link, P2 Model: dual PNP or IO-link, AI Model: analog current or IO-link, AV Model: analog voltage or IO-link, AIP2 Model: dual PNP and analog current or IO-link, AVP2 Model: dual PNP and analog voltage or IO-link |
| Output voltage drop, max | 2.2 V |
| Protection type | Short circuit, Reverse polarity, Transient noise, Overload |
| Rated sensing distance | 200...2500 mm (metallic target 200 x 200 mm) |
| Resolution | SIO: 2 mm, IO-link: 1 mm |
| Response time | Analog output: 450 ms |
| Ripple | 5 % |
| Sensitivity adjustment | Push button |
| Setting procedure | Teach-In |
| Standard for interfaces | Analogue |
| Supply voltage | 10 V |
| Switching frequency | 1 Hz |
| Synchronization possible | true |
| Teachable sensing range | 200 mm |
| Temperature Compensation | true |
| Temperature drift | ±5% |
| Time delay | Before availability digital output: 600 ms, Before availability analog output: 600 ms |
| Transducer frequency | 150 khz |
| Type of analogy output | 0 V ... 10 V |
| Type of electric connection | Connector M12 |
| Type of switch function | Progmable/configurable |
| Type of switching output | PNP |
| Voltage type | DC |
Product details
| Manufacturer | Allen-Bradley |
|---|---|
| Manufacturer part number | 873P-D30AV-2500-D5 |
| Product category | Ultrasonic Sensors |
| Manufacturer lifecycle status | Active |
| Published specifications | 38 attributes listed |
| Related part numbers | 3 other part numbers in this family |
Request a quote for this part
Email [email protected] or call (825) 454-5367 for pricing and availability.
Frequently Asked Questions
How do I get pricing for 873P-D30AV-2500-D5?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email [email protected], and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 873P-D30AV-2500-D5?
873P-D30AV-2500-D5 is a Allen-Bradley part. KKM Solutions sources Allen-Bradley components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What is the lifecycle status of 873P-D30AV-2500-D5?
Manufacturer lifecycle status on file for 873P-D30AV-2500-D5: "Active" — not recorded as discontinued. That is the value published in the product data we hold; confirm against Allen-Bradley's own product page before a long-lead order, as feed data can lag an announcement. It does not change what we can do: KKM Solutions sources current-production, superseded and long-obsolete parts the same way. Send 873P-D30AV-2500-D5 through the quote form on this page for pricing and availability.
What are the key specifications of 873P-D30AV-2500-D5?
Key specifications include Accuracy: 1 %; Ambient temperature: -20 °C; Beam angle: 10°±2°; Blind zone: 0 mm. The full specification table on this page lists every published attribute for this part.
How quickly can 873P-D30AV-2500-D5 ship?
In-stock items are dispatched the same business day for orders placed by 11 AM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Variants & Related Part Numbers
Other Allen-Bradley part numbers in this family:
Related Products

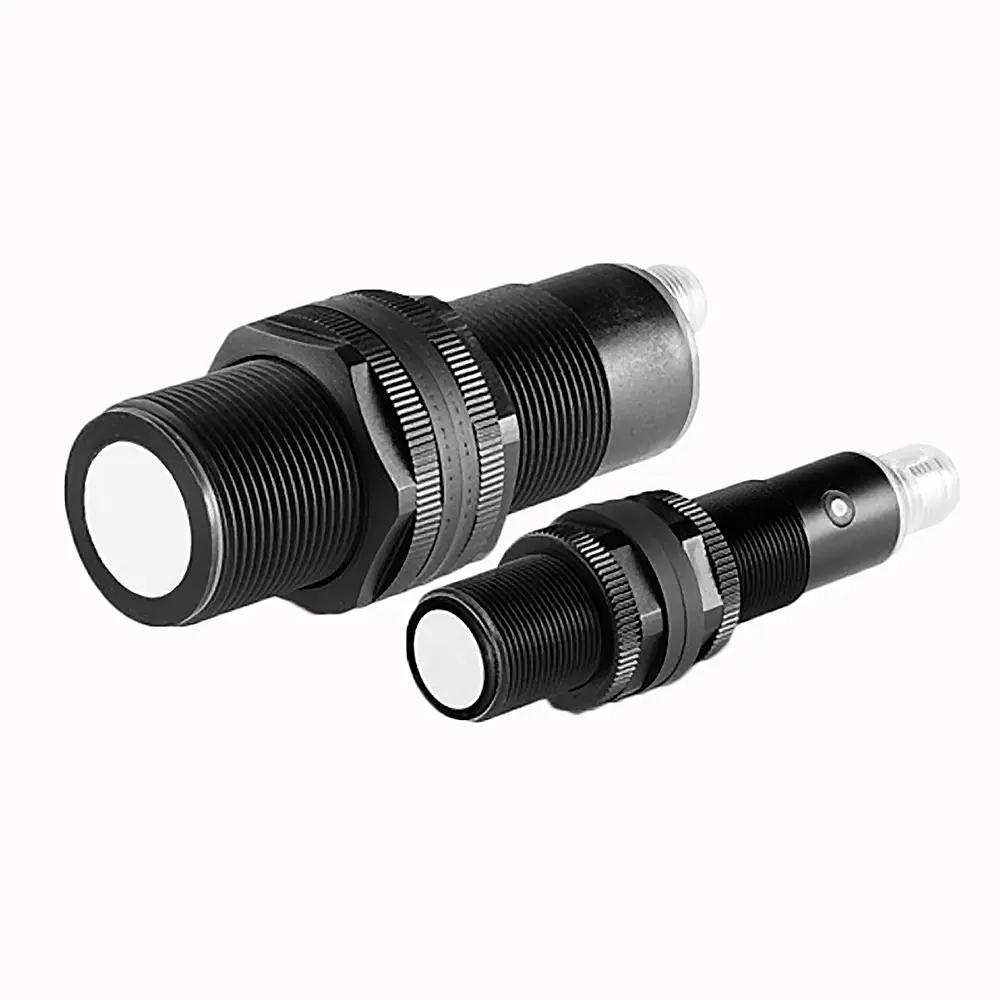

Allen-Bradley Allen-Bradley 873P 2500mm Ultrasonic Sensor 873P-D30AV-2500-D4
Allen-Bradley Allen-Bradley 873P 6000mm UltrasonicSensor 873P-D30AV-6000-D4

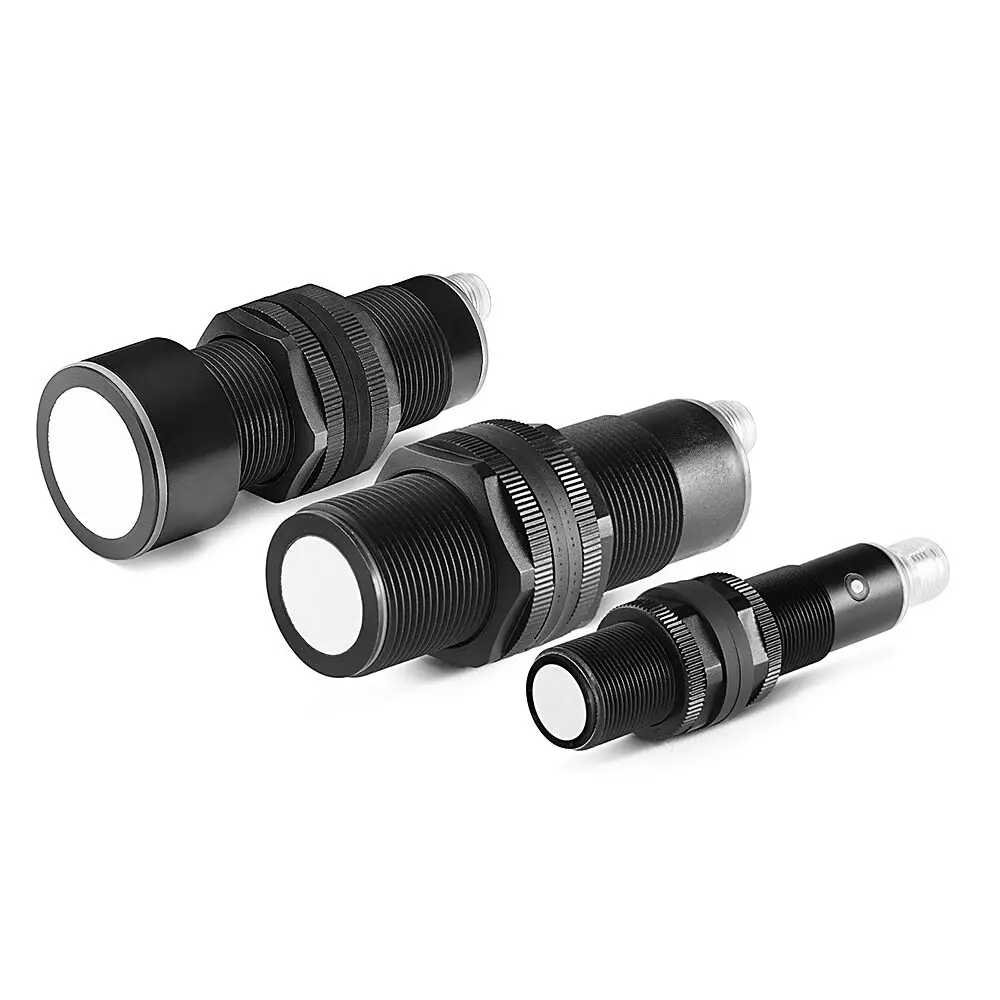

Allen-Bradley Allen-Bradley 6m IO-Link Ultrasonic Sensor 873P-D30AIP2-6000-D5
