Allen-Bradley 855W-G24Y5Y6Y4P1 — Audible-Visual Signaling Devices
Allen-Bradley 855W-G24Y5Y6Y4P1 - Audible-Visual Signaling Devices category.
Allen-Bradley 855W-G24Y5Y6Y4P1 is a Audible-Visual Signaling Devices catalog item from Allen-Bradley.
Specification data for this part number is available on request from our order desk.
| Acoustic signal device type | Piezo sounder |
|---|---|
| Acoustic signal type | Pulse tone/continuous tone |
| Current consumption | Piezo sounder: 62mA @ 24V AC/DC |
| Current consumption, max | Steady or flashing LED per channel: 43mA @ 24V AC/DC |
| Decibel rating | Piezo sounder: 90 dBa (potentiom adjustable down to 70 dBa), all dBa ratings are determined at a distance of 1 m (3.3 ft) from the sound module |
| Degree of protection (IP) | IP65 |
| Degree of protection (NEMA) | 4X |
| Design life rating | Steady or flashing LED: 30000...50000 hr |
| Estimated Lead Time | 36 days |
| Function acoustic | True |
| Function continuous light | True |
| Housing Color | Grey |
| Leakage current impact | All light and sound modules can absorb up to 3 mA of leakage current from solid-state outputs without module activation |
| Level-1 lens color | Amber |
| Level-2 lens color | Blue |
| Level-3 lens color | Red |
| Level-4 lens color | No module |
| Level-4 module type | No module |
| Level-5 lens color | No module |
| Level-5 module type | No module |
| List of degrees of protection (NEMA) | 4, 4X, 13 |
| Loudness | 90 dBb |
| Material | Lenses and base: Polycarbonate (94V-0), Cover: ABS, Rubber seals and gaskets: NBR 70 |
| Mounting Type | Wall mount |
| Network option | No network option |
| Operating Temperature | -25 °C |
| Operating voltage | 24V AC/DC (±10%) |
| Optical signal type | Continuous light |
| Rated operating voltage Ue | 24 V |
| Sound option | 90 dB piezo sounder, selectable continuous or pulsing 90 dBa max with volume adjust of -20 dB |
| Standard Warranty Duration | 1 year |
| Storage Temperature | -25 °C |
| Type of lamp | LED |
| UPC | 885630209876 |
| Voltage type for actuating | AC/DC |
Frequently Asked Questions
How much does 855W-G24Y5Y6Y4P1 cost?
The estimated price shown on this page (CA$273.27 CAD) is a reference figure only and can change. Send the quote form on this page with your quantity, or email [email protected], for current pricing and stock availability.
Who manufactures the 855W-G24Y5Y6Y4P1?
855W-G24Y5Y6Y4P1 is a Allen-Bradley part. KKM Solutions sources Allen-Bradley components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of 855W-G24Y5Y6Y4P1?
Key specifications include Acoustic signal device type: Piezo sounder; Acoustic signal type: Pulse tone/continuous tone; Current consumption: Piezo sounder: 62mA @ 24V AC/DC; Current consumption, max: Steady or flashing LED per channel: 43mA @ 24V AC/DC. The full specification table on this page lists every published attribute for this part.
How quickly can 855W-G24Y5Y6Y4P1 ship?
In-stock items are dispatched the same business day for orders placed by 11 AM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products
Allen-Bradley Allen-Bradley 855R-ABVA Vertical Metal Bracket For Audible Mounting Base.
Federal Signal Federal Signal SLM700GY StreamLine® SLM700GY Modular Multi-Functional Electronic Sounder,…

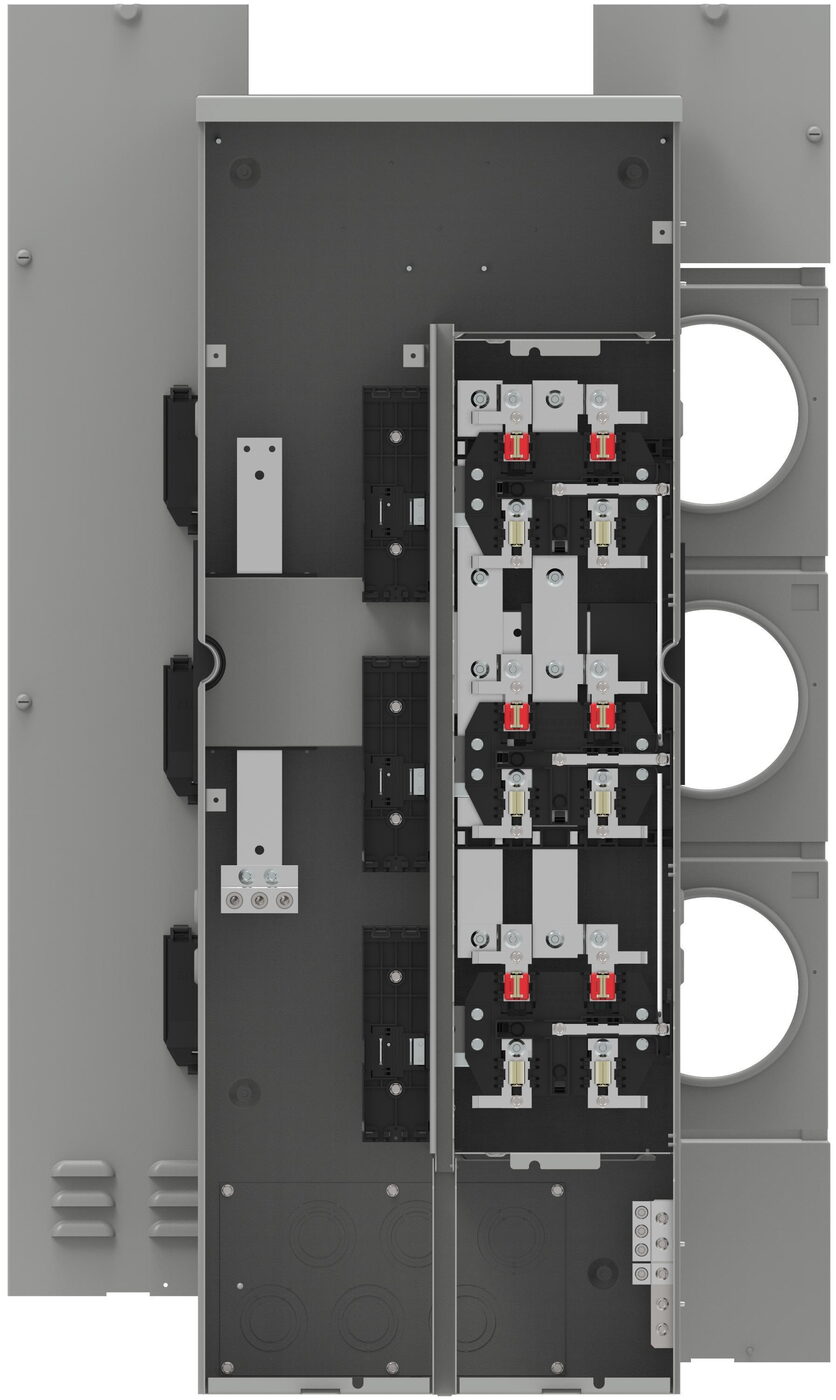

Siemens Siemens WMM31225RB Power ModTM WMM31225RB 6-Cutout 3-Wire Insulated Meter…

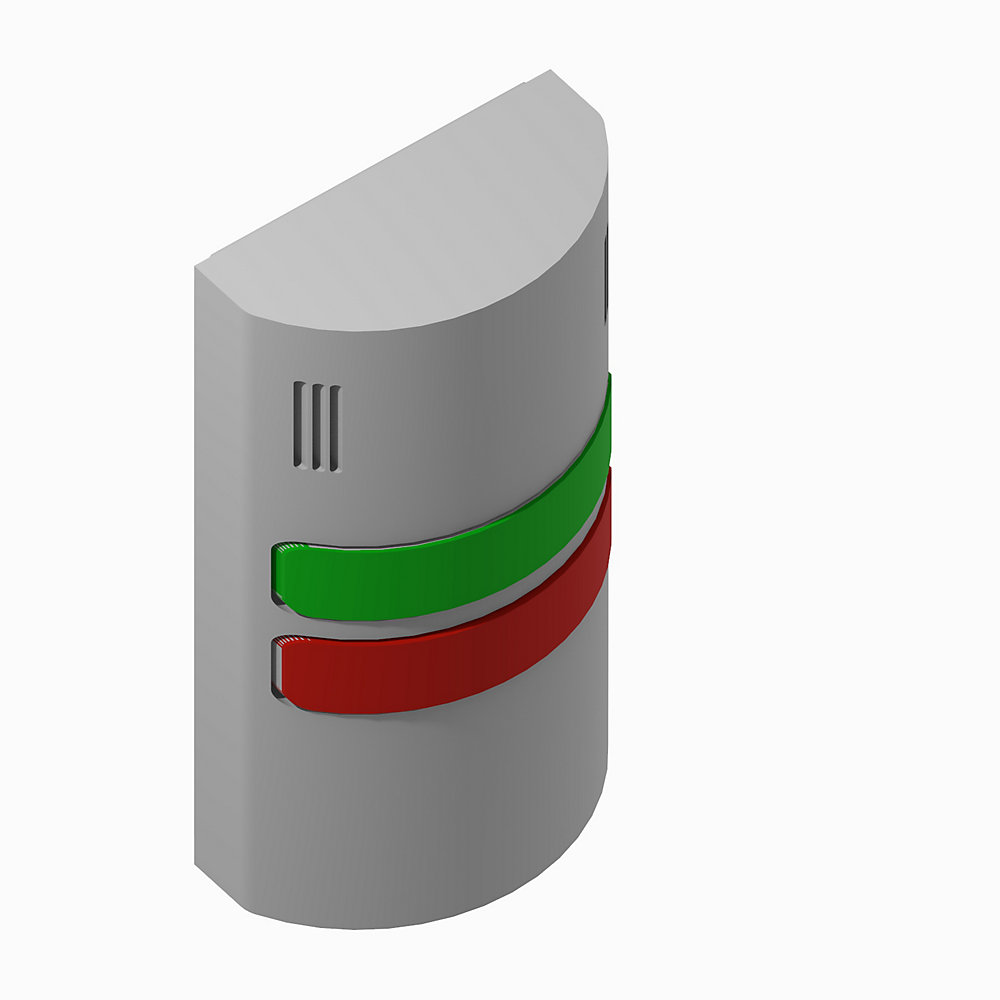

Allen-Bradley Allen-Bradley 855W-G24Y4Y3P1 Wall Mount Signal Light,24V AC/DC,Gray,Steady LED,Red,Steady LED,Green,No…
