837-A6X506X221 Allen-Bradley Electro-Mech Temp Cntrl Sw
Allen-Bradley 837-A6X506X221 - industrial components - Operating Temperature: -22 °F; Storage Temperature: -22 °F; Lifecycle Status: Active.
Overview
In our catalog, the 837-A6X506X221 from Allen-Bradley is listed under the industrial components category. The manufacturer's published data for this part number specifies Operating Temperature: -22 °F and Storage Temperature: -22 °F.
HP rated block SPST NO, SPST - 0.5HP @ 115V AC/1HP @ 230V AC/control circuit rating: AC-125 VA, 24...110V/AC-345 VA, 110...600V/DC 57.5 VA, 110...250V, note: minimum specified differential value approximately doubles
Key manufacturer data on file for this item includes Lifecycle Status: Active; Depth, approx: 2.66 in; Height, approx: 4.31 in; Weight, approx: 2.5 lb; Width, approx: 1.92 in; Enclosure type rating: Open style device (without enclosure); Explosion-proof: false; Adjustable differential, max: 3 °F; Adjustable differential, mid: 7 °F; Adjustable differential, min: 13 °F; Device style: Style A, remote bulb and capillary; Pilot light modification: No pilot light. The complete technical table is shown in the Specifications tab on this page.
Specifications
| Adjustable differential, max | 3 °F |
|---|---|
| Adjustable differential, mid | 7 °F |
| Adjustable differential, min | 13 °F |
| Bulb and capillary type | Copper bulb and capillary |
| Bulb length | 3.75 in |
| Capillary bending radius | Copper: 0.5 in |
| Capillary length | 6 ft |
| Contact block modification | HP rated block SPST NO, SPST - 0.5HP @ 115V AC/1HP @ 230V AC/control circuit rating: AC-125 VA, 24...110V/AC-345 VA, 110...600V/DC 57.5 VA, 110...250V, note: minimum specified differential value approximately doubles |
| Customization | Standard trip/reset settings (the maximum operating range and minimum differential will be factory set for the temperature control switch.) |
| Depth, approx | 2.66 in |
| Device style | Style A, remote bulb and capillary |
| Enclosure type rating | Open style device (without enclosure) |
| Explosion-proof | false |
| Height, approx | 4.31 in |
| Lifecycle Status | Active |
| Operating Temperature | -22 °F |
| Pilot light modification | No pilot light |
| Storage Temperature | -22 °F |
| Temperature, max | 340 °F |
| Type of sensor | Capillary tube |
| Weight, approx | 2.5 lb |
| Width, approx | 1.92 in |
Product details
| Manufacturer | Allen-Bradley |
|---|---|
| Manufacturer part number | 837-A6X506X221 |
| Manufacturer lifecycle status | Active |
| Published specifications | 22 attributes listed |
| Related part numbers | 1 other part number in this family |
Request a quote for this part
Email [email protected] or call (825) 454-5367 for pricing and availability.
Frequently Asked Questions
How do I get pricing for 837-A6X506X221?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email [email protected], and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 837-A6X506X221?
837-A6X506X221 is a Allen-Bradley part. KKM Solutions sources Allen-Bradley components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What is the lifecycle status of 837-A6X506X221?
Manufacturer lifecycle status on file for 837-A6X506X221: "Active" — not recorded as discontinued. That is the value published in the product data we hold; confirm against Allen-Bradley's own product page before a long-lead order, as feed data can lag an announcement. It does not change what we can do: KKM Solutions sources current-production, superseded and long-obsolete parts the same way. Send 837-A6X506X221 through the quote form on this page for pricing and availability.
What are the key specifications of 837-A6X506X221?
Key specifications include Adjustable differential, max: 3 °F; Adjustable differential, mid: 7 °F; Adjustable differential, min: 13 °F; Bulb and capillary type: Copper bulb and capillary. The full specification table on this page lists every published attribute for this part.
How quickly can 837-A6X506X221 ship?
In-stock items are dispatched the same business day for orders placed by 11 AM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Variants & Related Part Numbers
Other Allen-Bradley part numbers in this family:
Related Products
Allen-Bradley Allen-Bradley Electro-Mech Temp Cntrl Sw 837-A6SX503

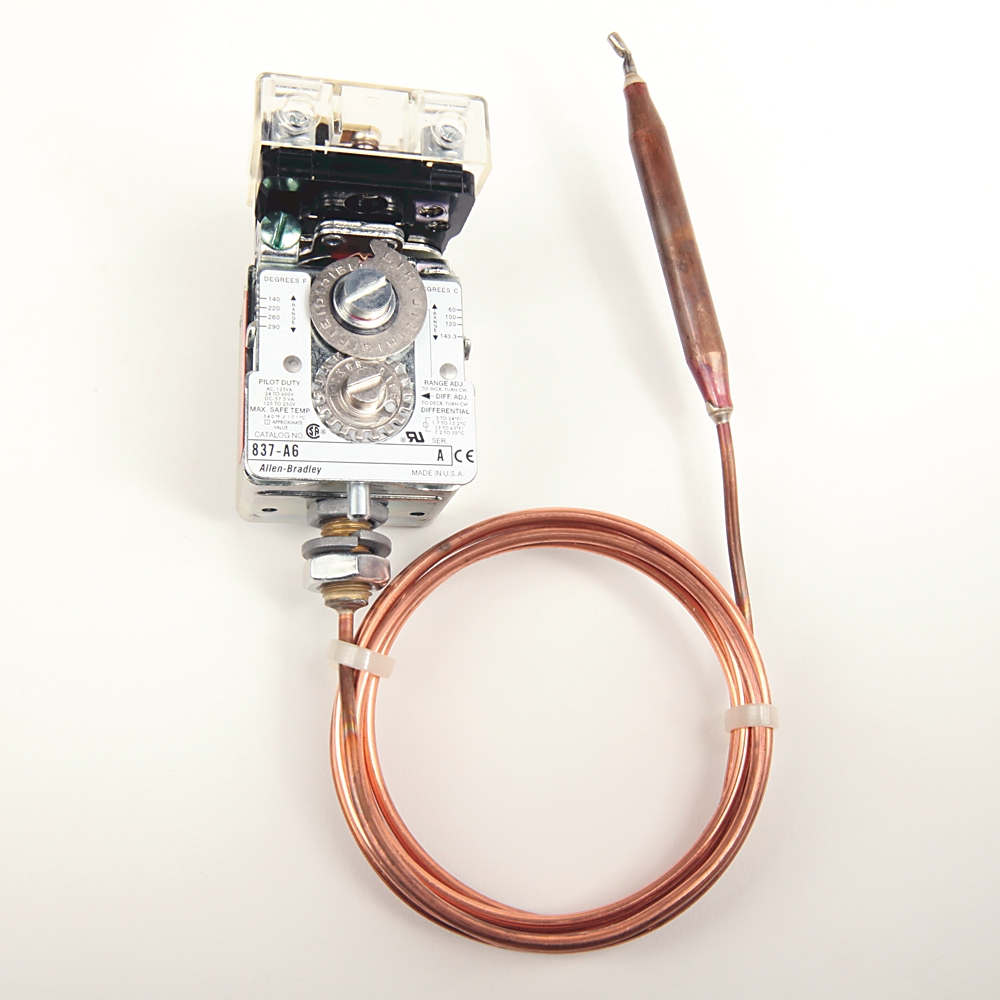

Allen-Bradley Allen-Bradley Switch,Temperature 600V AC Max 5 A Max 837-A6X509
