Allen-Bradley 836-C2 — Pushbuttons & Pilot Devices
Allen-Bradley 836-C2 - Pushbuttons & Pilot Devices - Width: 63.5 mm mm; Height: 160 mm mm; Operating Temperature: -22 °F.

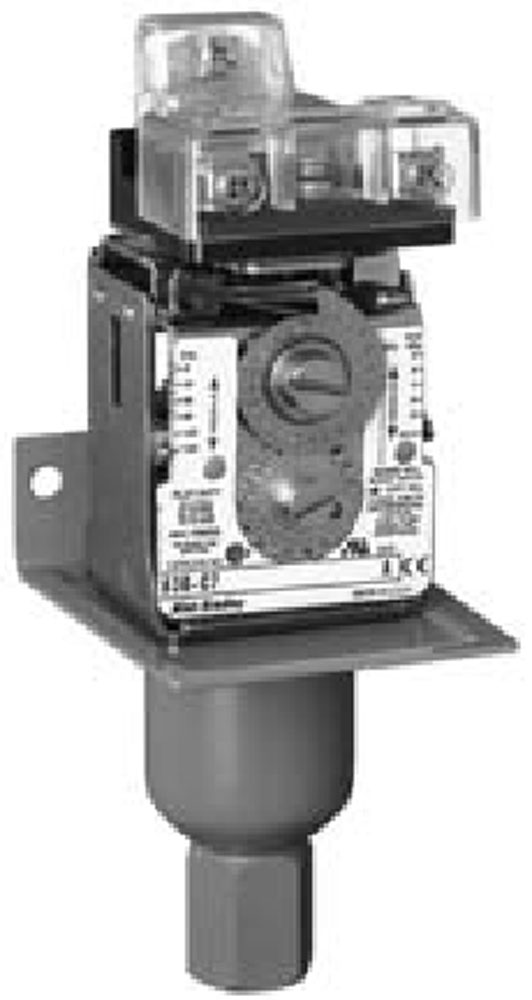

This listing covers the Allen-Bradley 836-C2, a part number in the Pushbuttons & Pilot Devices category. The manufacturer's published data for this part number specifies Width: 63.5 mm mm and Height: 160 mm mm.
1/4 in N.P.T.F. internal pipe thread or 3/8 in N.P.S.F. internal pipe connection (836-C1 and 836-C1A only)
Key manufacturer data on file for this item includes Operating Temperature: -22 °F; Storage Temperature: -22 °F; Housing material: Other; Electrical connection: Cable screw gland; Depth: 75.7 mm; Shipping weight, approx: 1.3 lb; Style: Style C product; Actuator type: External bellows: Copper Alloy, Stainless Steel Type 316; Supply voltage: 600 V; UPC: 781180143526; Ingress rating: Open style device (without enclosure); Suitable for air: True. The complete technical table is shown in the Specifications tab on this page.
| Actuator type | External bellows: Copper Alloy, Stainless Steel Type 316 |
|---|---|
| Adjustable differential | 0.4 psi |
| Adjustable operating range | 30 in Hg Vacuum…10 psi |
| Contact block modification | 2 circuit-SPST NC (non-inductive: 5A @ 240V/3A @ 600V/control circuit rating: AC-125 VA, 24...600V/DC-57.5 VA, 115...230V note: minimum specified differential value approximately doubles) |
| Custom Trip or Reset Setting | Standard Trip/Reset Setting |
| Customization | Standard trip/reset settings |
| Depth | 75.7 mm |
| Electrical connection | Cable screw gland |
| Estimated Lead Time | 93 days |
| Explosion-proof | False |
| Height | 160 mm mm |
| Housing material | Other |
| Ingress rating | Open style device (without enclosure) |
| Line Pressure, Max | 65 psi |
| Occasional surge pressures, max | 75 psi |
| Operating Temperature | -22 °F |
| Pilot Light Modifications | No Pilot Light |
| Pressure connection | 1/4 in N.P.T.F. internal pipe thread or 3/8 in N.P.S.F. internal pipe connection (836-C1 and 836-C1A only) |
| Shipping weight, approx | 1.3 lb |
| Standard Warranty Duration | 1 year |
| Storage Temperature | -22 °F |
| Style | Style C product |
| Suitable for air | True |
| Suitable for oil | True |
| Suitable for water | True |
| Supply voltage | 600 V |
| UPC | 781180143526 |
| Width | 63.5 mm mm |
Request a quote for this part
Email [email protected] or call (825) 454-5367 for pricing and availability.
Frequently Asked Questions
How much does 836-C2 cost?
836-C2 is listed at CA$51.75 (CAD) and can be ordered directly from this page with Add to Cart. That figure is a reference price and can change: your card is authorized at checkout and charged only once our order desk confirms the part and final price, and we email you first if anything has moved. Larger quantities or custom terms — email [email protected] for a volume quote.
Who manufactures the 836-C2?
836-C2 is a Allen-Bradley part. KKM Solutions sources Allen-Bradley components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
Is 836-C2 discontinued, and can I still get one?
KKM Solutions does not publish a manufacturer lifecycle status for 836-C2 — check Allen-Bradley's own product page for whether it is current, superseded, or end-of-life. It does not change what we can do: we source current-production, superseded and long-obsolete parts the same way, and where a part is genuinely unavailable we identify a form-fit-function equivalent. Send the part number through the quote form on this page, or use our obsolete part lookup at https://kkmsolutions.com/tools/obsolete-part-lookup/.
What are the key specifications of 836-C2?
Key specifications include Actuator type: External bellows: Copper Alloy, Stainless Steel Type 316; Adjustable differential: 0.4 psi; Adjustable operating range: 30 in Hg Vacuum…10 psi; Contact block modification: 2 circuit-SPST NC (non-inductive: 5A @ 240V/3A @ 600V/control circuit rating: AC-125 VA, 24...600V/DC-57.5 VA, 115...230V note: minimum specified differential value approximately doubles). The full specification table on this page lists every published attribute for this part.
How quickly can 836-C2 ship?
In-stock items are dispatched the same business day for orders placed by 11 AM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
