Allen-Bradley 800T-T4T8AAXX — 800T 1-2-3-4 Way Toggle Switch
Allen-Bradley 800T-T4T8AAXX - 800T 1-2-3-4 Way Toggle Switch - Operating Temperature: -25 °C; Storage Temperature: -40 °C; Type: 30mm Toggle Switch.
The Allen-Bradley 800T-T4T8AAXX is part of the 800T 1-2-3-4 Way Toggle Switch range in our industrial catalog. The manufacturer's published data for this part number specifies Operating Temperature: -25 °C and Storage Temperature: -40 °C.
Published specifications for this part include Type: 30mm Toggle Switch; Shock: 25 G (contact fragility)/100 G (no damage); Vibration: Custom configuration - consult factory; Humidity: 50 to 95%; Operator Type: Toggle switch; Contact block electrical design life (cycles, at max. load): Custom configuration - consult factory; Contact block operational voltage, max: Custom configuration - consult factory; Contact block termination tightening torque: Custom configuration - consult factory; Contact block termination wire range: Custom configuration - consult factory; Contact block thermal current rating: Custom configuration - consult factory; Contact block utilization category (AC): Custom configuration - consult factory; Contact block utilization category (DC): Custom configuration - consult factory. The complete technical table is shown in the Specifications tab on this page.
| Centre mounting, hole diameter | 30.5 mm |
|---|---|
| Contact block electrical design life (cycles, at max. load) | Custom configuration - consult factory |
| Contact block operational voltage, max | Custom configuration - consult factory |
| Contact block termination tightening torque | Custom configuration - consult factory |
| Contact block termination wire range | Custom configuration - consult factory |
| Contact block thermal current rating | Custom configuration - consult factory |
| Contact block utilization category (AC) | Custom configuration - consult factory |
| Contact block utilization category (DC) | Custom configuration - consult factory |
| Enclosure compatibility (NEMA type) | 1, 4, 12, 13 |
| Estimated Lead Time | 5 days |
| Hazardous location rating | Custom configuration - consult factory |
| Humidity | 50 to 95% |
| Number of switch positions | 4 |
| Operating Temperature | -25 °C |
| Operator cap color | Black |
| Operator cap type | Lever arm with conical cap |
| Operator cap/button material | Metal/plastic |
| Operator construction/material | Metal |
| Operator function | Up-spring return, left-spring return, right-spring return, down-spring return |
| Operator mechanical design life (cycles, min.) | 200000 |
| Operator Type | Toggle switch |
| Position 1 contact block | 1 NO, 1 NC, standard contact block (800T-XA) |
| Position 2 contact block | 1 NO, 1 NC, standard contact block (800T-XA) |
| Position 3 contact block | No block this position |
| Position 4 contact block | No block this position |
| Shock | 25 G (contact fragility)/100 G (no damage) |
| Standard Warranty Duration | 1 year |
| Storage Temperature | -40 °C |
| Suitable for illumination | False |
| Termination style | Screw |
| Terminations with finger safe covers | False |
| Type | 30mm Toggle Switch |
| UPC | 662073795124 |
| Vibration | Custom configuration - consult factory |
Request a quote for this part
Email [email protected] or call (825) 454-5367 for pricing and availability.
Frequently Asked Questions
How do I get pricing for 800T-T4T8AAXX?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email [email protected], and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 800T-T4T8AAXX?
800T-T4T8AAXX is a Allen-Bradley part. KKM Solutions sources Allen-Bradley components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
Is 800T-T4T8AAXX discontinued, and can I still get one?
KKM Solutions does not publish a manufacturer lifecycle status for 800T-T4T8AAXX — check Allen-Bradley's own product page for whether it is current, superseded, or end-of-life. It does not change what we can do: we source current-production, superseded and long-obsolete parts the same way, and where a part is genuinely unavailable we identify a form-fit-function equivalent. Send the part number through the quote form on this page, or use our obsolete part lookup at https://kkmsolutions.com/tools/obsolete-part-lookup/.
What are the key specifications of 800T-T4T8AAXX?
Key specifications include Centre mounting, hole diameter: 30.5 mm; Contact block electrical design life (cycles, at max. load): Custom configuration - consult factory; Contact block operational voltage, max: Custom configuration - consult factory; Contact block termination tightening torque: Custom configuration - consult factory. The full specification table on this page lists every published attribute for this part.
How quickly can 800T-T4T8AAXX ship?
In-stock items are dispatched the same business day for orders placed by 11 AM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Variants & Related Part Numbers
Other Allen-Bradley part numbers in this family:
- 800T-T4T1 — Allen-Bradley 30mm Toggle Switch 800T PB 800T-T4T1
- 800T-T4T2AADE — Allen-Bradley 30mm Toggle Switch 800T PB 800T-T4T2AADE
- 800T-T4T2AAXX — Allen-Bradley 30mm Toggle Switch 800T PB 800T-T4T2AAXX
- 800T-T4T2ACXX — Allen-Bradley 30mm Toggle Switch 800T PB 800T-T4T2ACXX
- 800T-T4T3AAAA — Allen-Bradley 30mm Toggle Switch 800T PB 800T-T4T3AAAA
- 800T-T4T3AAXX — Allen-Bradley 30mm Toggle Switch 800T PB 800T-T4T3AAXX
- 800T-T4T4 — Allen-Bradley 30mm Toggle Switch 800T PB 800T-T4T4
- 800T-T4T4AAAA — Allen-Bradley 30mm Toggle Switch 800T PB 800T-T4T4AAAA
- 800T-T4T4AAXX — Allen-Bradley 30mm Toggle Switch 800T PB 800T-T4T4AAXX
- 800T-T4T5 — Allen-Bradley 30mm Toggle Switch 800T PB 800T-T4T5
- 800T-T4T6AAAX — Allen-Bradley 30mm Toggle Switch 800T PB 800T-T4T6AAAX
- 800T-T4T6AAXX — Allen-Bradley 30mm Toggle Switch 800T PB 800T-T4T6AAXX
- 800T-T4T8 — 800T PB,30mm Toggle Switch,Four Way Toggle,Four Way,Up Lt Rt Dn, All Spring…
Related Products
Allen-Bradley 800T PB,30mm Toggle Switch,Four Way Toggle,Four Way,Up Lt Rt…
Allen-Bradley 800T PB,30mm Toggle Switch,Three Way Toggle,Three Way,Up Spr Ret…
Allen-Bradley 800T PB,30mm Toggle Switch,Two Way Toggle,Two Way,Up Maint.: Down…

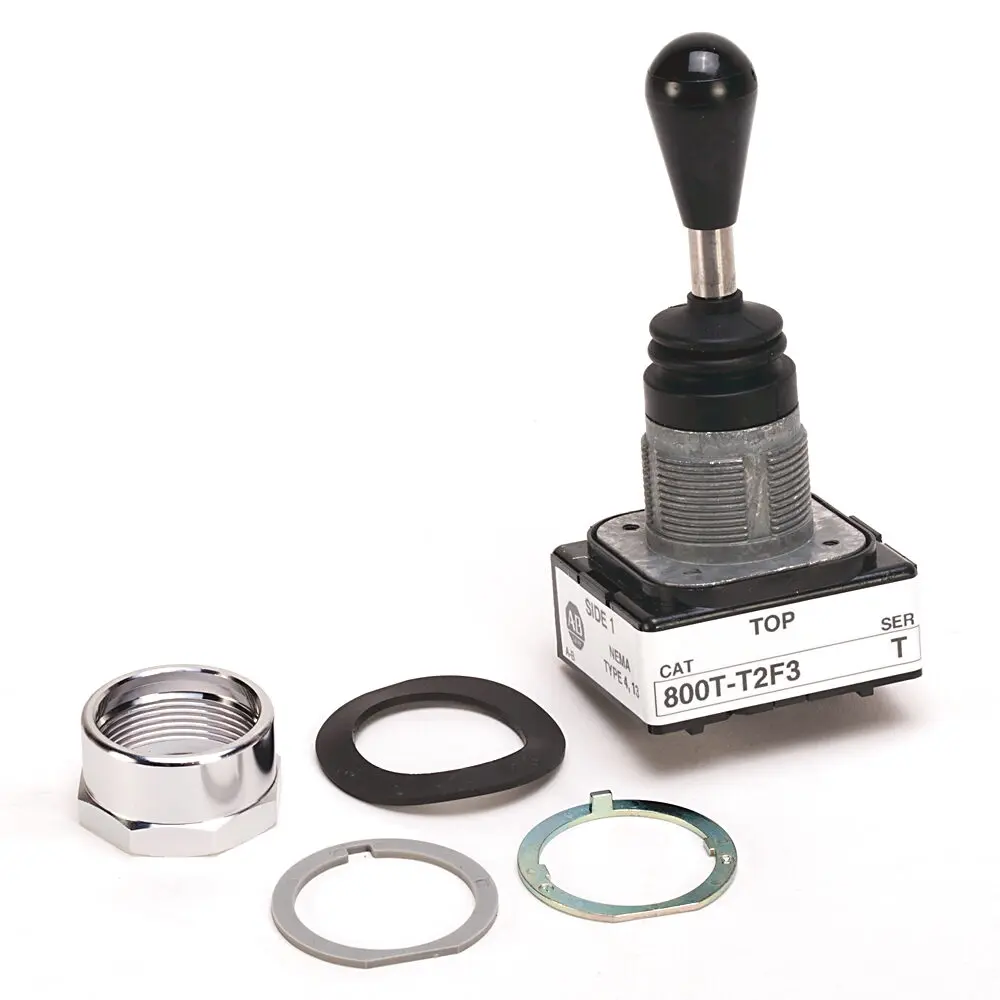

Allen-Bradley 800T PB,30 mm Tgl Sw,Two Way Toggle,Two Way,Left Spr…
