Allen-Bradley 800T-QT24G — Pilot Lights
Allen-Bradley 800T-QT24G - Pilot Lights - Operating Temperature: -25 °C; Storage Temperature: -40 °C; Type: 30mm Pilot Light.
This listing covers the Allen-Bradley 800T-QT24G, a part number in the Pilot Lights category. The manufacturer's published data for this part number specifies Operating Temperature: -25 °C and Storage Temperature: -40 °C.
The specification set recorded for this part number covers Type: 30mm Pilot Light; Number of indicator lights: 1; Style: Push-to-Test Type; Shock: 25 G (contact fragility)/100 G (no damage); Vibration: 10 G maximum; Humidity: 50 %; Type of electric connection: Screw connection; Operator Type: Pilot light, with lA test feature; Contact block configuration: 1-NO 1-NC standard contacts; Contact block electrical design life (cycles, at max. load): 1000000; Contact block operational voltage, max: 600V AC @ 600V DC; Contact block termination tightening torque: 6 - 8 in-lb / 0.7 - 0.9 N-m. See the Specifications tab on this page for the full technical table.
| Contact block configuration | 1-NO 1-NC standard contacts |
|---|---|
| Contact block electrical design life (cycles, at max. load) | 1000000 |
| Contact block operational voltage, max | 600V AC @ 600V DC |
| Contact block termination tightening torque | 6 - 8 in-lb / 0.7 - 0.9 N-m |
| Contact block termination wire range | 14 - 18 AWG (x2) |
| Contact block thermal current rating | 10 A |
| Contact block utilization category (AC) | A600, AC-15 |
| Contact block utilization category (DC) | Q600, DC-13 |
| Enclosure compatibility (NEMA type) | 1, 4, 12, 13 |
| Estimated Lead Time | 5 days |
| Hazardous location rating | False |
| Hole diameter | 30.5 mm |
| Humidity | 50 % |
| Illumination lamp type | Incandescent |
| Illumination module input voltage | 24V AC/DC |
| Illumination module termination tightening torque | 6 - 8 in-lb / 0.7 - 0.9 N-m |
| Illumination module termination wire range | 14 - 18 AWG (x2) |
| Illumination module type | Full voltage |
| Number of indicator lights | 1 |
| Operating Temperature | -25 °C |
| Operator cap color | Green |
| Operator cap type | Fresnal |
| Operator cap/button material | Plastic |
| Operator cap/button shape | Round |
| Operator construction/material | Metal |
| Operator function | Push-to-test |
| Operator mechanical design life (cycles, min.) | 250000 |
| Operator Type | Pilot light, with lA test feature |
| Shock | 25 G (contact fragility)/100 G (no damage) |
| Standard Warranty Duration | 1 year |
| Storage Temperature | -40 °C |
| Style | Push-to-Test Type |
| Suitable for illumination | True |
| Terminations with finger safe covers | False |
| Type | 30mm Pilot Light |
| Type of electric connection | Screw connection |
| UPC | 781180689130 |
| Vibration | 10 G maximum |
Request a quote for this part
Email [email protected] or call (825) 454-5367 for pricing and availability.
Frequently Asked Questions
How do I get pricing for 800T-QT24G?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email [email protected], and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 800T-QT24G?
800T-QT24G is a Allen-Bradley part. KKM Solutions sources Allen-Bradley components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
Is 800T-QT24G discontinued, and can I still get one?
KKM Solutions does not publish a manufacturer lifecycle status for 800T-QT24G — check Allen-Bradley's own product page for whether it is current, superseded, or end-of-life. It does not change what we can do: we source current-production, superseded and long-obsolete parts the same way, and where a part is genuinely unavailable we identify a form-fit-function equivalent. Send the part number through the quote form on this page, or use our obsolete part lookup at https://kkmsolutions.com/tools/obsolete-part-lookup/.
What are the key specifications of 800T-QT24G?
Key specifications include Contact block configuration: 1-NO 1-NC standard contacts; Contact block electrical design life (cycles, at max. load): 1000000; Contact block operational voltage, max: 600V AC @ 600V DC; Contact block termination tightening torque: 6 - 8 in-lb / 0.7 - 0.9 N-m. The full specification table on this page lists every published attribute for this part.
How quickly can 800T-QT24G ship?
In-stock items are dispatched the same business day for orders placed by 11 AM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Variants & Related Part Numbers
Other Allen-Bradley part numbers in this family:
- 800T-Q10 — 800T PB,30mm Pilot Light,120V AC/DC,Incandescent Lamp,No Lens, No Guards on Terminals,Device with…
- 800T-QA24WA2 — Allen-Bradley 800T-QA24WA2 800T PB,30mm Momentary Push Button,Full Voltage,24V AC/DC,Incandescent,Extended Head with Guard,White,No…
- 800T-QB24B — 800T PB,30mm Momentary Push Button,Full Voltage,24V AC/DC,Incandescent,Extended Head without Guard,Blue,No Guards on…
- 800T-QH2R — Allen-Bradley 30mm Pilot Light 800T 800T-QH2R
- 800T-QMJ24G — Allen-Bradley 800T-QMJ24G 800T PB,30mm Momentary Push Button,Full Voltage,24V AC/DC,Incandescent,Jumbo Mushroom Head,Green,No Guards…
- 800T-QST24 — Allen-Bradley 800T-QST24 800T PB,18mm Pilot Light,No Lens,Full Voltage Type,Push to Test Type,Incandescent…
- 800T-QSTH13B — 800T PB,18 mm P L,Blue,Full Voltage Type,Push to Test Type,LED Lamp,130V AC/DC
- 800T-QT10 — 800T PB,30mm Pilot Light, Full V Type PTT W/ Incand Lam,Full Voltage…
- 800T-QT20 — 800T PB,30mm Pilot Light, Full V Type PTT W/ Incand Lam,Full Voltage…
- 800T-QT20G — 800T PB,30mm Pilot Light, Full V Type PTT W/ Incand Lam,Full Voltage…
- 800T-QT24A — 800T PB,30mm Pilot Light, Full V Type PTT W/ Incand Lam,Full Voltage…
- 800T-QT24R — Allen-Bradley 30mm Pilot Light 800T PB 800T-QT24R
- 800T-QT24W — Allen-Bradley 30mm Pilot Light 800T PB 800T-QT24W
- 800T-QT2A — Allen-Bradley 800T-QT2A
- 800T-QT48R — 800T PB,30mm Pilot Light, Full V Type PTT W/ Incand Lam,Full Voltage…
- 800T-QTH2 — Allen-Bradley 800T-QTH2 Switch,30mm,Pilot Light with Test,Full Voltage Type,Push to Test Type,LED Lamp,12…
- 800T-QTH2AAY — Allen-Bradley 30 mm Pilot Light 800T PB 800T-QTH2AAY
- 800T-QTN25 — Allen-Bradley 30mm Pilot Light 800T PB 800T-QTN25
Related Products
Allen-Bradley 800T PB,30mm Pilot Light, Full V Type PTT W/…
Allen-Bradley 800T PB,30mm Pilot Light, Full V Type PTT W/…

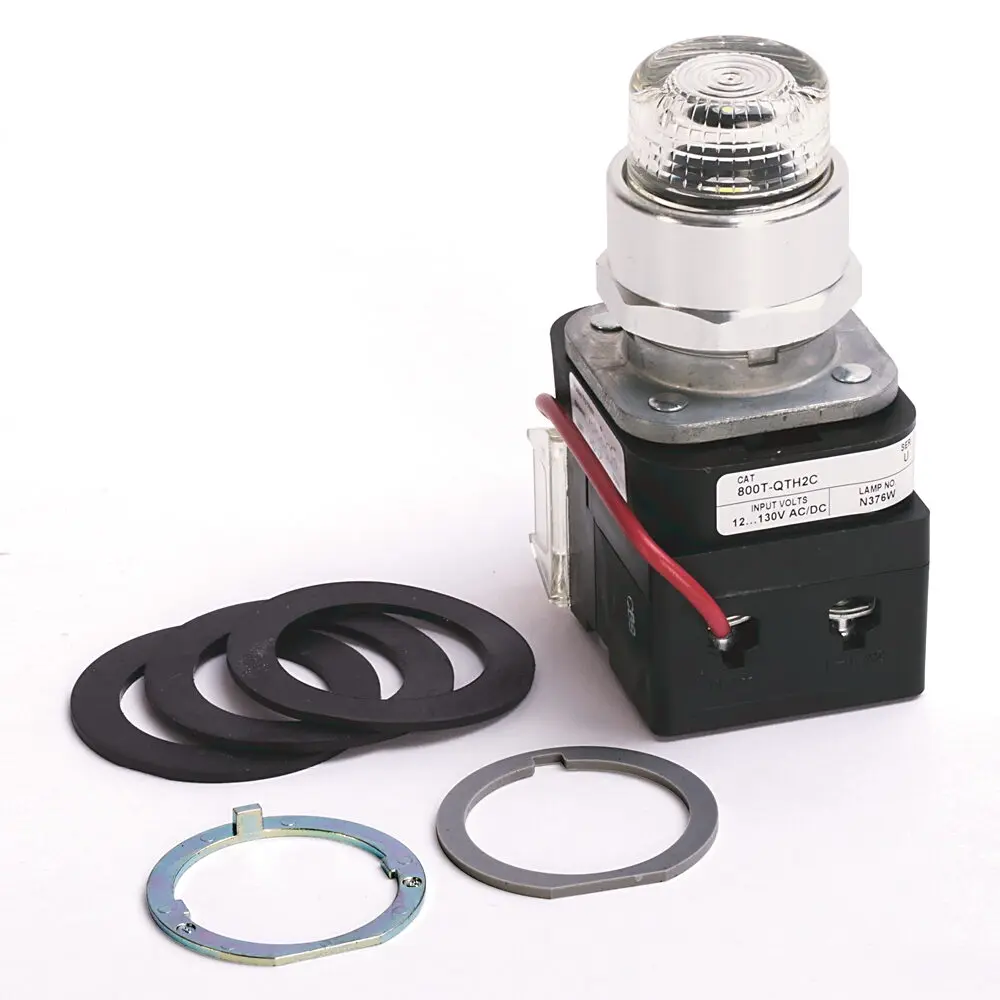

Allen-Bradley 800T PB,30 mm Pilot Light,Full Voltage Type,Push to Test…
