Allen-Bradley 800T-QCL424AGRW — Pilot Lights
Allen-Bradley 800T-QCL424AGRW - Pilot Lights - Operating Temperature: -25 °C; Storage Temperature: -40 °C; Type: 30mm Pilot Light.
In our catalog, the 800T-QCL424AGRW from Allen-Bradley is listed under the Pilot Lights category. The manufacturer's published data for this part number specifies Operating Temperature: -25 °C and Storage Temperature: -40 °C.
Published specifications for this part include Type: 30mm Pilot Light; Number of indicator lights: 4; Shock: 100 G (no damage); Vibration: 10 G maximum; Humidity: 50 %; Type of electric connection: Screw connection; Operator Type: Pilot light, cluster type; Enclosure compatibility (NEMA type): 1, 4, 12, 13; Hazardous location rating: Class I, div. 2; Hole diameter: 30.5 mm; Illumination lamp type: LED; Illumination module input voltage: 24V AC/DC. See the Specifications tab on this page for the full technical table.
| Enclosure compatibility (NEMA type) | 1, 4, 12, 13 |
|---|---|
| Estimated Lead Time | 21 days |
| Hazardous location rating | Class I, div. 2 |
| Hole diameter | 30.5 mm |
| Humidity | 50 % |
| Illumination lamp type | LED |
| Illumination module input voltage | 24V AC/DC |
| Illumination module termination tightening torque | 6 - 8 in-lb / 0.7 - 0.9 N-m |
| Illumination module termination wire range | 14 - 18 AWG (x2) |
| Illumination module type | Full voltage |
| Number of indicator lights | 4 |
| Operating Temperature | -25 °C |
| Operator cap 1 color | Amber |
| Operator cap 2 color | Green |
| Operator cap 3 color | Red |
| Operator cap 4 color | White |
| Operator cap type | Fresnal |
| Operator cap/button material | Plastic |
| Operator cap/button shape | Round |
| Operator construction/material | Metal |
| Operator Type | Pilot light, cluster type |
| Shock | 100 G (no damage) |
| Standard Warranty Duration | 1 year |
| Storage Temperature | -40 °C |
| Suitable for illumination | True |
| Terminations with finger safe covers | False |
| Type | 30mm Pilot Light |
| Type of electric connection | Screw connection |
| UPC | 662074589784 |
| Vibration | 10 G maximum |
Request a quote for this part
Email [email protected] or call (825) 454-5367 for pricing and availability.
Frequently Asked Questions
How do I get pricing for 800T-QCL424AGRW?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email [email protected], and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 800T-QCL424AGRW?
800T-QCL424AGRW is a Allen-Bradley part. KKM Solutions sources Allen-Bradley components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
Is 800T-QCL424AGRW discontinued, and can I still get one?
KKM Solutions does not publish a manufacturer lifecycle status for 800T-QCL424AGRW — check Allen-Bradley's own product page for whether it is current, superseded, or end-of-life. It does not change what we can do: we source current-production, superseded and long-obsolete parts the same way, and where a part is genuinely unavailable we identify a form-fit-function equivalent. Send the part number through the quote form on this page, or use our obsolete part lookup at https://kkmsolutions.com/tools/obsolete-part-lookup/.
What are the key specifications of 800T-QCL424AGRW?
Key specifications include Enclosure compatibility (NEMA type): 1, 4, 12, 13; Estimated Lead Time: 21 days; Hazardous location rating: Class I, div. 2; Hole diameter: 30.5 mm. The full specification table on this page lists every published attribute for this part.
How quickly can 800T-QCL424AGRW ship?
In-stock items are dispatched the same business day for orders placed by 11 AM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Variants & Related Part Numbers
Other Allen-Bradley part numbers in this family:
- 800T-QCL424 — Allen-Bradley 800T-QCL424 800T PB,30mm Pilot Light,4 Unit Cluster Pilot Light,Standard Unit (Position…
- 800T-QCL424GARW — 800T PB,30mm Pilot Light,4 Unit Cluster Pilot Light,Green (Position 1),24V AC/DC,Amber (Position…
- 800T-QCL424GGRR — 800T PB,30mm Pilot Light,4 Unit Cluster Pilot Light,Green (Position 1),24V AC/DC,Green (Position…
- 800T-QCL424GRRG — Allen-Bradley 800T-QCL424GRRG 800T PB,30mm Pilot Light,4 Unit Cluster Pilot Light,Green (Position 1),24V…
- 800T-QCL424RGRG — 800T PB,30mm Pilot Light,4 Unit Cluster Pilot Light,Red (Position 1),24V AC/DC,Green (Position…
- 800T-QCL424WAGG — Allen-Bradley 800T-QCL424WAGG 800T PB,30mm Pilot Light,4 Unit Cluster Pilot Light,White (Position 1),24V…
Related Products

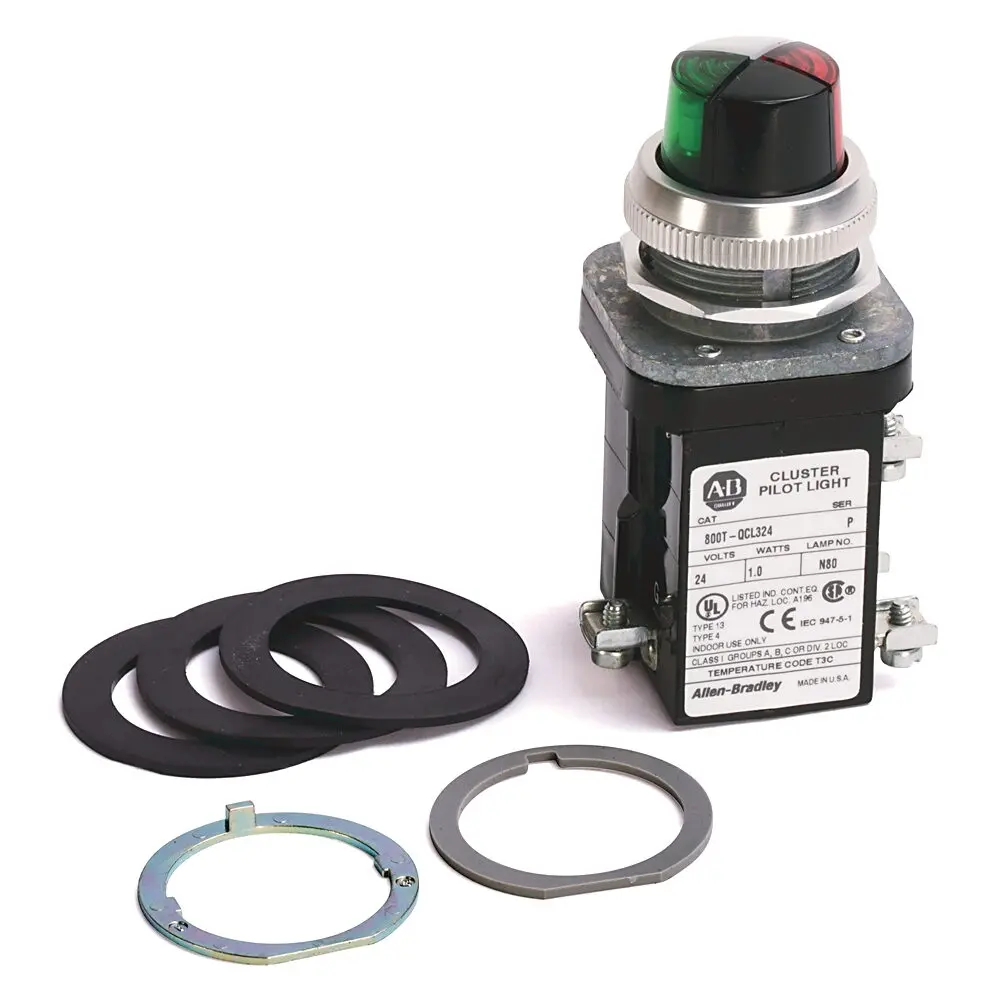

Allen-Bradley 800T PB,30mm Pilot Light,2 Unit Cluster Pilot Light,No Color…
